Industrial Ethernet Switch with 8 TP ports and 1 fiber port for Integrating Networks

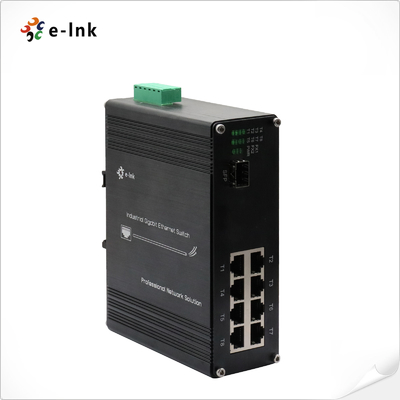

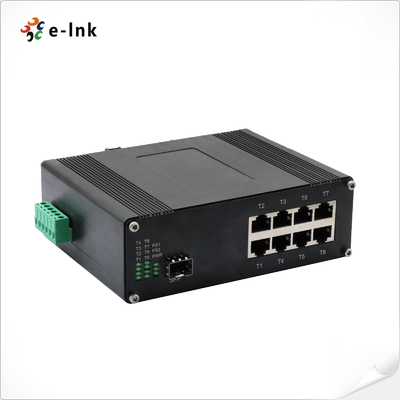

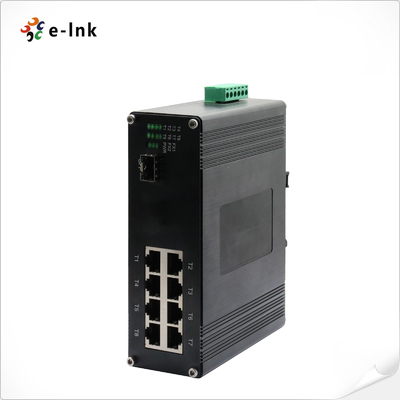

Large Image : Industrial Ethernet Switch with 8 TP ports and 1 fiber port for Integrating Networks

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC108

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Ethernet Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Connector:	8 X RJ45	Optical Port:	1 X 100Base-FX (SFP, SC, FC, ST Optional)
Ethernet Port:	RJ45 Port 1 ~ Port 8	Operating Temperature:	-40°C To 80°C (-40°F To 176°F)
Dimensions (WxDxH):	150 X 115 X 50 Mm	Weight:	0.6Kg
Casing:	Metal Case	Mounting Options:	DIN-Rail / Wall-mount
Highlight:	Fiber Port Industrial Ethernet Switch , Integrating Networks Industrial Ethernet Switch , 8 TP ports Industrial Ethernet Switch

Industrial 8-Port 10/100Base-TX + 1-Port 100BASE-FX Ethernet Switch

Overview
The LNK-IMC108 is an industrial-grade 8-port Fast Ethernet switch featuring 8×10/100Base-TX
copper ports and 1×100Base-FX fiber port, designed for reliable network connectivity in harsh
environments. The RJ45 ports support 10/100Mbps auto-negotiation, full/half-duplex operation, and
auto MDI/MDI-X crossover, ensuring plug-and-play installation. The 100Base-FX fiber port accommodates
both single-mode and multi-mode fiber (1 or 2 core), enabling stable long-distance transmission up to 2km
(multi-mode) or 20km/40km (single-mode).
Built for industrial applications, this rugged switch operates reliably in wide temperature ranges and features
a fanless, robust metal housing with high EMI protection. Its compact yet durable design makes it ideal for
surveillance systems (IP cameras), wireless networks (APs), factory automation, and other mission-critical
networking deployments where distance extension and noise immunity are required.
With easy DIN-rail mounting, low power consumption, and fiber-optic noise immunity, the LNK-IMC108 provides
a cost-effective and future-proof solution for industrial Ethernet networks.
Features

► SFP, SC, FC, ST Optional

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Redundant Power Inputs

► Supports Wall-mount and DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

► 8 10/100Base-TX + 1 100Base-FX

► 10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

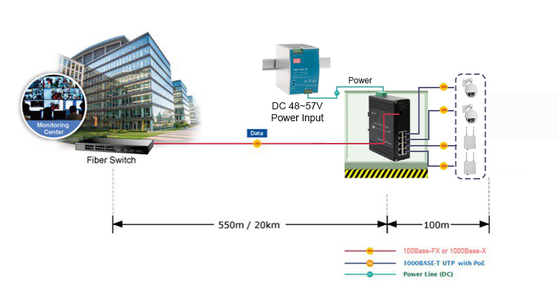

Application
Industrial Ethernet Switch with 8 TP ports and 1 fiber port for Integrating Networks 0

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3x Flow Control
Forward & Filtering Rate:	14,880pps (10Mbps)
Forward & Filtering Rate:	148,800pps (100Mbps)
Packet Buffer Memory:	512K bits
Processing Type:	Store-and-Forward
Address Table Size:	1024 MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	1 x 100Base-FX (SFP, SC, FC, ST Optional)
Ethernet Port	RJ45 Port 1 ~ Port 8
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~58VDC , Redundant Power (6-pin Terminal Block)
Power Consumption:	5W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
Ethernet (Per Port):	Link/Activity
Fiber:	FX1
Dimensions (WxDxH):	150 x 115 x 50 mm
Weight:	0.6Kg
Casing:	Metal Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC108	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Multimode, Dual Fiber, SC, 2KM
LNK-IMC108-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC108S-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC108F-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC108-SFP	Industrial 8-port 10/100BASE-T + 1-port 100BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
