Mini Industrial 2-Port 90W PoE + 2-Port SFP Ethernet DIN Rail Type Hardened Grade 90W PoE Switch

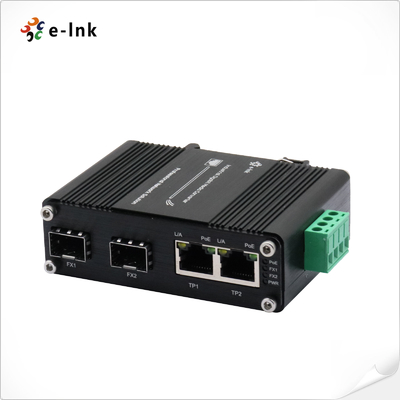

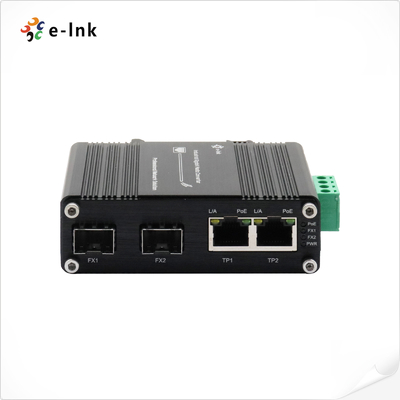

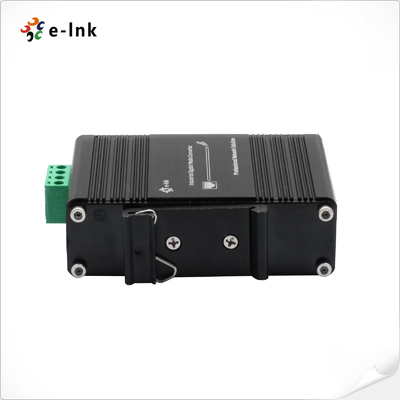

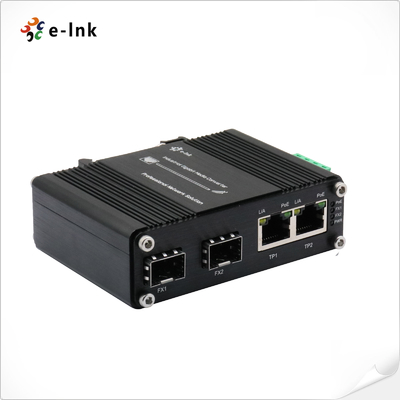

Large Image : Mini Industrial 2-Port 90W PoE + 2-Port SFP Ethernet DIN Rail Type Hardened Grade 90W PoE Switch

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC202GP90-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	To be negotiated
Packaging Details:	Industrial Ethernet POE Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Connector:	2 X RJ45	Optical Port:	2 X SFP 1000Base-X Or 100Base-FX (auto Detection)
Input Power:	48~57VDC, 4-pin Terminal Block	Power Consumption:	189W Max.
Dimensions (WxDxH):	95 X 70 X 30 Mm	Weight:	0.25Kg
Casing:	Aluminum Case	Mounting Options:	DIN-Rail / Wall-mount
Highlight:	2 port SFP PoE Switch , 90W PoE Ethernet DIN Rail Switch , 2 Port PoE Switch

Mini Industrial 2-Port 10/100/1000T 802.3bt 90W PoE + 2-Port 100/1000Base-X SFP Ethernet Switch
Overview
The LNK-IMC202GP90-SFP Series is an industrial-grade DIN rail-mounted PoE++ switch that delivers
ultra-high-power 90W PoE (IEEE 802.3bt) per port, making it ideal for demanding applications such as
PTZ cameras, high-performance wireless access points, and industrial IoT devices. Featuring two
10/100/1000BASE-T ports with 90W PoE++ support and one 100/1000BASE-X SFP slot, it provides
versatile connectivity for both copper and fiber networks.
Designed for extreme environments, this rugged switch operates in a wide temperature range of -40°C
to +80°C and complies with EN55022 EMI standards, ensuring reliable performance in harsh industrial
settings. The SFP slot accommodates various fiber modules (single-mode/multi-mode, 1/2 core), enabling
flexible long-distance or high-bandwidth deployments.
With its high-power PoE++ capability, robust DIN rail design, and support for both half/full-duplex modes,
the LNK-IMC202GP90-SFP is an excellent choice for industrial automation, smart surveillance, and outdoor
networking applications where high power and reliability are critical.
Features

► Supports IEEE802.3af/at PoE+ (30W) or IEEE802.3bt PoE++ (90W)

► Supports Link Fault Pass Through

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 48~57VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 80°C(-40°F to 176°F) operating temperature

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
Application
Mini Industrial 2-Port 90W PoE + 2-Port SFP Ethernet DIN Rail Type Hardened Grade 90W PoE Switch 0

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
	IEEE802.3bt Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Connector:	2 x RJ45
Optical Port:	2 x SFP 1000Base-X or 100Base-FX (auto detection)
Electrical and Mechanical
Input Power:	48~57VDC, 4-pin terminal block
Power Consumption:	189W Max.
LED Indicators:
PoE:	PD Plug Status
PWR:	Power Status
RJ45:	LINK/Activity
SFP:	LINK
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC202GP90-SFP	Mini Industrial 2-Port 10/100/1000T 802.3bt 90W PoE + 2-Port 100/1000Base-X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
