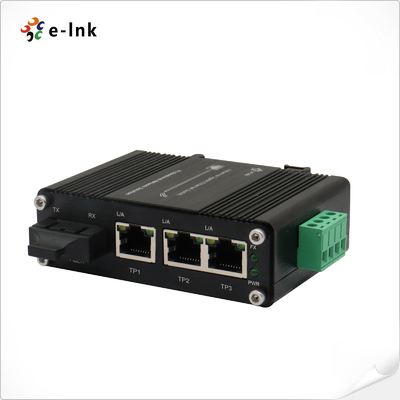

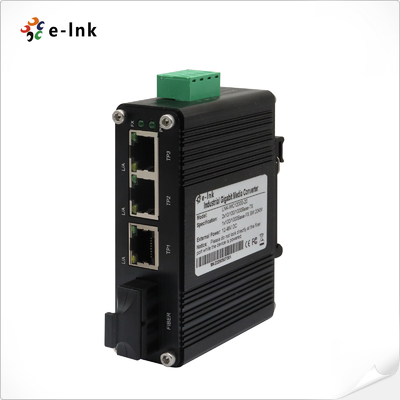

Mini Industrial three 10/100/1000BASE-T Copper Ports and one 1000BASE-X SC Fiber Port Gigabit Ethernet Switch

Large Image : Mini Industrial three 10/100/1000BASE-T Copper Ports and one 1000BASE-X SC Fiber Port Gigabit Ethernet Switch

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, FCC, RoHS
Model Number:	LNK-IMC103G Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiate
Packaging Details:	Industrial Fiber Ethernet Switch Standard Export Package
Delivery Time:	7 working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram
Supply Ability:	2000 pcs/per month

Contact Now

Detailed Product Description

Connector:	3 X RJ45	Optical Port:	1 X SC 1000Base-X
Input Power:	12~48VDC, 2-pin Terminal Block	Dimensions (WxDxH):	95 X 70 X 30 Mm
Weight:	0.25Kg	Casing:	Aluminum Case

Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch
Overview
The LNK-IMC103G Series is a rugged industrial-grade Gigabit Ethernet switch that combines
copper and fiber connectivity in a compact, hardened design. Featuring 3× 10/100/1000BASE-T
ports and 1× 1000BASE-X SC fiber port, this reliable switch is built to withstand extreme
environmental conditions while delivering stable network performance.
Key Features & Benefits:
✔ Hybrid Media Connectivity:
- 3× auto-negotiating Gigabit copper ports (half/full duplex)
- 1× SC fiber port for noise-immune long-distance links (supports single/multi-mode)
✔ Industrial-Rugged Design:
- -40°C to +75°C operating temperature range
- IP40-rated metal housing
- Vibration and shock resistant construction
✔ Simplified Deployment:
- Plug-and-play operation
- DIN-rail or wall mounting options
- Wide voltage input (12-48VDC)
Ideal Applications:
• Industrial automation networks
• Outdoor surveillance systems
• Transportation infrastructure
• Harsh environment wireless deployments
With its compact form factor and industrial-grade reliability, the LNK-IMC103G Series provides
a cost-effective solution for extending network connectivity in challenging environments. The
switch's combination of copper access and fiber uplink makes it particularly suitable for applications
requiring both local device connections and long-distance backbone links.
Certifications: CE, FCC, RoHS compliant | 100% burn-in tested
Features

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 12~48VDC Terminal Block Power Input

► IP40 Aluminum Case

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature

► 3-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1-port 1000Base-X SC Fiber

► Supports Full/Half-duplex, Auto-negotiation

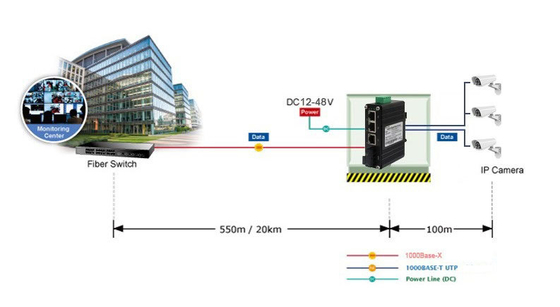

Application
Mini Industrial three 10/100/1000BASE-T Copper Ports and one 1000BASE-X SC Fiber Port Gigabit Ethernet Switch 0

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	4 Mbit
Switch Fabric:	12Gbps
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Connector:	3 x RJ45
Optical Port:	1 x SC 1000Base-X
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	5W Max.
LED Indicators:
PWR:	Power Status
L/A:	Ethernet LINK Status
FX:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC103G	Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m
LNK-IMC103G-20	Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km
LNK-IMC103GS-20A	Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km
LNK-IMC103GS-20B	Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km

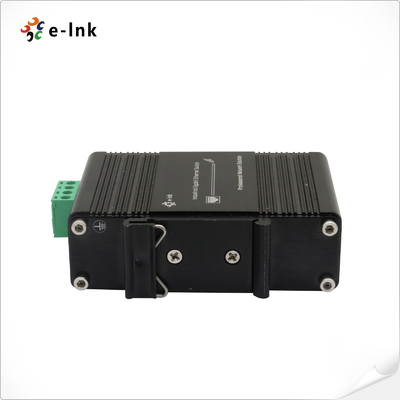

Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
