LNK-HF201KM KVM HDMI 2.0 Fiber Extender with USB for 4K Video Transmission

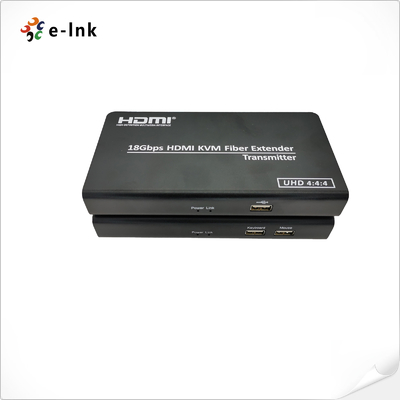

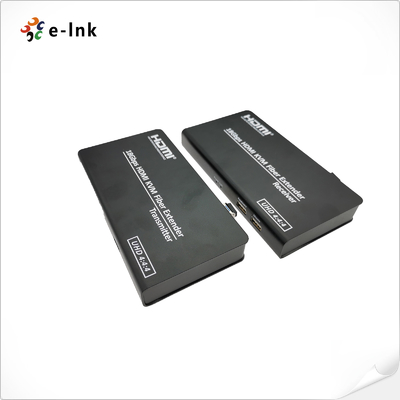

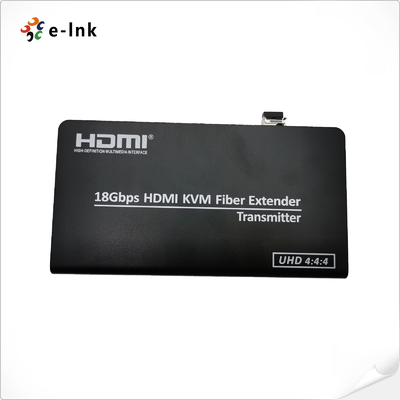

Large Image : LNK-HF201KM KVM HDMI 2.0 Fiber Extender with USB for 4K Video Transmission

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC
Model Number:	LNK-HF201KM

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiated
Packaging Details:	HDMI Fiber Optic Extender Standard Export Package
Delivery Time:	3-10 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Standards:	HDMI 2.0 And HDCP 2.2	Connector:	Female HDMI Type A
Power Dissipation:	MAX 5W	Dimensions (WxDxH):	163 X 86 X 24(mm)
Weight:	1.47KG	Power Supply:	DC 5V

4K HDMI 2.0 KVM USB over Fiber Optic Extender

Overview

The LNK-HF201KM KVM HDMI 2.0 Fiber Extender enables ultra-high-definition video and

USB keyboard/mouse control over long distances via fiber optic cable. It supports 4K HDMI resolution

for clear, stable image transmission without compression. The extender consists of a transmitter

and receiver, connected via single-mode fiber for up to 10 km or OM3 multimode fiber for 300 meters,

making it ideal for control rooms, conference systems, broadcasting, and industrial applications.

Features

► Transmits 4K HDMI2.0 video signals up to 10km over SMF, 300 meters over OM3 MMF

► Support keyboard and mouse signal transmission

► Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4 8-bit

► Supports HDCP 2.2

► Local module connectors: HDMI input, USB input (type B-female) for keyboard / mouse,

fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)

► Remote module connectors: HDMI output for remote display, 2 USB outputs (keyboard / mouse),

fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)

► Simple to install, plug and play

Technical Indexes

Parameter		Description
Video	Standards	HDMI 2.0 and HDCP 2.2
	Maximum pixel clock	600MHz
	Maximum data rate	18Gbps
	Resolution range	800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160P, 4096 x 2160P
	Connector	Female HDMI type A
	Impedance	100Ω
K/M	Interface	PC: MINI-USB Keyboard And Mouse: USB-A
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode or Multimode
	Wavelength	Single-mode 1310nm, Multimode 850nm
	Interface bandwidth	18Gbps
	Transmission distance	OM3 Multimode fiber: 300M Single mode fiber: 10KM
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 5W
	Temperature	Operating: -10℃ ~ +55℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	163 x 86 x 24(mm)
	Gross weight	1.471KG
	The warranty	1 year free warranty

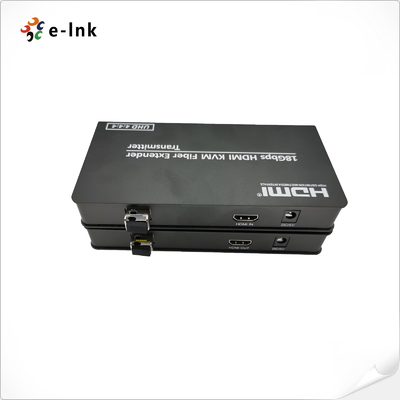

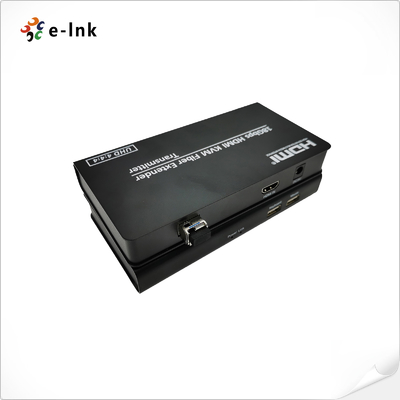

Panel & Interface

Ordering Information

Model	Description
LNK-HF201KM-M	4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3 Multimode Fiber, 300 meters
LNK-HF201KM-10	4K HDMI 2.0 KVM USB over Fiber Optic Extender, Single-mode Fiber, 10km
