Outdoor Industrial PoE Switch With 1 Port 100/1000x SFP Fiber 12~48VDC Input and Voltage Booster

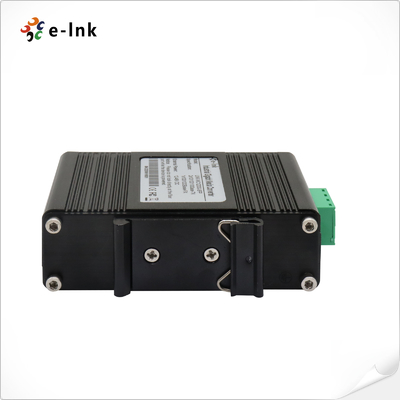

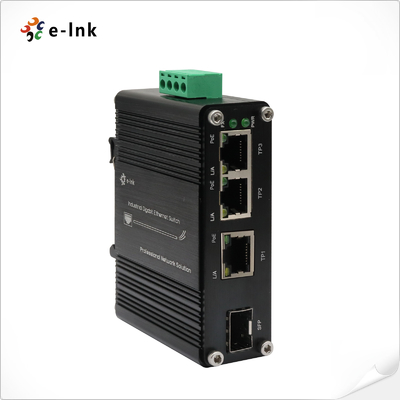

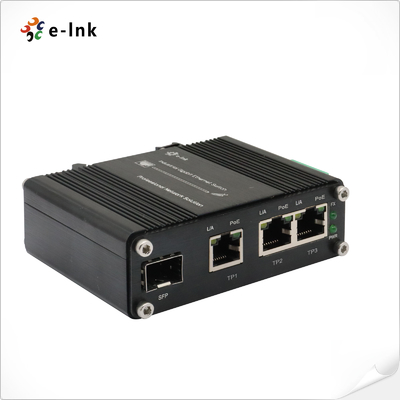

Large Image : Outdoor Industrial PoE Switch With 1 Port 100/1000x SFP Fiber 12~48VDC Input and Voltage Booster

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, FCC, RoHS
Model Number:	LNK-IMC103GP-SFP Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiate
Packaging Details:	Industrial Gigabit PoE Switch Standard Export Package
Delivery Time:	7 working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram
Supply Ability:	2000 pcs/per month

Contact Now

Detailed Product Description

Connector:	3 X RJ45 With 802.3at PoE+ Injector Function (Ports 1 To 3)	Optical Port:	1 X SFP 1000Base-X Or 100Base-FX (auto Detection)
Port:	RJ45	Power Pin Assignment:	4/5(+), 7/8(-)
Dimensions (WxDxH):	95 X 70 X 30 Mm	Weight:	0.3Kg

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster
Overview
The LNK-IMC103GP-SFP Series is a compact industrial-grade unmanaged PoE+ switch designed for
harsh environment deployments. Featuring 3× 10/100/1000Base-T PoE+ ports (IEEE 802.3at, 30W/port)
and 1× 100/1000Base-X SFP slot, this rugged switch delivers flexible power and connectivity in extreme
conditions.
Key Features & Benefits:
✔ Industrial PoE+ Power:
- 3× Gigabit PoE+ ports (up to 30W each) for IP cameras/WAPs
- Wide 12-48VDC input with voltage booster
- Ideal for solar/wind-powered and mobile applications
✔ Flexible Fiber Connectivity:
- 1× SFP slot supports 100M/1G multimode/single-mode optics
- Enables both short-range and long-distance fiber links
✔ Hardened Design:
- -40°C to +75°C operating temperature range
- Vibration/shock resistant (IEC 60068-2-27/6)
- Metal housing with IP30 protection
✔ Reliable Performance:
- CE/FCC certified
- 100% burn-in tested
- Plug-and-play operation
Ideal Applications:
• Solar-powered surveillance systems
• Mobile/transportation networks
• Remote industrial monitoring
• Harsh environment wireless deployments
With its compact size, PoE+ capability and SFP flexibility, the LNK-IMC103GP-SFP Series provides a
cost-effective, maintenance-free solution for edge networks. The switch's wide voltage input and
industrial hardening make it perfect for off-grid and challenging installations where reliability is
paramount.
Features

► Up to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature

► 3 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1

to Port-3)

► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► 12~48VDC wide range power input with power booster function

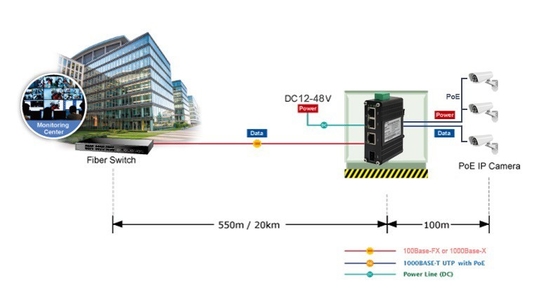

Application
Outdoor Industrial PoE Switch With 1 Port 100/1000x SFP Fiber 12~48VDC Input and Voltage Booster 0

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	4 Mbit
Switch Fabric:	12Gbps
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Connector:	3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3)
Optical Port:	1 x SFP 1000Base-X or 100Base-FX (auto detection)
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
Standard:	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	<95W (Non-PoE<6W)
LED Indicators:
PWR:	Power Status
L/A:	Ethernet LINK Status
FX:	Fiber LINK Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.3Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC103GP-SFP	Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 12~48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
