Industrial 24 TP Ports and 4 Fiber Ports SFP Managed Ethernet Switch for Integrating Networks

Industrial L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch

Overview

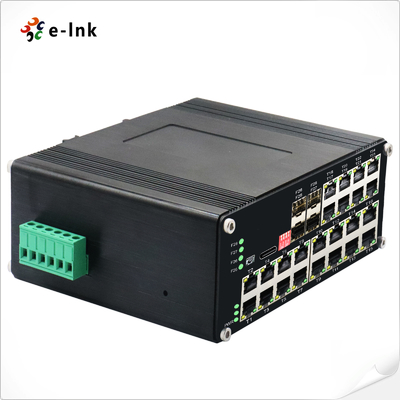

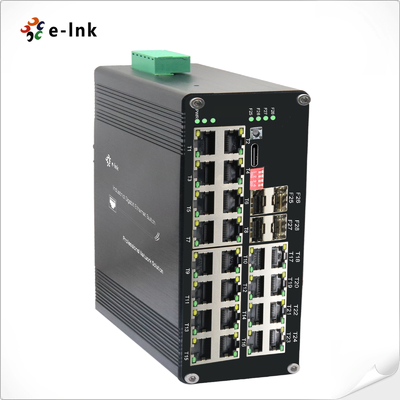

The ETH-DIMC2424MP Series is an industrial-grade L2+ managed PoE+ Ethernet switch that

combines high-density power delivery with robust networking capabilities. Featuring 24× Gigabit

PoE+ ports (IEEE 802.3at, 30W per port) and 4× 1000Base-X SFP fiber uplinks, this hardened

switch is engineered for mission-critical deployments in harsh environments.

Key Features & Benefits:
✔ High-Power PoE+ Design: 24× 10/100/1000Base-T(X) ports deliver up to 30W per port, supporting

power-hungry devices like PTZ cameras and wireless APs.
✔ Dual Media Connectivity: 4× SFP slots (single/multi-mode, 1/2 core) enable long-distance fiber

backbone links.
✔ Industrial Reliability: Operates in extreme temperatures (-40°C to +75°C) with surge protection and

vibration resistance.
✔Advanced L2+ Management: VLAN, QoS, IGMP snooping, and port mirroring for optimized traffic control.
✔ Plug-and-Play Simplicity: Auto MDI/MDI-X and auto-negotiation simplify installation.

Typical Applications:
• Large-scale IP surveillance systems (powering 24+ cameras)
• Industrial IoT networks with mixed copper/fiber topologies
• Outdoor wireless mesh networks requiring PoE and fiber backhaul
• Smart city infrastructure (traffic control, street lighting)

With its unmatched 720W total PoE budget and carrier-grade durability, the ETH-DIMC2424MP Series is

the ultimate solution for deploying high-power networked devices in challenging environments. Its modular

fiber options future-proof your network while the hardened design ensures 24/7 operation where standard

switches fail.

Features

► Support connecting USB-C port for easy management, without the need to access the RS232 serial

port at all

► 10K Bytes Jumbo Frame

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

► Support 24x10/100/1000Base-T + 4x1000Base-X SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► IEEE802.3af/at compliant

► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network

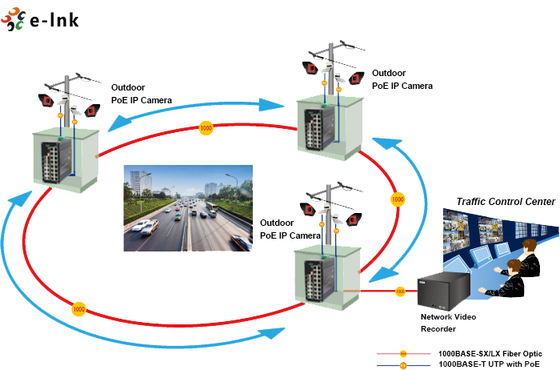

Application

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3p QoS
	IEEE802.1d Spanning Tree
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	12M bits
Processing Type:	Store-and-Forward
Backplane bandwidth	110Gbps
Max Packet Length:	10K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Interface
Connector:	24 x RJ45
RS485:	1 x RS485 (Optional)
Optical Port:	4 x 1000Base-X SFP
USB-C:	1 x USB-C (for Management)
RS485 Serial Interface (Optional)
Physical interface	Industrial standard 3-pin screw terminal
Data type	1Ch RS485 Bi-Direction
RS-485 signals	Data+, Data-, GND
Serial port line distance (copper)	1000 meters
Baud rate	0 ~ 800kbps
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 720-watt PoE budget
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical

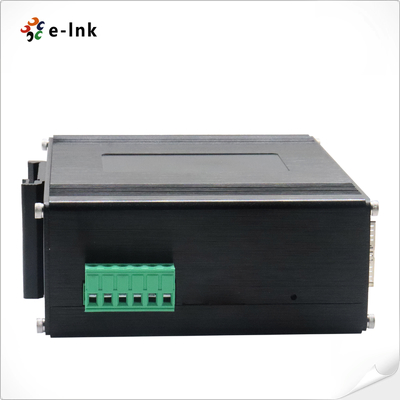

Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max.(PoE in Use<720W)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
DIP Switch
4-digit DIP switch function	DIP	Function	Settings
	SW 1	VLAN	ON - Enabled	OFF - Disabled
	SW 2	Ring Management	ON - Enabled	OFF - Disabled
	SW 3 (to be upgraded)	250m PoE Network	ON - Enabled	OFF - Disabled
	SW 4 (to be upgraded)	PoE Reset	ON - Enabled	OFF - Disabled
LED Indicators:
Power:	Power Status
Ethernet (Per Port):	Link/Activity
PoE	PoE Status (T1~T24)
Fiber:	Gigabit SFP Port: F25~F28
Dimensions (WxDxH):	155 x 115 x 85 mm
Weight:	1.2KG
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Software Features
Redundancy Protocols	Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
Multicast Support	Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
VLAN	Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,
Time Management	SNTP
QOS	Flow-based redirection Flow-based rate limiting Flow-based packet filtering 8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS, Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR)
ACL	Port-based Issuing ACL ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
PoE Management	Total power limit of PoE power supply PoE output power allocation PoE output priority configuration PoE working status Scheduling of PoE operation
Diagnostic Maintenance	Support port mirroring, Syslog, Ping
Management Function	Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT
Alarm Management	Support 1 way relay alarm output, RMON, TRAP
Security	Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0 Support DHCP Snooping, Option 82,802.1X security access, Support user hierarchical management, ACL access control list, Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
Advance Layer 2+ Features	IPv4/IPv6 Management Static Route
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
