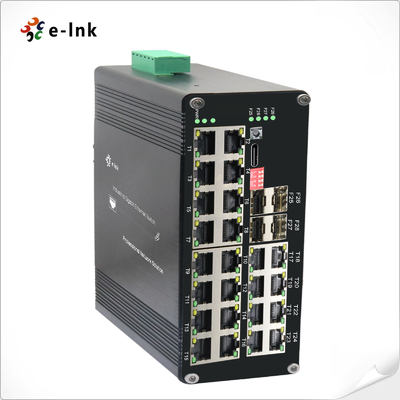

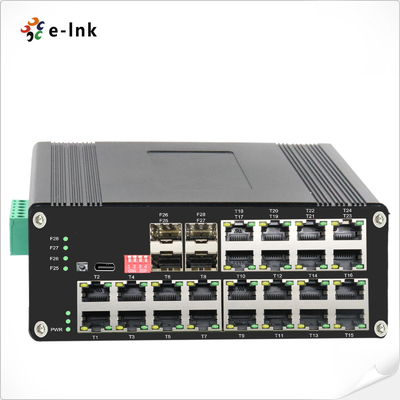

Industrial Managed SFP 24 TP Ports and 4 Fiber Ports Ethernet Switch for Integrating Networks

Industrial L2+ 24-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch

Overview

The ETH-DIMC2424M Series is an industrial-grade L2+ managed Ethernet switch designed for

high-density network deployments in demanding environments. Featuring 24× 10/100/1000Base-T(X)

copper ports and 4× 1000Base-X SFP fiber slots, this rugged switch delivers exceptional connectivity

and performance for industrial applications.

Key Features:
- High port density: 24× auto-negotiating Gigabit Ethernet ports with Full/Half duplex and auto

MDI/MDI-X support
- Flexible fiber uplinks: 4× SFP slots compatible with single-mode/multi-mode (1/2 core) modules
- Advanced L2+ management: Comprehensive features including VLAN, QoS, security, and network

monitoring
- Industrial durability: Designed for reliable operation in extreme conditions (-40°C to +75°C)

Ideal Applications:
✓ Large-scale industrial automation systems
✓ High-density IP surveillance networks
✓ Enterprise wireless access point deployments
✓ Remote site connectivity with fiber backhaul
✓ Mission-critical infrastructure requiring hardened equipment

With its combination of high port count and fiber connectivity, the ETH-DIMC2424M Series provides a

scalable solution for networks requiring both copper access and fiber backbone capabilities. The

switch's industrial-grade construction ensures reliable performance in harsh environments, while its

advanced management features enable precise network control and optimization. This makes it

particularly suitable for applications where network reliability, scalability, and remote management

are critical requirements.

Features

► 10K Bytes Jumbo Frame

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

      ►-40°C to 80°C (-40°F to 176°F) operating

► Support 24x10/100/1000Base-T + 4x1000Base-X SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Support connecting USB-C port for easy management, without the need to access the RS232

serial port at all

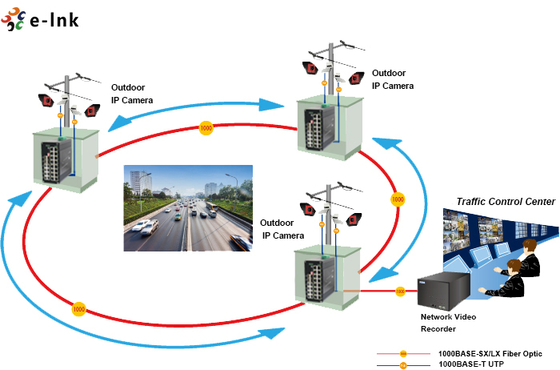

Application

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3p QoS
	IEEE802.1d Spanning Tree
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	12M bits
Processing Type:	Store-and-Forward
Backplane bandwidth	110Gbps
Max Packet Length:	10K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Interface
Connector:	24 x RJ45
RS485:	1 x RS485 (Optional)
Optical Port:	4 x 1000Base-X SFP
USB-C:	1 x USB-C (for Management)
RS485 Serial Interface (Optional)
Physical interface	Industrial standard 3-pin screw terminal
Data type	1Ch RS485 Bi-Direction
RS-485 signals	Data+, Data-, GND
Serial port line distance (copper)	1000 meters
Baud rate	0 ~ 800kbps
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical

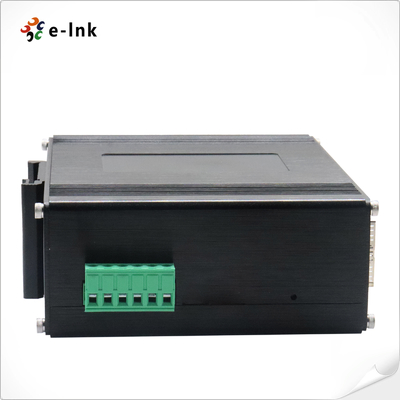

Input Power:	12~48VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
DIP Switch
4-digit DIP switch function	DIP	Function	Settings
	SW 1	VLAN	ON - Enabled	OFF - Disabled
	SW 2	Ring Management	ON - Enabled	OFF - Disabled
	SW 3	Reserved	ON - Reserved	OFF - Reserved
	SW 4	Reserved	ON - Reserved	OFF - Reserved
LED Indicators:
PWR:	Power Status
Ethernet (Per Port):	Link/Activity
RJ45 Port	(T1~T24)
Fiber:	Gigabit SFP Port: F25~F28
Dimensions (WxDxH):	155 x 115 x 85 mm
Weight:	1.2KG
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Software Features
Redundancy Protocols	Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
Multicast Support	Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
VLAN	Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,
Time Management	SNTP
QOS	Flow-based redirection Flow-based rate limiting Flow-based packet filtering 8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS, Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR)
ACL	Port-based Issuing ACL ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
Diagnostic Maintenance	Support port mirroring, Syslog, Ping
Management Function	Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT
Alarm Management	Support 1 way relay alarm output, RMON, TRAP
Security	Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0 Support DHCP Snooping, Option 82,802.1X security access, Support user hierarchical management, ACL access control list, Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
Advance Layer 2+ Features	IPv4/IPv6 Management Static Route
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
