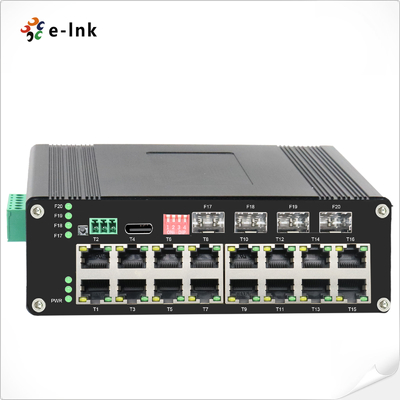

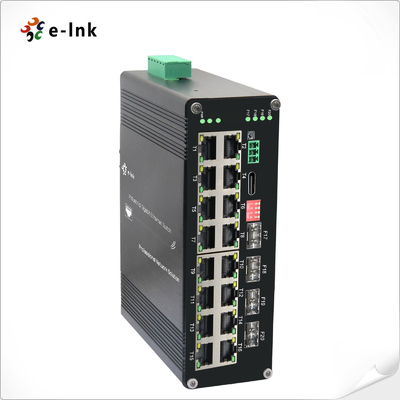

Managed Industrial Hardened Ethernet Switch with PoE for IP Cameras And Wireless Access points

Industrial L2+ 16-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch

Overview

The ETH-DIMC2416MP Series is an industrial-grade L2+ managed PoE+ Ethernet switch designed for

demanding networking environments. This high-performance switch combines 16× Gigabit PoE+ ports

(IEEE 802.3at, 30W per port) with 4× 1000Base-X SFP fiber slots, delivering both power and

connectivity in a single hardened device.

Key Features:
- High-density PoE+ configuration: 16× 10/100/1000Base-T(X) ports with auto-negotiation, Full/Half

duplex, and auto MDI/MDI-X
- Flexible fiber connectivity: 4× SFP slots supporting single-mode/multi-mode (1/2 core) modules
- Advanced L2+ management: Comprehensive VLAN, QoS, security, and monitoring capabilities
- Industrial reliability: Operates in extreme temperatures (-40°C to +75°C) with robust EMI protection

Ideal Applications:
✓ Large-scale IP surveillance systems (supporting multiple high-power cameras)
✓ Wireless network deployments (powering multiple access points)
✓ Industrial automation networks
✓ Remote site connectivity with long-distance fiber backhaul
✓ Harsh environment installations

With its high PoE budget and fiber uplink capacity, the ETH-DIMC2416MP Series provides a complete

networking solution for powering and connecting multiple devices while ensuring reliable data

transmission. The switch's industrial-grade construction and advanced management features make it

particularly suitable for mission-critical applications where both power delivery and network reliability

are essential.

Features

► 10K Bytes Jumbo Frame

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

► Support 16x10/100/1000Base-T + 4x1000Base-X SFP +

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► IEEE802.3af/at compliant

► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all

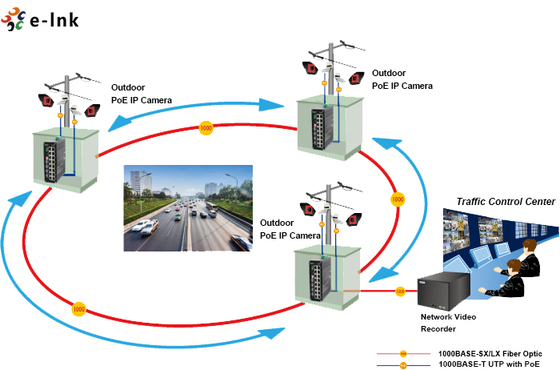

Application

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3p QoS
	IEEE802.1d Spanning Tree
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	12M bits
Processing Type:	Store-and-Forward
Backplane bandwidth	110Gbps
Max Packet Length:	10K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Interface
Connector:	16 x RJ45
RS485:	1 x RS485 (Optional)
Optical Port:	4 x 1000Base-X SFP
USB-C:	1 x USB-C (for Management)
RS485 Serial Interface (Optional)
Physical interface	Industrial standard 3-pin screw terminal
Data type	1Ch RS485 Bi-Direction
RS-485 signals	Data+, Data-, GND
Serial port line distance (copper)	1000 meters
Baud rate	0 ~ 800kbps
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 480-watt PoE budget
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical

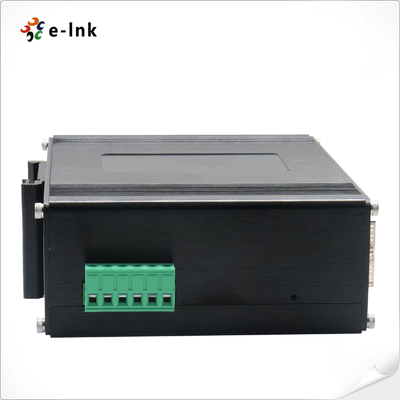

Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max.(PoE in Use<480W)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
DIP Switch
4-digit DIP switch function	DIP	Function	Settings
	SW 1	VLAN	ON - Enabled	OFF - Disabled
	SW 2	Ring Management	ON - Enabled	OFF - Disabled
	SW 3 (to be upgraded)	250m PoE Network	ON - Enabled	OFF - Disabled
	SW 4 (to be upgraded)	PoE Reset	ON - Enabled	OFF - Disabled
LED Indicators:
PWR:	Power Status
Ethernet (Per Port):	Link/Activity
PoE:	PoE Status
Fiber:	Gigabit SFP Port: F17~F20
Dimensions (WxDxH):	155 x 115 x 85 mm
Weight:	1.2Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Software Features
Redundancy Protocols	Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
Multicast Support	Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
VLAN	Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,
Time Management	SNTP
QOS	Flow-based redirection Flow-based rate limiting Flow-based packet filtering 8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS, Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR)
ACL	Port-based Issuing ACL ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
PoE Management	Total power limit of PoE power supply PoE output power allocation PoE output priority configuration PoE working status Scheduling of PoE operation
Diagnostic Maintenance	Support port mirroring, Syslog, Ping
Management Function	Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT
Alarm Management	Support 1 way relay alarm output, RMON, TRAP
Security	Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0 Support DHCP Snooping, Option 82,802.1X security access, Support user hierarchical management, ACL access control list, Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
Advance Layer 2+ Features	IPv4/IPv6 Management Static Route
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
