12~48VDC Power Input Industrial 2-Port Gigabit PoE+ Injector
Industrial Gigabit PoE+ Injector Overview

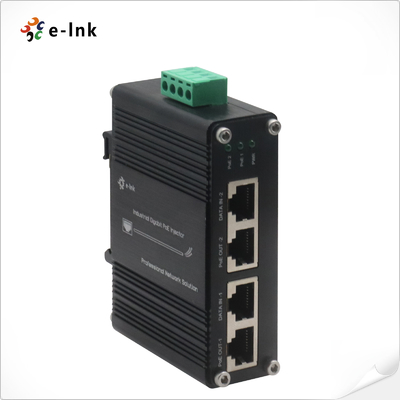

The LNK-INJ302 Hardened Gigabit High-Power PoE Injector delivers robust power and data integration for outdoor and industrial network deployments. This compact 2-port solution enables seamless connectivity between standard non-PoE network switches and IEEE 802.3af/at compliant devices, including high-power access points and pan-tilt-zoom cameras, across distances up to 100 meters. Featuring Gigabit throughput on both data input and powered output interfaces, the injector maintains full compliance with IEEE 802.3ab standards for reliable high-speed data transmission while supporting PoE+ power budgets for demanding connected equipment.
Engineered for challenging environments, the device accepts a wide 12-48V DC input range, ensuring stable operation despite voltage fluctuations in industrial power systems. Its hardened construction provides superior resistance to moisture, dust, and temperature variations, making it suitable for deployment in uncontrolled outdoor locations, manufacturing facilities, and transportation infrastructure. The plug-and-play design requires zero configuration, allowing immediate integration into existing network architectures while eliminating the need for separate power cabling. This cost-effective power sourcing solution is particularly valuable for expanding wireless coverage, surveillance system capabilities, and IoT device networks without requiring infrastructure upgrades.
Industrial Gigabit PoE+ Injector Features
- Wide Voltage Compatibility - Accepts 12-48V DC input range for flexible integration with diverse power sources including industrial power supplies and solar energy systems

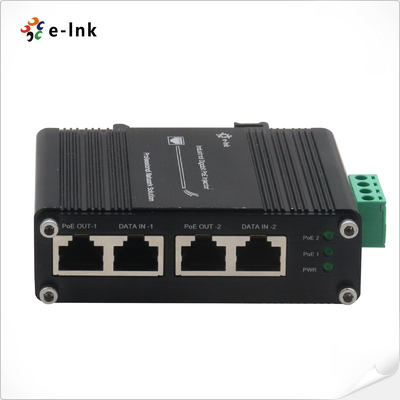

- Dual-Function Port Architecture - Features two independent RJ45 data input interfaces and two high-power PoE output ports for simultaneous data and power transmission
- Advanced PoE+ Power Management - Complies with IEEE 802.3at Power Sourcing Equipment standards, delivering intelligent power negotiation and device recognition
- High-Capacity Power Budget - Provides maximum 60W output on single port with total power distribution not exceeding 60W, supporting energy-intensive devices
- Gigabit Network Performance - Maintains full 10/100/1000Base-TX compatibility ensuring high-speed data transfer without network bottlenecks
- Versatile Mounting Options - Designed for both DIN-rail and wall-mount installation methods, adapting to various industrial and outdoor deployment scenarios
- Comprehensive Status Monitoring - Integrated LED diagnostic indicators display real-time PoE operation status, power activity, and connection integrity
- Extreme Environment Durability - Operates reliably across -40°C to 80°C temperature range with hardened construction for harsh condition deployment
- Intelligent Thermal Management - Incorporates advanced heat dissipation technology maintaining optimal performance during continuous high-power operation
- Surge and Transient Protection - Built-in electrical protection circuits safeguard connected equipment from power anomalies and voltage spikes
Industrial Gigabit PoE+ Injector Technical Indexes
| Ethernet |
| Standards: |
IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet |
| Processing Type: |
Forward |
| Half-duplex, Full-duplex |
| Forward Filter Rate: |
1,488,000pps (1000Mbps) |
| Cabling: |
10/100/1000Base-T: Cat5 or above |
| Maximum Distance: |
Cat5 UTP up to 100m |
| Connector: |
4x RJ45 |
| Environmental |
| Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF: |
>200,000hrs |
| Electrical and Mechanical |
| Input Power: |
12~48VDC (Terminal Block) |
| Power Consumption: |
70W Max. |
| PoE (Power over Ethernet) |
| Standard: |
IEEE802.3af/at |
| Port: |
RJ45 |
| Power Pin Assignment |
4/5(+), 7/8(-) |
| Max. Power per Port: |
60W Max (Alternative B Mode) |
| LED Indicators: |
| Power: |
Power Status |
| PoE: |
PoE Status |
| Dimensions (WxDxH): |
95 x 70 x 30 mm |
| Weight: |
0.26Kg |
| Casing: |
Aluminum Case |
| Mounting Options: |
DIN-Rail / Wall-mount |
| Regulatory Approvals |
| ISO9001 |
| FCC part 15, Class A |
| CE-EN55022:2006+A1: 2007 Class A |
| Surge Protection: |
| RJ45: 1KV |
| Power: 500W |
| ESD: 4KV/8KV |
Industrial Gigabit PoE+ Injector Ordering Information
| Model |
Description |
| LNK-INJ302 |
12~48VDC Power Input Industrial 2 ports Gigabit PoE+ Injector |
| Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► Power Supply is to be purchased separately |
Industrial Gigabit PoE+ Injector Application
- Outdoor Wireless Network Expansion - Provides high-power PoE+ connectivity for outdoor Wi-Fi access points, microwave backhaul systems, and 5G small cells in municipal wireless networks and campus coverage extensions
- Industrial Automation Connectivity - Delivers power and data to motorized PTZ cameras, industrial sensors, and machine vision systems in manufacturing facilities with wide voltage input compatibility
- Transportation Infrastructure Networks - Supports traffic monitoring cameras, variable message signs, and vehicle detection systems along highways and tunnels with extended temperature operation
- Security and Surveillance Systems - Enables deployment of high-power security devices including thermal cameras, multi-sensor surveillance units, and access control systems in perimeter protection applications
- Renewable Energy Site Management - Powers monitoring equipment and communication devices in solar farms and wind power installations using compatible DC power sources
