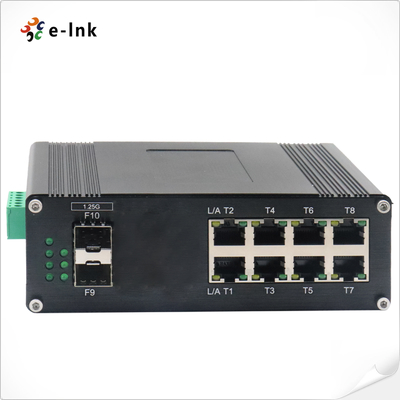

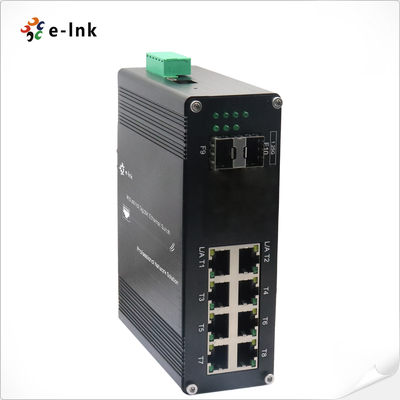

Industrial L2+ 8-Port 10/100/1000T + 2-Port 1000X SFP Managed Ethernet Switch
Overview
The ETH-IMC208M Series is an industrial L2+ managed Ethernet switch designed for robust and
high-performance networking in harsh environments. It features 8× 10/100/1000Base-T(X) copper
ports with auto-negotiation, Full/Half duplex mode, and auto MDI/MDI-X support, along with
2× 1000Base-X SFP slots for flexible fiber connectivity (supporting single-mode or multi-mode,
1/2 core).
Built for reliability, this hardened switch operates seamlessly in demanding conditions, making it ideal
for industrial automation, surveillance (IP cameras), and wireless access point deployments across
remote locations. With advanced L2+ management capabilities, it ensures efficient traffic control,
security, and network optimization while maintaining ease of use.
Key Features:
✔ 8× Gigabit copper + 2× SFP fiber ports for versatile connectivity
✔ Auto-negotiation & MDI/MDI-X for plug-and-play deployment
✔ Industrial-grade reliability (-40°C to +75°C operation)
✔ L2+ managed features (VLAN, QoS, security, etc.)
✔ Ideal for IP cameras, WAPs, and remote networking
A cost-effective, high-performance solution for integrating mixed-media networks in industrial and
outdoor applications.
Features
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
►-40°C to 80°C (-40°F to 176°F) operating
► Support connecting USB-C port for easy management, without the need to access the RS232
serial port at all
► 9K Bytes Jumbo Frame
► Support 8x10/100/1000Base-T + 2x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

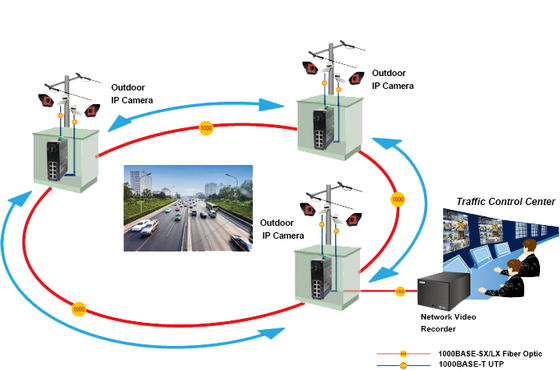

Application
Technical Indexes
| Ethernet |
| Standards: |
IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX |
| IEEE802.3ab 1000BASE-T |
| IEEE802.3z 1000BASE-X |
| IEEE802.3p QoS |
| IEEE802.1d Spanning Tree |
| Forward & Filtering Rate: |
14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer Memory: |
12M bits |
| Processing Type: |
Store-and-Forward |
| Backplane bandwidth |
110Gbps |
| Max Packet Length: |
9K Bytes Jumbo Frame |
| Address Table Size: |
8K MAC Addresses |
| Interface |
| Connector: |
8 x RJ45 |
| RS485: |
1 x RS485 (Optional) |
| Optical Port: |
2 x 1000Base-X SFP |
| USB-C: |
1 x USB-C (for Management) |
| RS485 Serial Interface (Optional) |
| Physical interface |
Industrial standard 3-pin screw terminal |
| Data type |
1Ch RS485 Bi-Direction |
| RS-485 signals |
Data+, Data-, GND |
| Serial port line distance (copper) |
1000 meters |
| Baud rate |
0 ~ 800kbps |
| Environmental |
| Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF |
> 200,000 hrs |
| Electrical and Mechanical |
| Input Power: |
12~48VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: |
8W Max |
| Protection: |
| Power Input Overload: |
Automatic Resettable |
| Reverse Polarity: |
Present |

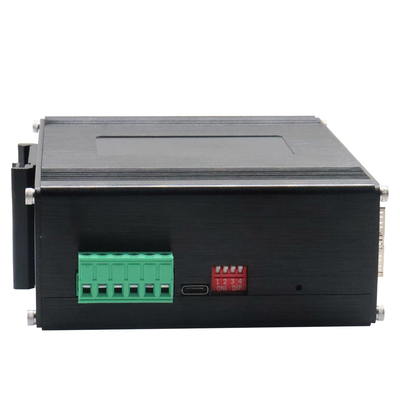

| DIP Switch |
| 4-digit DIP switch function |
DIP |
Function |
Settings |
| SW 1 |
VLAN |
ON - Enabled |
OFF - Disabled |
| SW 2 |
Ring Management |
ON - Enabled |
OFF - Disabled |
| SW 3 |
Reserved |
ON - Reserved |
OFF - Reserved |
| SW 4 |
Reserved |
ON - Reserved |
OFF - Reserved |
| LED Indicators: |
| PWR: |
Power Status |
| Ethernet (Per Port): |
Link/Activity |
| Fiber: |
Gigabit SFP Port: F9~F10 |
| Dimensions (WxDxH): |
149 x 114 x 50 mm |
| Weight: |
0.55Kg |
| Casing: |
Aluminum Case |
| Mounting Options: |
DIN-Rail mount |
| Software Features |
| Redundancy Protocols |
Support STP/RSTP/MSTP/ERPSv2, Link Aggregation |
| Multicast Support |
Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q |
| VLAN |
Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN, |
| Time Management |
SNTP |
| QOS |
Flow-based redirection
Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)
|
| ACL |
Port-based Issuing ACL
ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
|
| Diagnostic Maintenance |
Support port mirroring, Syslog, Ping |
| Management Function |
Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT |
| Alarm Management |
Support 1 way relay alarm output, RMON, TRAP |
| Security |
Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0
Support DHCP Snooping, Option 82,802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
|
| Advance Layer 2+ Features |
IPv4/IPv6 Management
Static Route
|
| Regulatory Approvals |
| ISO9001, CE, RoHS, FCC |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55024:2010 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
| IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
| Model |
Description |
| ETH-IMC208M |
Industrial L2+ 8-Port 10/100/1000T + 2-Port 1000X SFP Managed Ethernet Switch |
| SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options |
► Default DIN-Rail Bracket installed |
| Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block.
|
| ► Power Supply is to be purchased separately. |
