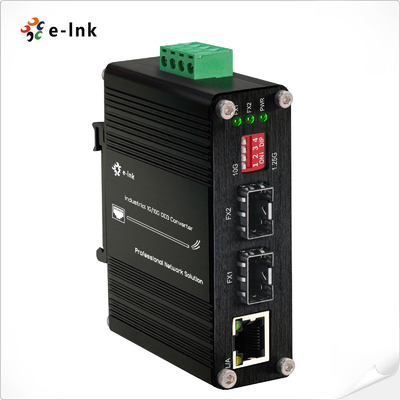

Overview

The ETH-IMC2402-OEO Series represents a high-performance industrial-grade 10G

Optical-Electrical-Optical (OEO) converter designed for mission-critical network infrastructure.

These ruggedized devices serve dual functions as both fiber media converters and long-haul

fiber repeaters, supporting 10Gbps transmission across extreme temperature conditions

(-40°C to +80°C).

Engineered for backbone network applications including SAN, LAN, and MAN environments,

the series delivers versatile protocol support for SDH/SONET STM-64/OC-192, 10G Fiber

Channel, and 10G Ethernet. Its advanced capabilities include optical wavelength conversion

(1310nm/1550nm/CWDM/DWDM) with Loop-back functionality, making it ideal for demanding

installations in R&D laboratories, data centers, and telecommunication facilities.

The converter's flexible architecture also enables 1Gbps fiber-to-copper media conversion with

transmission distances up to 120km, providing comprehensive connectivity solutions. Whether

deployed as a protocol-independent fiber repeater or media converter, the ETH-IMC2402-OEO

Series ensures reliable performance in harsh industrial environments where standard

equipment would fail.

Key Features Highlighted:
1. Dual functionality as both media converter and long-haul repeater
2. Industrial-grade reliability for extreme environments
3. Comprehensive 10G protocol support
4. Advanced wavelength conversion capabilities
5. Extended 120km transmission range
6. Mission-critical application focus
7. Clear differentiation from commercial-grade solutions

Features

► DIP Switch supports 1.25G/10G fiber data rate switching

► Can be as 1G Ethernet Media Converter if using Ethernet

► IP40 Aluminum Case

► Supports DIN-Rail/Wall-Mount installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

► Support hot plugging, full state led display, easy installation

► Support ITUT prescribed DWDM/CWDM wavelength, and can also display it’s DDM function

► Support Loop-back and Jumbo Frame

► Transparent Transport and very low delay

► 3R function (Regeneration, Reshaping, Re-timing)

Application

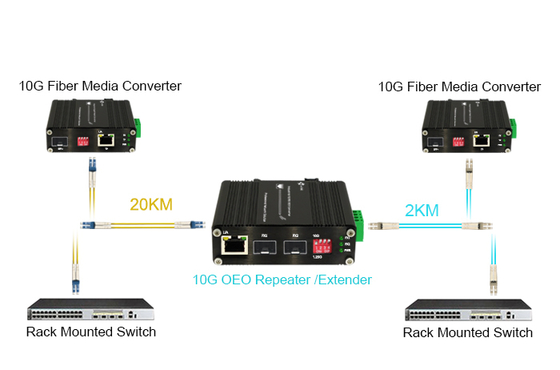

Application I: 1G/10G OEO Converter (3R Repeater)

Application II: fiber to copper 1Gbps Ethernet equipment function as fiber-to-copper media

converter

Technical Indexes

Performance Data	Technical Indexes
Equipment function	3R Repeater
Transmission Speed	10G: 8.5Gb/s-11.7Gb/s
Protocols	8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS
Interface Type	SFP+ to SFP+
Transmission Distance	SFP+ module: up to 80km
Maximum Packet Forwarding Rate	14,880,950/S
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
MTBF	> 200,000 hrs
Ethernet Media Converter Specifications
Standards	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z, 1000BASE-SX/LX IEEE 802.3x Full-duplex flow control
Work Mode	10/100/1000BASE-T to 1000BASE-SX/LX
Port Type	SFP to RJ45
Network Cables	Twisted-pair 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m 100BASE-TX: 2-pair UTP Cat. 5, up to 100m 1000BASE-T: 4-pair STP Cat 5 up to 100m Fiber-optic Cable 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km. 1000BASE-LX: 9/125μm single-mode cable, providing long distance for 10/20/40/80/120km (vary on SFP module)
Electrical and Mechanical

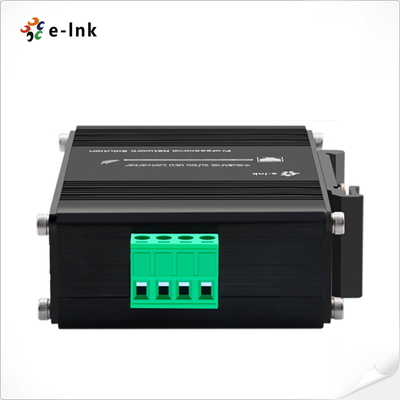

Input Power	12~48VDC, Redundant Power (6-pin Terminal Block)
Power Consumption	8W Max
Protection
Power Input Overload	Automatic Resettable
Reverse Polarity	Present

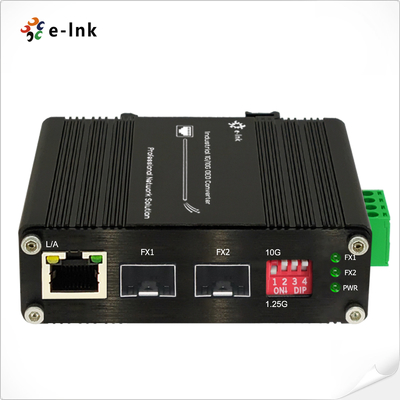

DIP Switch
4-digit DIP switch function	DIP	Function	Settings
	SW 1	1.25G/10G	ON - 1.25~8.5G	OFF - 10.3G or 14.025G
	SW 2	Reserved	ON - Reserved	OFF - Reserved
	SW 3	Reserved	ON - Reserved	OFF - Reserved
	SW 4	Reserved	ON - Reserved	OFF - Reserved
LED Indicators:
PWR	Power Status
FX1	SFP Port-1
FX2	SFP Port-2
L/A	TP LINK/ACT
Dimensions (WxDxH)	95 x 70 x 30 mm
Weight	0.25Kg
Casing	Aluminum Case
Mounting Options:	DIN-Rail mount
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
