8-Port 10/100Base-TX Hardened Unmanaged Industrial Ethernet Switch

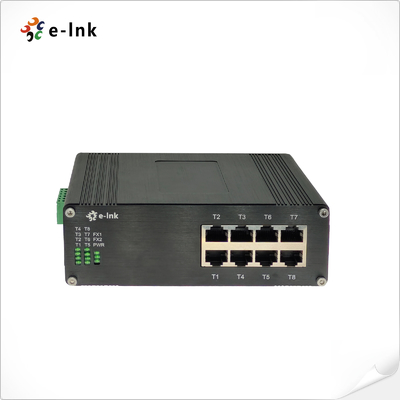

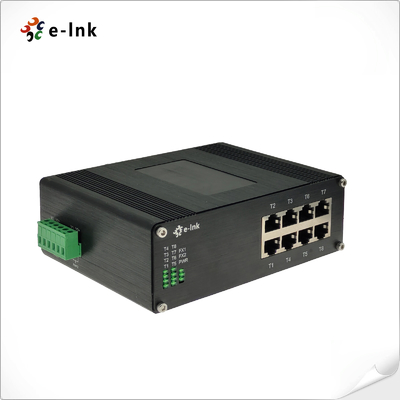

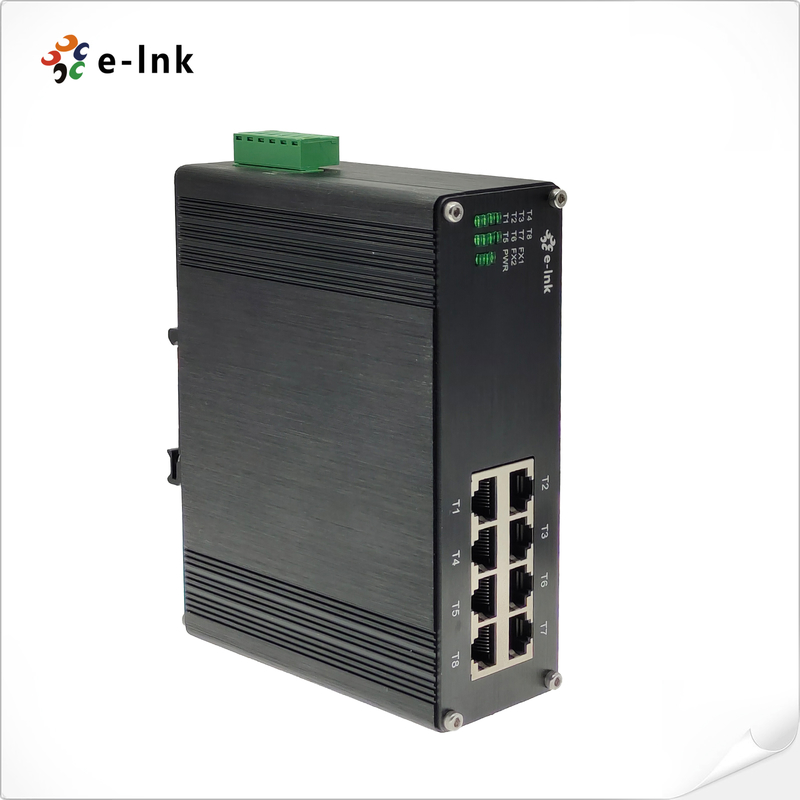

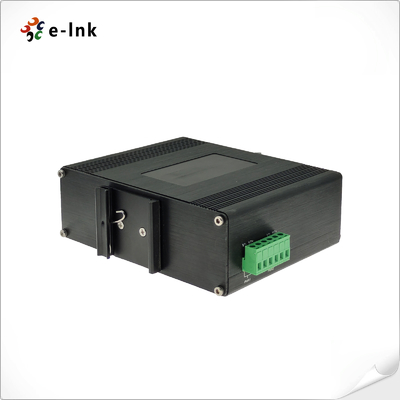

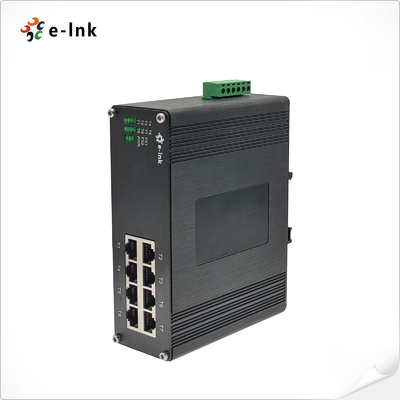

Large Image : 8-Port 10/100Base-TX Hardened Unmanaged Industrial Ethernet Switch

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC008

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Unmanaged Industrial Ethernet Switch Standard Export Package
Delivery Time:	3~10 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	2000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial 8 Port PoE Switch	Power Consumption:	5W Max
Input Power:	12~58VDC	Dimensions (WxDxH):	150 X 115 X 50 Mm
Weight::	0.6Kg	Casing::	Aluminum Case

Unmanaged Industrial 8-port 10/100BASE-T Ethernet Switch

Overview

This 8-Port 10/100Base-TX Hardened Ethernet Switch is an unmanaged industrial-grade device built to meet rigorous environmental and performance standards. With a robust design resistant to vibration and shock, and a wide operating temperature range, it is ideal for harsh industrial environments. The switch complies with CE and FCC certifications and undergoes 100% burn-in testing to ensure reliability. It offers a cost-effective and dependable solution for industrial Ethernet connectivity.

Features

► 8 10/100Base-TX ports

► RJ45 Port Supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail and Wall-mount installation

► Redundant 12～58VDC Power Inputs

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3x Flow Control
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
Cabling	10Base-T: Cat5 or above
	100Base-TX: Cat5 or above
Maximum Distance	Cat5 UTP up to 100m
Interface
Connector:	8 x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~58VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	5W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
Ethernet (Per Port):	Link/Activity
Dimensions (WxDxH):	150 x 115 x 50 mm
Weight:	0.6Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC008	Industrial 8-port 10/100BASE-T Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
