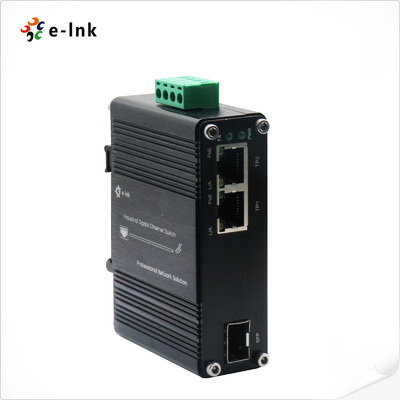

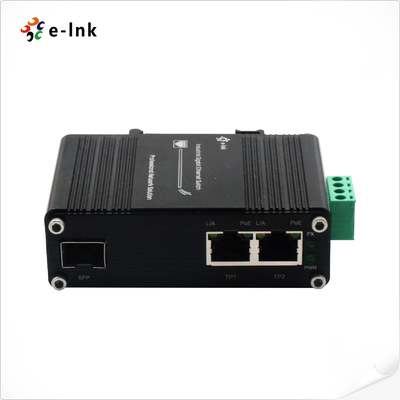

Micro Industrial DIN Rail Type Supports External SFP Modules 90W PoE++ Media Converter

Large Image : Micro Industrial DIN Rail Type Supports External SFP Modules 90W PoE++ Media Converter

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC1200GP90-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Media Converter Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Connector:	2 X RJ45	Optical Port:	1 X SFP 1000Base-X Or 100Base-FX (auto Detection)
Input Power:	48~57VDC, 4-pin Terminal Block	Dimensions (WxDxH):	95 X 70 X 30 Mm
Weight:	0.25Kg	Mounting Options:	DIN-Rail / Wall-mount

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 90W PoE++ Media Converter

Overview
The LNK-IMC1200GP90-SFP is an industrial-grade DIN rail media converter designed for
mission-critical network deployments. This ruggedized device features a 10/100/1000Base-T
Ethernet port with industry-leading 90W PoE++ capability (IEEE 802.3bt compliant), delivering
the highest power output in its class. The integrated 100/1000Base-X SFP slot provides flexible
fiber connectivity options, supporting both single-mode and multi-mode SFP modules (1/2 core).
Built to withstand harsh environments, it operates flawlessly across an extended temperature
range of -40°C to +75°C while maintaining full compliance with EN55022 standards. Supporting
both half-duplex and full-duplex modes, this hardened media converter is engineered for reliable
performance in industrial automation, smart grid, and outdoor applications where high-power PoE
and robust connectivity are essential.
Key differentiators:
1. Highlights the industry-leading 90W PoE++ capability
2. Emphasizes mission-critical applications
3. Specifies "highest power output in its class" as a competitive advantage
4. Includes specific application examples (industrial automation, smart grid)
5. Maintains all technical specifications while improving readability
6. Uses stronger descriptors ("ruggedized", "engineered for reliable performance")
Features
► 48~57VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature
► Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

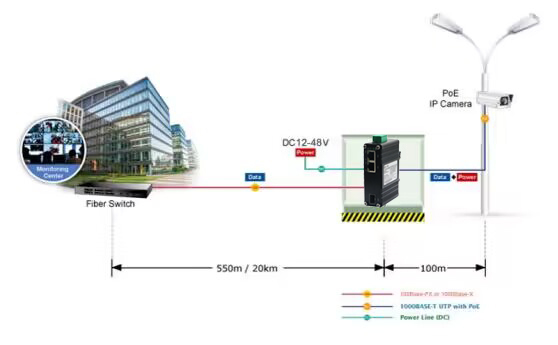

Application
Micro Industrial DIN Rail Type Supports External SFP Modules 90W PoE++ Media Converter 0

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
	IEEE802.3bt Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Connector:	2 x RJ45
Optical Port:	1 x SFP 1000Base-X or 100Base-FX (auto detection)
Electrical and Mechanical
Input Power:	48~57VDC, 4-pin terminal block
Power Consumption:	185W Max.
LED Indicators:
PWR:	Power Status
PoE:	PD Plug Status
RJ45:	LINK/Activity
SFP:	LINK
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC1200GP90-SFP	Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with 90W PoE++
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options	► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
