Mini 4K HDMI Fiber Optic Transceiver Supports HDMI 1.4a up to 300m Distance

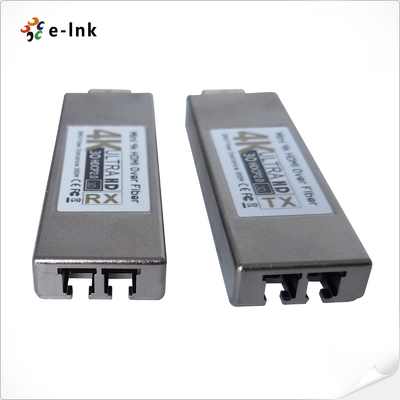

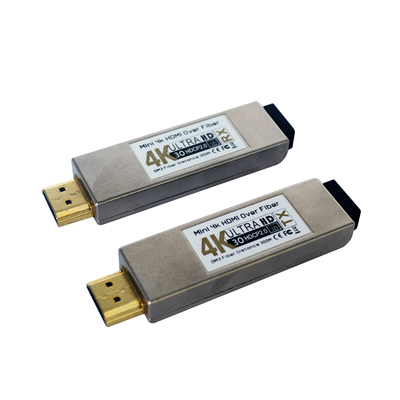

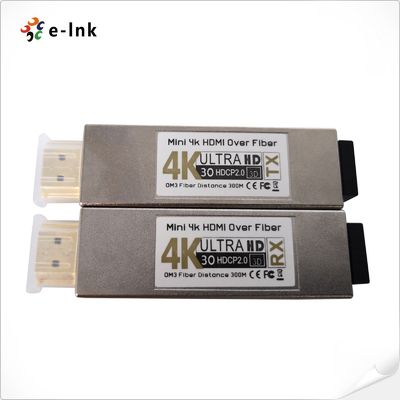

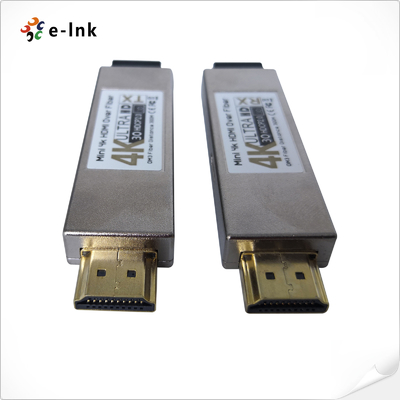

Large Image : Mini 4K HDMI Fiber Optic Transceiver Supports HDMI 1.4a up to 300m Distance

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-106M

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Mini 4K HDMI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~10 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	2000pcs per month

Contact Now

Detailed Product Description

Input Signals::	HDMI	Dynamic EDID::	Plug & Play, No Need To Learn
Dimension (WxDxH)::	3.15 X 0.79 X 0.35 In (80x20x9mm)	Weight::	0.1 Kg / 0.22 Lb
Operation Voltage::	5V DC	Power Supply::	Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)

Mini 4K HDMI Optical Transceiver

Overview

The 4K HDMI Optical Transceiver is designed for uncompressed, lossless HDMI 1.4a signal transmission over multimode optical fiber at 850nm, supporting up to 300m distance with 4Kx2K resolution. The transmitter converts HDMI signals into a 10Gbps serial data stream for dual-fiber transmission, while the receiver restores it to HDMI. RoHS-compliant and lead-free, this device ensures high stability and anti-interference performance. Perfect for large-screen displays, conference systems, and home entertainment setups.

Features

HDMI 1.4a and HCCP1.2 Support
Uncompressed transmission,No delay,No losses
DDC CEC HPD Signal Support
Supports up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber (850nm)
Supports All Modes up to 4K*2K@30Hz Resolution
Standard HDMI Connector
Integrated USB Connector for Power
Hot-Pluggable, EMI/RFI Resistant
Miniature form factor for ease of use and installation
850nm VCSEL and PIN Photodetector
Video over (2) multimode fibers
Typical Power Dissipation 1420 mW (Source), 1220 mW (Sink)
Operating Case Temperature: 0~70°C

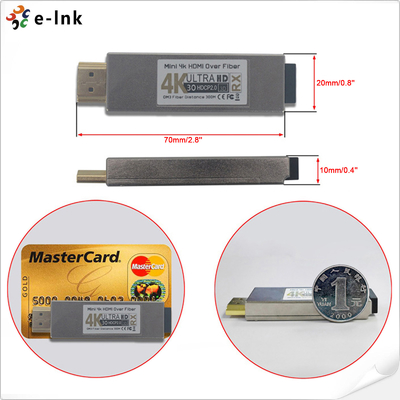

Dimension & Size

Mini 4K HDMI Fiber Optic Transceiver Supports HDMI 1.4a up to 300m Distance 0

Technical Indexes

Type of Extender	Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals	HDMI
Signal Support	HDMI 1.4a HDMI format standard and HDCP compliant
Video Support	1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website Specifications	Color space 444, 420, 400
Dynamic EDID	Plug & Play, no need to learn
Fiber Connector	Double LC Receptacle
Transmission Distance	Multi Mode, up to 984ft (300M)
Operating Temperature	0°C to + 50°C
Storage Temperature	-20°C to + 85°C
Humidity	to 90% RH (non-condensing)
Safety Approvals	CE, RoHS, FCC
Dimension (WxDxH)	3.15 x 0.79 x 0.35 in (80x20x9mm)
Weight	0.1 kg / 0.22 lb
Operation Voltage	5VDC
Power Supply	Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)

Ordering Information

Item	Description

LNK-106M	Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input

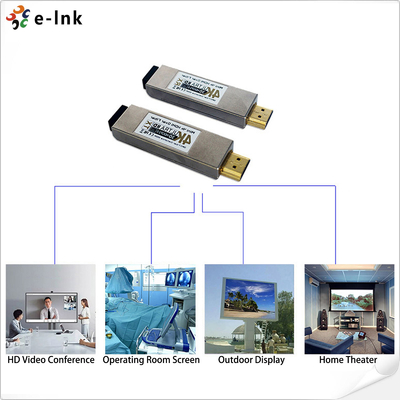

Application

Mini 4K HDMI Fiber Optic Transceiver Supports HDMI 1.4a up to 300m Distance 1
