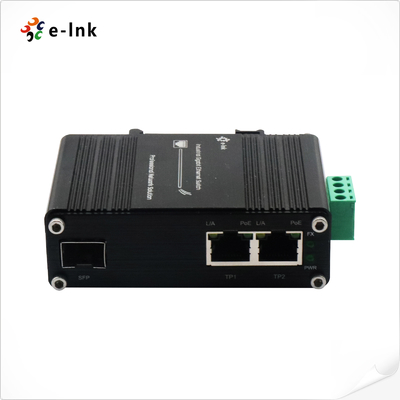

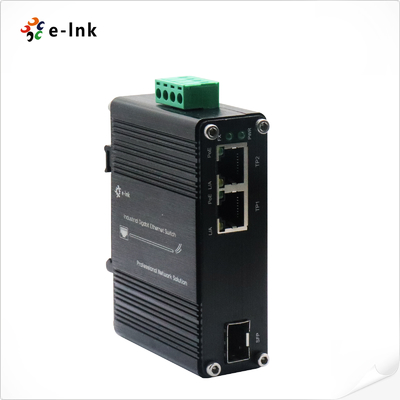

Micro Industrial 30W PoE+ DIN rail type 12~48VDC Terminal Block Power Input Media Converter

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 30W PoE+ Media Converter

Overview
The LNK-IMC1200GP-SFP is a rugged DIN rail media converter designed for industrial applications.
This hardened-grade device features a 10/100/1000Base-T Ethernet port with high-power 30W PoE+
(IEEE 802.3at compliant) and a 100/1000Base-X SFP slot for flexible fiber connectivity. Supporting
operation in extreme temperatures from -40°C to +75°C, it accommodates various SFP modules
(single-mode/multi-mode, 1/2 core) to meet diverse networking requirements. The converter offers both
half-duplex and full-duplex modes and complies with EN55022 standards, ensuring reliable performance
in demanding environments while providing power to connected devices through its PoE+ capability.
Key improvements:
1. Better flow and readability
2. More professional technical description
3. Clearer organization of features
4. Stronger emphasis on industrial applications
5. More concise while maintaining all technical details
Features

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature

► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

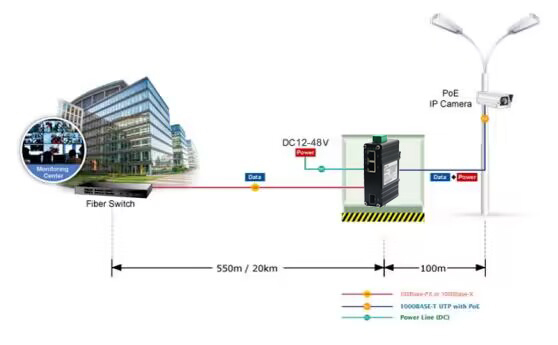

Application



























Technical Indexes


























































Ordering Information
