Industrial PoE Injector with M12 Connectors, EN50155 Certification, 12-48V DC

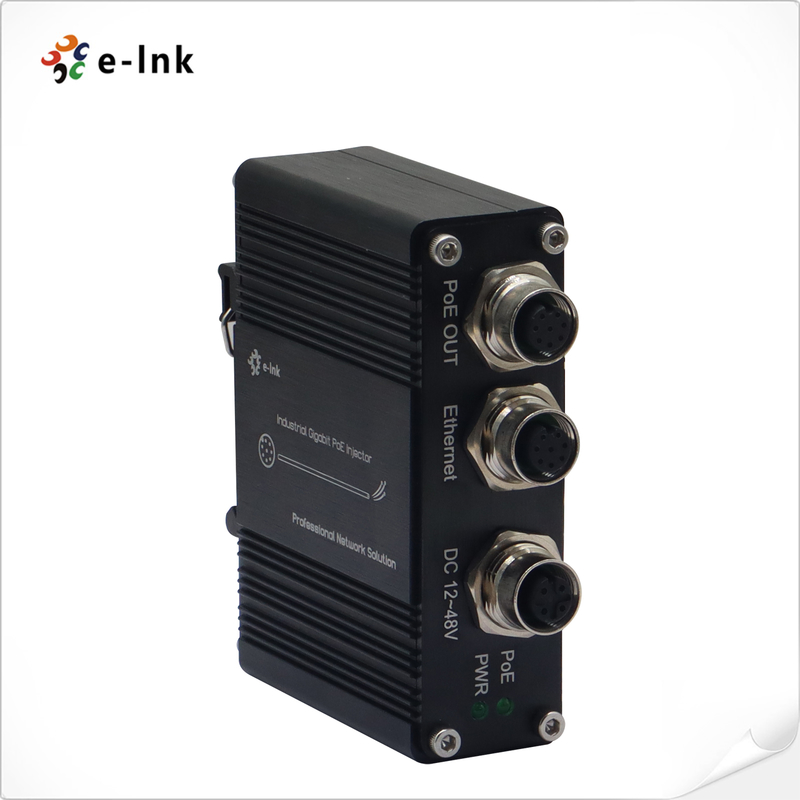

Large Image : Industrial PoE Injector with M12 Connectors, EN50155 Certification, 12-48V DC

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE/FCC/Rohs
Model Number:	LNK-INJ301-30-M12

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation
Packaging Details:	Industrial PoE Injector Standard export package
Delivery Time:	3-10 working days
Payment Terms:	T/T, Western Union, MoneyGram, PayPal
Supply Ability:	10000 per Month

Contact Now

Detailed Product Description

Input Power::	12~48V DC On 4-pin Female M12 A-Coding	Power Consumption::	36W Max
Standard：:	IEEE802.3af/at	Port：:	2x M12 Connector (8-pin Female M12 A-coding)
Dimension(WxDxH)::	95 X 70 X 30 Mm	Weight::	0.25Kg

EN50155 Industrial 10/100/1000M 30W PoE Injector with M12 connecto

Overview

E-link's EN50155-certified industrial-grade PoE injector is designed for rail transit, rolling stock, and

railway applications. Compliant with IEEE802.3at, it supports intelligent detection and provides one

10/100/1000Base-T(X) PoE output port, ensuring secure protection for non-PoE devices. Its M12

connector ensures stable operation in harsh environments such as high vibration and shock.

The LNK-INJ301-30-M12 features a wide input voltage range (12-48V DC), providing a reliable integrated

power solution for high-availability applications, making it an ideal choice for industrial and transportation

applications.

Features

► 12~48V DC Power Input

► Fully compliant with IEEE802.3af/at

► Support 10/100/1000Base-TX for power and data output

► Support DIN-Rail & Wall-mount installation

► Use Type-A M12 connectors to ensure tight and robust connections

► Small Size: 95 x 70 x 30mm

► Weight: 0.25KG

► Aluminum Case

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
Standards:	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T
Connector:	2x M12 connector (8-pin female M12 A-coding)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48V DC on 4-pin female M12 A-Coding
Power Consumption:	36W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	M12 connector (8-pin female M12 A-coding)
Max. Power per Port:	30W Max
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case

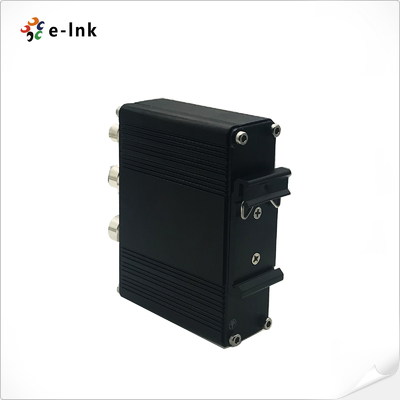

Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A, EN50155
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

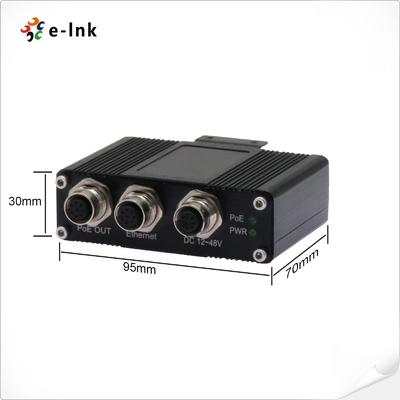

Dimension & Size

Order Information

Model	Description
LNK-INJ301-30-M12	EN50155 Industrial 1-port 10/100/1000M M12 PoE Injector 12~48V DC Power Input
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
