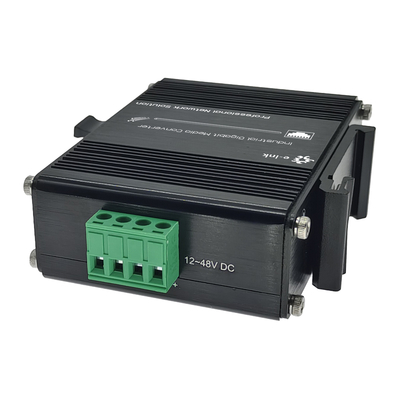

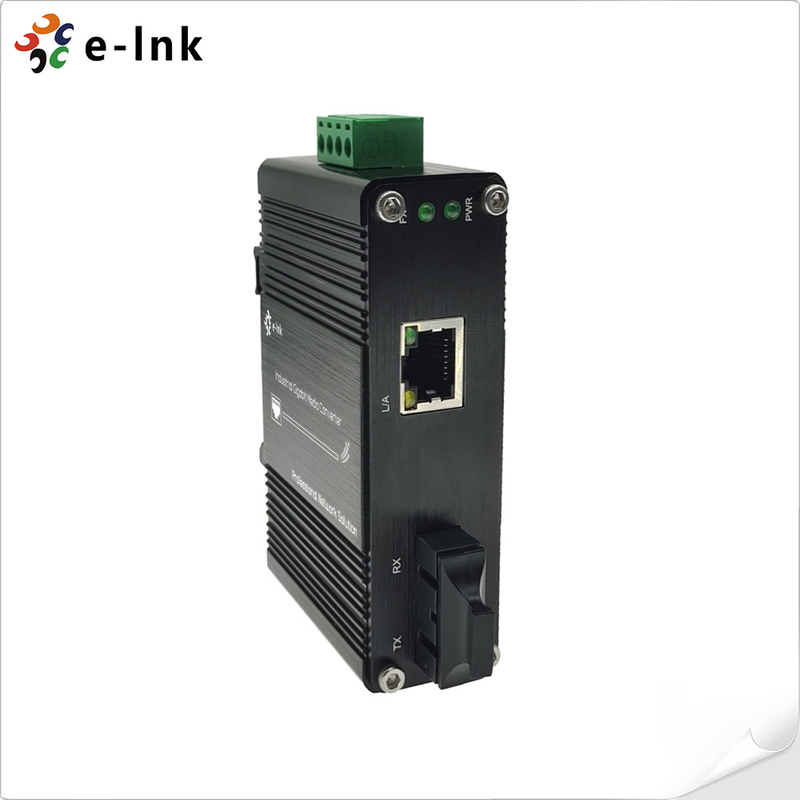

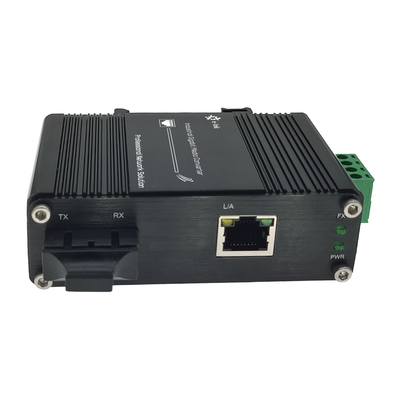

Mini Industrial Media Converter between 10/100/1000BASE-T and 1000BASE-X Fiber

Mini Industrial  Media Converter between 10/100/1000BASE-T and 1000BASE-X Fiber
Mini Industrial  Media Converter between 10/100/1000BASE-T and 1000BASE-X Fiber Mini Industrial  Media Converter between 10/100/1000BASE-T and 1000BASE-X Fiber Mini Industrial  Media Converter between 10/100/1000BASE-T and 1000BASE-X Fiber Mini Industrial  Media Converter between 10/100/1000BASE-T and 1000BASE-X Fiber

Large Image :  Mini Industrial Media Converter between 10/100/1000BASE-T and 1000BASE-X Fiber

Product Details:
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC, ISO9001
Model Number: The LNK-IMC3012 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: To be negotiated
Packaging Details: Industrial Ethernet Media Converter Standard Export Package
Delivery Time: 5-12working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability: 1000pcs/month
Detailed Product Description
Connector: 1 X RJ45 Optical Port: 1 X 1000Base-X SC
Operating Temperature: -40°C To 75°C (-40°F To 167°F) Input Power: 12~48VDC, 4-pin Terminal Block
Power Consumption: 3W Max Dimensions (WxDxH): 95 X 70 X 30 Mm
Weight: 0.25Kg

Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter

Overview

The LNK-IMC3012 Series is an industrial-grade media converter that enables seamless network

conversion between 10/100/1000BASE-T copper Ethernet and 1000BASE-X fiber. Designed for harsh

environments, it operates reliably across an extended temperature range (-40°C to 75°C) and features

a rugged aluminum housing for superior durability. The Ethernet port supports both half- and full-duplex

modes, ensuring flexible connectivity options.

A key advantage of the LNK-IMC3012 Series is its dual-rate fiber port, supporting both 100Mbps and

1000Mbps speeds for broad compatibility with various fiber devices. Its ruggedized construction guarantees

stable performance in demanding industrial applications. For easy deployment, the converter supports DIN

rail mounting or installation in distribution boxes, making it an ideal solution for industrial networking,

automation, and infrastructure projects requiring reliable media conversion.

Features

► IEEE 802.3az Energy Efficient Ethernet (EEE)

​► Extensive LED indicators for network diagnostics

► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SC Port, 1000Base-X

► Supports Full/Half-duplex, Auto-negotiation

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature

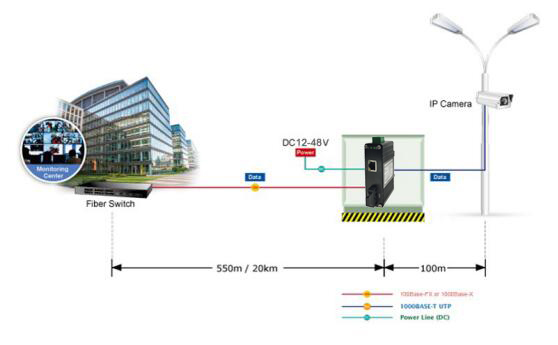

Application

Mini Industrial  Media Converter between 10/100/1000BASE-T and 1000BASE-X Fiber 0



















































Technical Indexes



Ethernet
Standards: IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE 802.3az Energy Efficient Ethernet (EEE)
Processing Type: Store-and-Forward
Forward Filter Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory: 1 Mbit
Max Packet Length: 9K Bytes
Address Table Size 2K MAC Addresses
Interface
Connector: 1x RJ45
Optical Port: 1 x SC 1000Base-X
Electrical and Mechanical
Input Power: 12~48VDC, 4-pin terminal block
Power Consumption: 3W Max.
LED Indicators:
PWR: Power Status
L/A: Data LINK Status
SPD: Ethernet Status
100M/1000M: Fiber LINK Status
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Environmental
Operating Temperature: -40°C to 75°C (-40°F to 167°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)











































































































Ordering Information



Model Description
LNK-IMC3012 Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-SX, Multi-mode, 550m, 850nm, SC
LNK-IMC3012-20 Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-LX, Single-mode, 20km, 1310nm, SC
LNK-IMC3012-S20 Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-BX, Single-mode, Single Fiber, 20km, 1310/1550nm, SC
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
