LNK-INJ301 Hardened Gigabit PoE Injector, 12–48VDC Wide Voltage Range,Support IEEE802.3at

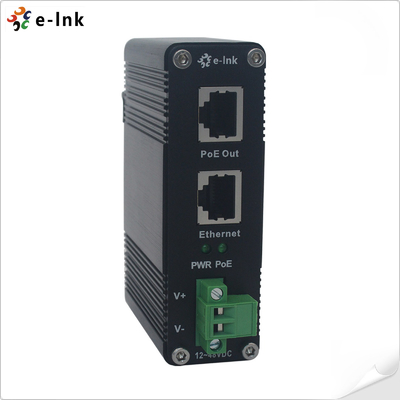

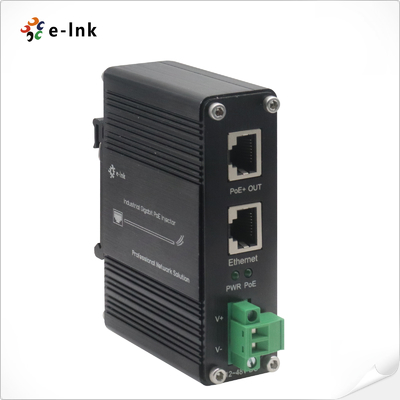

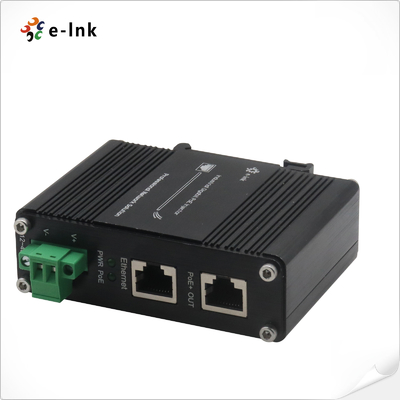

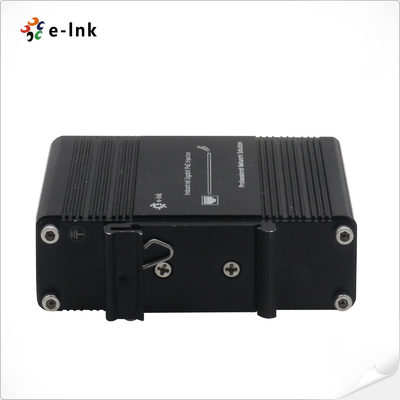

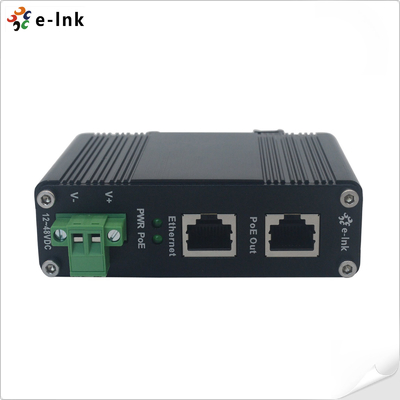

Large Image : LNK-INJ301 Hardened Gigabit PoE Injector, 12–48VDC Wide Voltage Range,Support IEEE802.3at

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-INJ301

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Gigabit PoE Injector Standard Export Package
Delivery Time:	3~10 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	2000pcs/month

Contact Now

Detailed Product Description

Product Name:	Industrial PoE Injector	Input Power:	12~48V DC(Terminal Block)
Power Consumption:	36W Max	Weight:	0.25KG
Dienmsion(WxDxH):	95 X 70 X 30 Mm	Mounting Options:	DIN-Rail / Wall-mount

12~48VDC Power Input Industrial Gigabit PoE+ Injector

Overview

The Hardened Gigabit High Power PoE Injector enables you to connect IEEE 802.3af/at PoE devices

such as IP cameras and wireless access points to a non-PoE LAN switch over distances up to 100m. Both

the Ethernet input and PoE output ports support 10/100/1000Base-T, complying with IEEE 802.3ab standards.

The PoE output port fully supports IEEE 802.3at for high-power devices. The LNK-INJ301 offers an integrated

power solution with a 12–48VDC wide input range, ensuring reliable performance for mission-critical and

industrial applications.

Features

► 12~48VDC Power Input

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

► Support 10/100/1000Base-TX

► Support DIN-Rail & Wall-mount installation.

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

LNK-INJ301 Hardened Gigabit PoE Injector, 12–48VDC Wide Voltage Range,Support IEEE802.3at 0

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
Standards:	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	36W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	30W Max per port (Alternative B Mode)
LED Indicators:
Power:	Power Status
PoE:	PoE Status

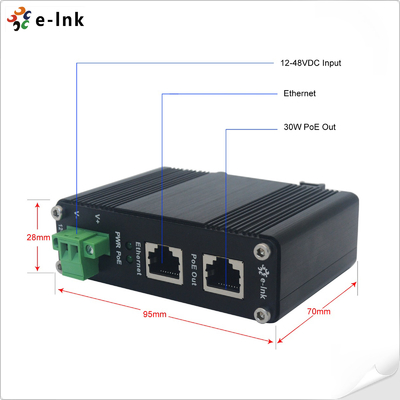

Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ301	12~48VDC Power Input Industrial Gigabit PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately

Application

LNK-INJ301 Hardened Gigabit PoE Injector, 12–48VDC Wide Voltage Range,Support IEEE802.3at 1
