Aluminum RJ45 3W Mini Industrial Fiber Media Converter between 10/100BASE-T and 100BASE-FX Fiber.

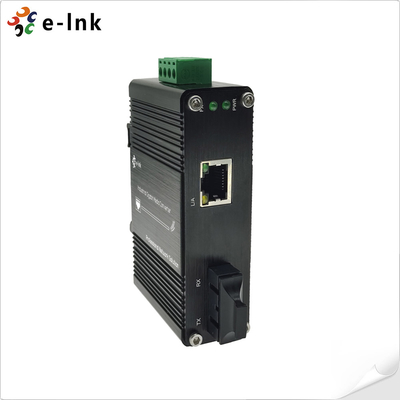

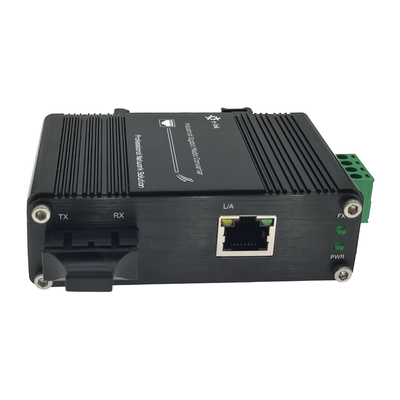

Large Image : Aluminum RJ45 3W Mini Industrial Fiber Media Converter between 10/100BASE-T and 100BASE-FX Fiber.

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	RoHS,CE,FCC
Model Number:	LNK-IMC1100 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Industrial Ethernet Media Converter Standard Export Package
Delivery Time:	5 days
Payment Terms:	L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability:	Negotiation

Contact Now

Detailed Product Description

Connector:	1x RJ45	Optical Port:	1 X SC 100Base-FX
Input Power:	12~48VDC, 2-pin Terminal Block	Dimensions (WxDxH):	95 X 70 X 30 Mm
Weight:	0.25Kg	Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount	Operating Temperature:	-40°C To 75°C (-40°F To 167°F)

Mini Industrial 10/100Base-T to 100Base-FX Media Converter

Overview

The LNK-IMC1100 Series is an industrial-grade media converter designed for reliable network

connectivity in harsh environments. It provides seamless conversion between 10/100BASE-T

copper Ethernet and 100BASE-FX fiber, ensuring stable data transmission across different media

types. Built to endure extreme conditions, this rugged device operates in a wide temperature range

(-40°C to 75°C) and features a durable aluminum housing for enhanced protection. The Ethernet port

supports both half- and full-duplex modes, offering flexible deployment options. With its hardened design,

the LNK-IMC1100 Series withstands demanding industrial applications while maintaining consistent

performance. For easy installation, it supports DIN rail mounting or placement in distribution boxes, making

it an ideal solution for industrial networking infrastructure.

Features

12~48VDC Terminal Block Power Input

Supports DIN-Rail & Wall-mount installation

Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature

1-Port 10/100BASE-T RJ45 with auto MDI/MDI-X function

1-Port 100Base-FX SC

Extensive LED indicators for network diagnostics

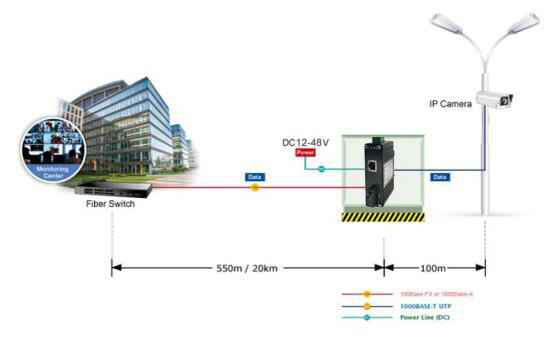

Application

Aluminum RJ45 3W Mini Industrial Fiber Media Converter between 10/100BASE-T and 100BASE-FX Fiber. 0

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3x Full duplex and flow control
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
Forward Filter Rate:	148,800pps (100Mbps)
Packet Buffer Memory:	128K bits
Max Packet Length:	1522 Bytes
Address Table Size	1K MAC Addresses
Interface
Connector:	1x RJ45
Optical Port:	1 x SC 100Base-FX
Electrical and Mechanical

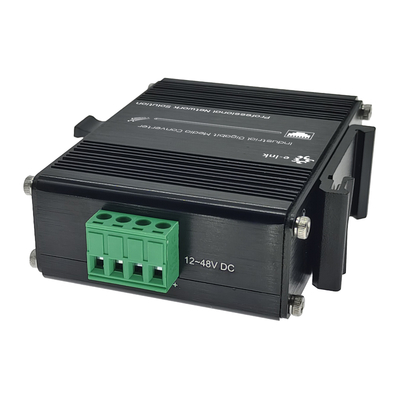

Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	3W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
SPD:	Ethernet Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC1100	Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Multi-mode, 2km, 1310nm, SC
LNK-IMC1100-20	Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, 20km, 1310nm, SC
LNK-IMC1100S-20	Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, Single Fiber, 20km, 1310/1550nm, SC
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
