Micro Industrial 1 90W PoE++ Media Converter between 10/100/1000BASE-T and 1000BASE-X Fiber

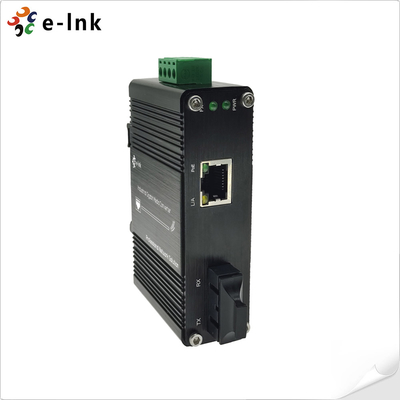

Large Image : Micro Industrial 1 90W PoE++ Media Converter between 10/100/1000BASE-T and 1000BASE-X Fiber

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC3011P90

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Media Converter Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Connector:	1x RJ45	Optical Port:	1 X 1000Base-X SC
Input Power:	48~57VDC, 4-pin Terminal Block	Output Power:	48VDC
Dimensions (WxDxH):	95 X 70 X 30 Mm	Weight:	0.25Kg
Casing:	Aluminum Case	Mounting Options:	DIN-Rail / Wall-mount

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 90W PoE++ Media Converter

Overview

The LNK-IMC3011P90 Series is a robust industrial media converter that seamlessly bridges

10/100/1000BASE-T copper Ethernet and 1000BASE-X fiber networks. Equipped with a 90W high-power

PoE (PSE) port compliant with IEEE 802.3bt, it efficiently powers connected devices such as IP cameras,

wireless access points, and industrial IoT equipment. Engineered for extreme environments, this hardened

converter operates reliably across a wide temperature range (-40°C to 75°C) and features a rugged aluminum

housing for superior durability. Supporting both half- and full-duplex modes, it ensures flexible and

high-performance connectivity. Designed to thrive in harsh industrial settings, the LNK-IMC3011P90 Series

offers easy DIN rail mounting or installation in distribution boxes, making it an ideal solution for demanding

networking applications.

Features

► 48~57VDC Terminal Block Power Input

► Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1-Port 1000Base-X SC

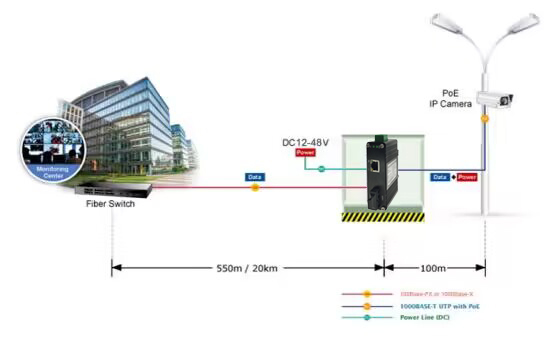

Application

Micro Industrial 1 90W PoE++ Media Converter between 10/100/1000BASE-T and 1000BASE-X Fiber 0

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
	IEEE802.3bt Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2048K MAC Addresses
Interface
Connector:	1x RJ45
Optical Port:	1 x 1000Base-X SC
Electrical and Mechanical
Input Power:	48~57VDC, 4-pin terminal block
Output Power	48VDC
Power Consumption:	95W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
POE:	PoE Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC3011P90	Mini Industrial 90W PoE Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Multimode, 850nm, 550m
LNK-IMC3011P90-20	Mini Industrial 90W PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC3011P90S-20	Mini Industrial 90PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
