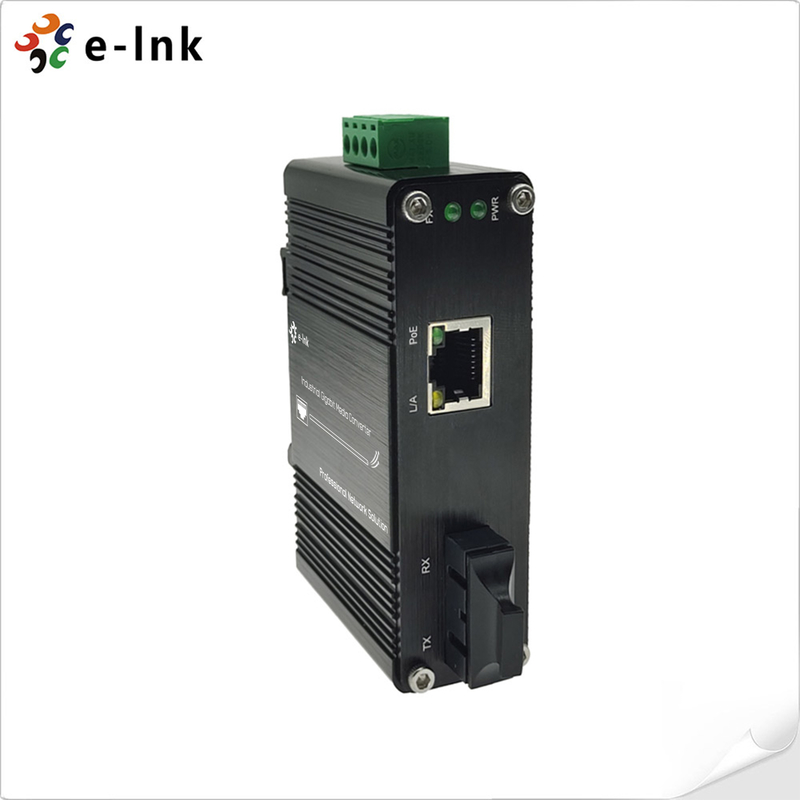

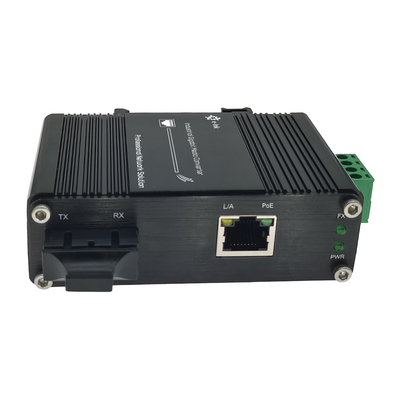

Mini Industrial Media Converter Between 10/100BASE-T and 100BASE-FX Fiber.

Large Image : Mini Industrial Media Converter Between 10/100BASE-T and 100BASE-FX Fiber.

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC1100P90 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Media Converter Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Connector:	1x RJ45	Optical Port:	1 X SC 100Base-FX
Input Power:	48~57VDC, 4-pin Terminal Block	Output Power:	48VDC
Weight:	0.25Kg	Dimensions (WxDxH):	95 X 70 X 30 Mm
Casing:	Aluminum Case	Mounting Options:	DIN-Rail / Wall-mount

Mini Industrial 100BASE-FX to 10/100BASE-T 90W PoE++ Media Converter

Overview

The LNK-IMC1100P90 Series is a rugged media converter designed for industrial environments,

enabling seamless conversion between 10/100BASE-T copper Ethernet and 100BASE-FX fiber.

Featuring a 90W high-power PoE (PSE) port compliant with IEEE 802.3bt, it efficiently delivers power

to connected devices. Built to endure harsh conditions, the converter operates in a wide temperature

range (-40°C to 75°C) and is housed in a durable aluminum enclosure. Its Ethernet port supports both

half- and full-duplex modes, ensuring flexible connectivity. With a hardened design for reliability in

demanding settings, the LNK-IMC1100P90 Series offers easy installation via DIN rail mounting or

placement in distribution boxes, making it ideal for industrial networking applications.

Features

► 48~57VDC Terminal Block Power Input

► Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)

► Supports Full/Half-duplex, Auto-negotiation

► 1-Port 10/100BASE-T RJ45 with auto MDI / MDI-X function

► 1-Port 100Base-FX SC

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature

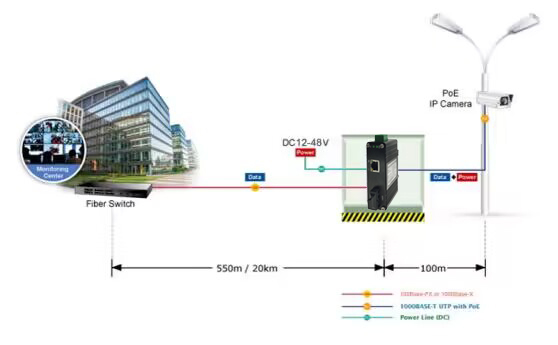

Application

Mini Industrial Media Converter Between 10/100BASE-T and 100BASE-FX Fiber. 0

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3x Full duplex and flow control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
	IEEE802.3bt Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
Forward Filter Rate:	148,800pps (100Mbps)
Packet Buffer Memory:	128K bits
Max Packet Length:	1522 Bytes
Address Table Size	1K MAC Addresses
Interface
Connector:	1x RJ45
Optical Port:	1 x SC 100Base-FX
Electrical and Mechanical
Input Power:	48~57VDC, 4-pin terminal block
Output Power	48VDC
Power Consumption:	95W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
POE:	PoE Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC1100P90	Mini Industrial 90W PoE Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Multimode, 1310nm, 2km
LNK-IMC1100P90-20	Mini Industrial 90W PoE Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC1100P90S-20	Mini Industrial 90W PoE Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
