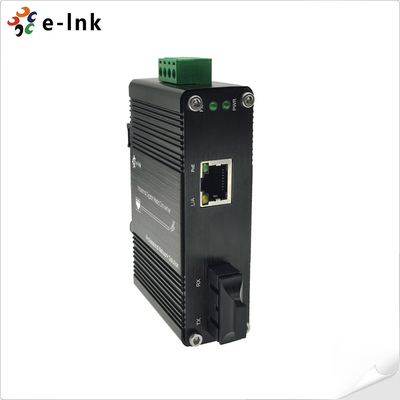

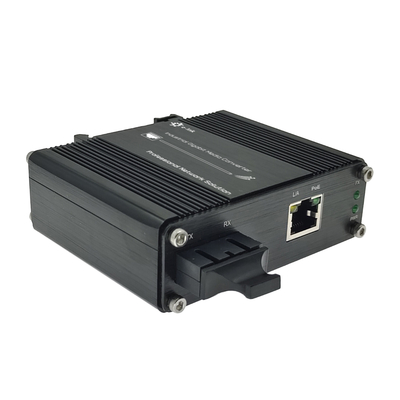

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter
Overview
The LNK-IMC3011P60 Series is an industrial-grade media converter that seamlessly bridges
10/100/1000BASE-T copper Ethernet and 1000BASE-X fiber optic networks. Equipped with a 60W
high-power PoE (Power Sourcing Equipment) port compliant with IEEE 802.3at (PoE+), it efficiently
delivers power and data to connected devices such as IP cameras, wireless access points, and
industrial IoT equipment.
Engineered for harsh environments, this rugged converter operates reliably across an extended
temperature range of -40°C to 75°C and features a robust aluminum housing for superior durability and
heat dissipation. Its compact, DIN-rail or wall-mountable design ensures flexible deployment in control
cabinets, distribution boxes, or other industrial settings.
Supporting both half-duplex and full-duplex modes, the LNK-IMC3011P60 guarantees stable and high-speed
data transmission in demanding applications, making it an ideal solution for factory automation, smart
transportation, and outdoor infrastructure.
Features

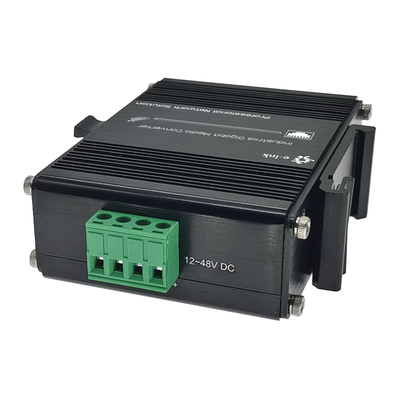

12~48VDC Terminal Block Power Input
Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature
1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
1-Port 1000Base-X SC
Supports Full/Half-duplex, Auto-negotiation
IEEE 802.3az Energy Efficient Ethernet (EEE)
Application
Tchnical Indexes
| Ethernet |
| Standards: |
IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX |
| IEEE802.3ab 1000Base-T |
| IEEE802.3z 1000Base-X |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet |
| Processing Type: |
Store-and-Forward |
| Forward Filter Rate: |
14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer Memory: |
1 Mbit |
| Max Packet Length: |
9K Bytes |
| Address Table Size |
2048K MAC Addresses |
| Interface |
| Connector: |
1x RJ45 |
| Optical Port: |
1 x 1000Base-X SC |
| Electrical and Mechanical |
| Input Power: |
12~48VDC, 4-pin terminal block |
| Output Power |
48VDC |
| Power Consumption: |
65W Max. |
| LED Indicators: |
| PWR: |
Power Status |
| L/A: |
Data LINK Status |
| POE: |
PoE Status |
| 100M/1000M: |
Fiber LINK Status |
| Dimensions (WxDxH): |
95 x 70 x 30 mm |
| Weight: |
0.25Kg |
| Casing: |
Aluminum Case |
| Mounting Options: |
DIN-Rail / Wall-mount |
| Environmental |
| Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF |
> 200,000 hrs |
| Regulatory Approvals |
| ISO9001, CE, FCC, RoHS |
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Ordering Information
| Model |
Description |
| LNK-IMC3011P60 |
Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m |
| LNK-IMC3011P60-20 |
Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC3011P60S-20 |
Mini Industrial PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
| Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
