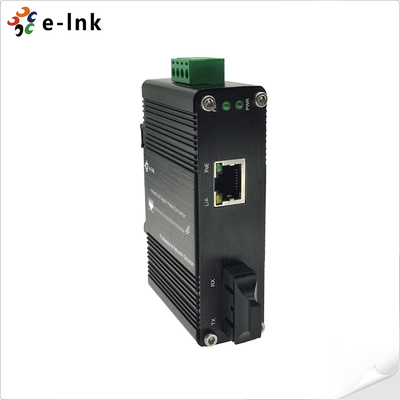

Micro Industrial Media Converter with 1-Port 10/100BASE-T RJ45 ►1-Port 100Base-FX SC 30W PoE+

Mini Industrial 100BASE-FX to 10/100BASE-T 30W PoE+ Media Converter

Overview

The LNK-IMC1100P Series delivers robust media conversion between 10/100BASE-T copper Ethernet

and 100BASE-FX fiber optic networks, while integrating high-power PoE (IEEE 802.3at) for streamlined

power and data transmission.

Key Features:
✔ Industrial-Grade Reliability – Operates in extreme environments (-40°C to 75°C) with a rugged

aluminum housing for shock/vibration resistance.
✔ High-Power PoE+ Support – Compliant with IEEE 802.3at (30W per port), powering PDs like IP

cameras/Wi-Fi APs directly.
✔ Plug-and-Play Flexibility – Auto-negotiating 10/100Mbps Ethernet ports with half/full-duplex mode

support.
✔ Space-Saving Deployment – DIN rail or distribution box mounting for easy integration in industrial

setups.

Why Choose This Converter?
-Simplified Power+Data Delivery: Eliminate separate power lines for PoE devices.
-Future-Proof Fiber Uplink: Extend copper networks over fiber for EMI immunity and long-distance

runs.
-Built for Harsh Conditions: Ideal for factories, oil/gas sites, and outdoor installations.

Engineered for mission-critical networks—where durability, PoE, and fiber converge.

Features

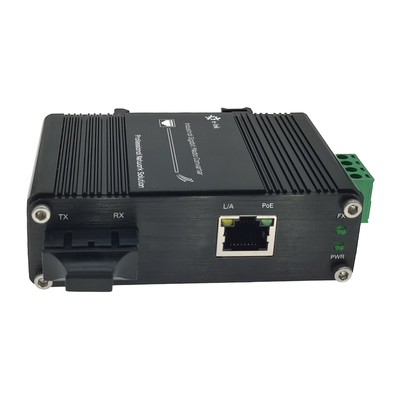

1-Port 10/100BASE-T RJ45 with auto MDI / MDI-X function

1-Port 100Base-FX SC

Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature

IEEE 802.3az Energy Efficient Ethernet (EEE)

Supports Full/Half-duplex, Auto-negotiation

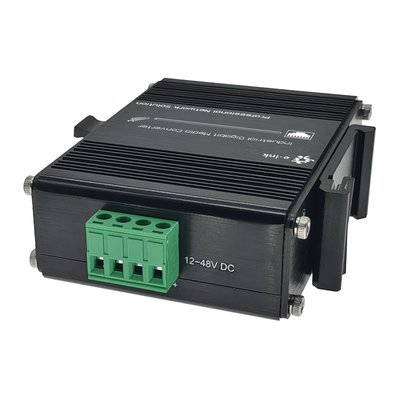

12~48VDC Terminal Block Power Input

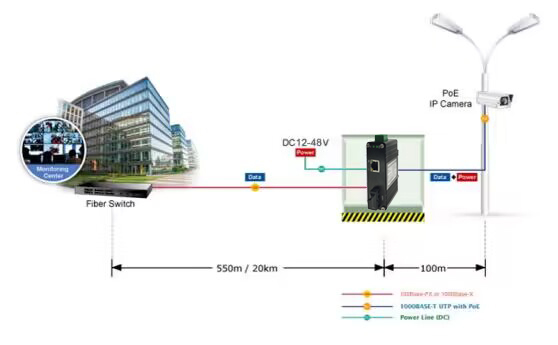

Application

Technical Indexes

Ordering Information
