PoE Pass-Through Switch with 95W Input and 71W Output for Harsh Environments

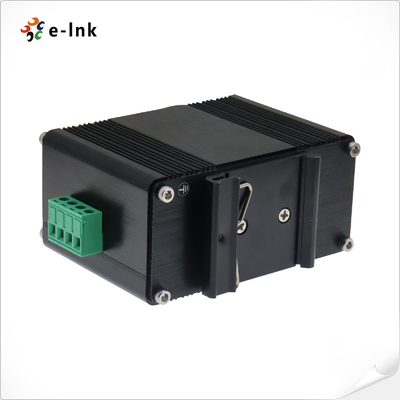

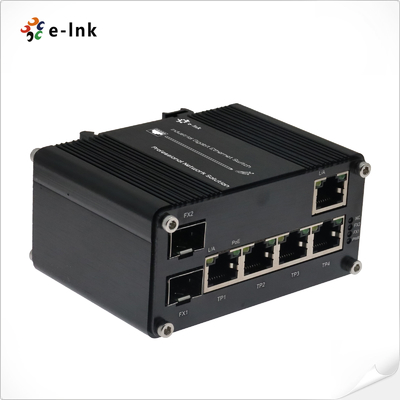

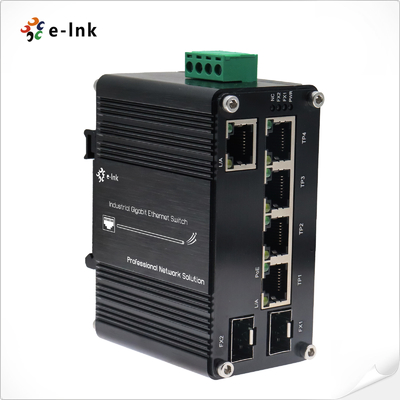

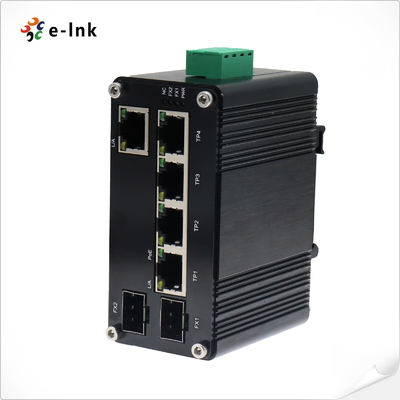

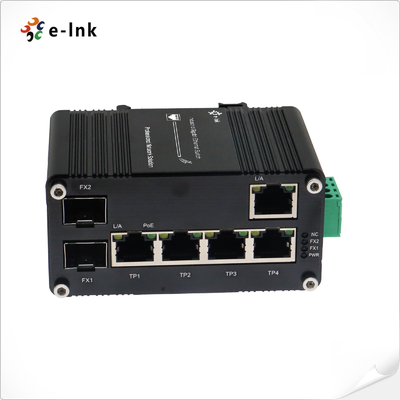

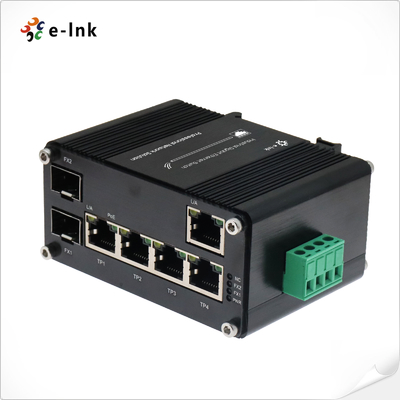

Large Image : PoE Pass-Through Switch with 95W Input and 71W Output for Harsh Environments

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC205GPD-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Industrial Ethernet PoE Switch Standard Export Package
Delivery Time:	2~7 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Connector:	4 Ports With 802.3at PoE+ Injector Function (Ports 1 To 4)	Optical Port:	2 X SFP 1000Base-X Or 100Base-FX (auto Detection)
Input Power:	48~57VDC (Terminal Block)	Dimensions (WxDxH):	95 X 88 X 46mm
Weight:	300g	Mounting Options::	DIN-Rail

Industrial PoE Powered 5-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch with PoE Passthrough

Overview

The LNK-IMC205GPD-SFP is a Mini Industrial PoE-Powered Ethernet Switch featuring 5 Gigabit RJ45 ports (10/100/1000T) and 2 SFP fiber slots (100/1000X). It integrates both Powered Device (PD) and Power Sourcing Equipment (PSE) functions, allowing it to receive power and data from an IEEE 802.3bt PoE++ source (up to 95W) and deliver up to 71W PoE power budget across 4 PoE ports (IEEE 802.3af/at/bt compliant).

Designed for PoE pass-through applications, this switch eliminates the need for local power sources in challenging environments. It supports PoE extension up to 200m, doubling the standard 100m distance without additional wiring. This reduces installation costs and avoids visible power cables in ceilings or walls while delivering up to 30W to compatible devices, such as IP cameras, wireless APs, and other PoE devices.

Ideal for industrial networks, remote deployments, and space-limited installations, the LNK-IMC205GPD-SFP ensures high reliability, plug-and-play setup, and robust performance in harsh environments.

Features

► One IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input

► Four PSE PoE ports, PoE Power Budget up to 71 Watt

► Two 100/1000BASE-X SFP slots for SFP type auto detection

► POE extender: No AC adapter is required, powered by PoE switch or PoE injector

► Expand and repeat your PoE network for up to 4 IP devices

► IEEE 802.3af/at/bt Compliant Output

► Supports DIN-Rail installation

► Compact fanless design avoids overheating

► IP40 rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.3bt 4-pair Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus PSE
	IEEE 802.3af Power over Ethernet Plus
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	2Mbits
Packet Length:	10Kbytes
MAC Address Table:	4K
Switch Fabric:	14Gbps/non-blocking
Exchange Property	Backplane bandwidth: 14Gbps; Packet forwarding rate: 14.88Mpps
Connector:	4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
Network Cables	Twisted-pair: 　10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m 　100BASE-TX: 2-pair UTP Cat. 5, up to 100m 　1000BASE-T: 4-pair STP Cat 5 up to 100m Fiber-optic Cable 　1000BASE-SX: 　　50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km. 　1000BASE-LX: 　　9/125μm single-mode cable, providing long distance of 2/10/20/40/80/120km (depending on SFP module) 　100BASE-FX: 　　50/125μm or 62.5/125μm multi-mode fiber cable for up to 2km (depending on SFP module) 　　9/125μm single-mode cable for 20/40/60/120km (vary on SFP module)
Interface
Connector:	5 x RJ45 (1-Port PoE In, 4-Port PoE Out)
Optical Port:	2 x SFP 1000Base-X or 100Base-FX (auto detection)
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at/bt
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 71-watt PoE budget
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	Pass through PoE: 95W power input from a PoE injector or switch
Input Power:	48~57VDC (Terminal Block)
Power Consumption:	<5W (Non-PoE)
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (LxWxH):	95 x 88 x 46mm
Weight:	300g
Casing:	Aluminum Case
Mounting Options:	DIN-Rail
LED Indicators:
PWR:	Power
L/A:	Link/Activity
PoE:	PoE Status
FX1/FX2:	SFP Fiber Link Status
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC205GPD-SFP	Industrial PoE Powered 5-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch with PoE Passthrough
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed;
Power Options	► PoE Pass Through
Power Options	► Power Supply is to be purchased separately
