Micro Industrial 10G Non-blocking Wire-speed Ethernet Media Converter for Copper

Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter

Overview
The LNK-IMC10G-SFP+ is an ultra-compact, industrial-grade 10G Ethernet media converter designed
for harsh environments. Combining a multi-rate RJ45 port (10G/5G/2.5G/1G/100M) with a 10GBASE-X
SFP+ fiber slot, it delivers non-blocking, wire-speed performance for seamless copper-to-fiber conversion.
Housed in a rugged IP40-rated casing with redundant power input, this converter operates reliably in
extreme temperatures (-40°C to 80°C). Its small form factor and robust design make it ideal for industrial
applications requiring high-speed 10G connectivity in demanding conditions.
Key Improvements:
- More concise & scannable – Easier to read while keeping critical specs.
- Stronger emphasis on compactness (a highlighted feature).
- Clearer technical breakdown (multi-rate RJ45, SFP+ compatibility).
- Consistent formatting for temperatures and standards.
Features
IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
12~48VDC Terminal Block Power Input
Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature
Supports DIN-Rail & Wall-mount installation

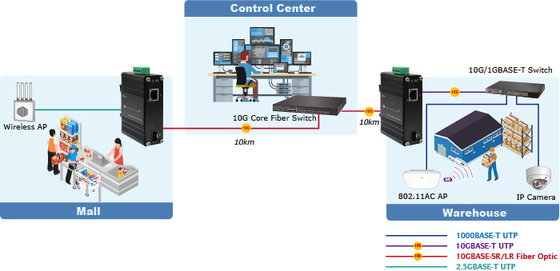

Application




















Technical Indexes


Ethernet
Standards:	IEEE 802.3u 100BASE-TX
	IEEE 802.3ab 1000BASE-T
	IEEE 802.3bz 2.5G/5GBASE-T
	IEEE 802.3an 10GBASE-T
	IEEE 802.3ae 10Gbps Ethernet
	IEEE 802.3x full-duplex flow control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	100Mbps
	1000Mbps
	2.5Gbps
	5Gbps
	10Gbps
Network Cables:	10G/5G/2.5G/1G/100M BASE-T: 　10G – Cat 6A/7 　5G – Cat 6/6A/7 　1G/2.5G – Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 　Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) 　EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 　50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 　9/125μm single-mode fiber optic cable, up to 80km
Processing Type:	Store-and-Forward
Fabric:	20Gbps
Jumbo Frame:	16K
Address Table:	9K entries, automatic source address learning and aging
Interface
Connector:	1 x RJ45
Optical Port:	1 x SFP+
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC, Redundant Power (4-pin Terminal Block)
Power Consumption:	5W Max
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
DIP Switch
4-digit DIP switch function	DIP	Function	Settings
	SW 1	Reserved	ON - Reserved	OFF - Reserved
	SW 2	Reserved	ON - Reserved	OFF - Reserved
	SW 3	Reserved	ON - Reserved	OFF - Reserved
	SW 4	Reserved	ON - Reserved	OFF - Reserved
Note: DIP Switch’s function can be customized based on client’s requirements.

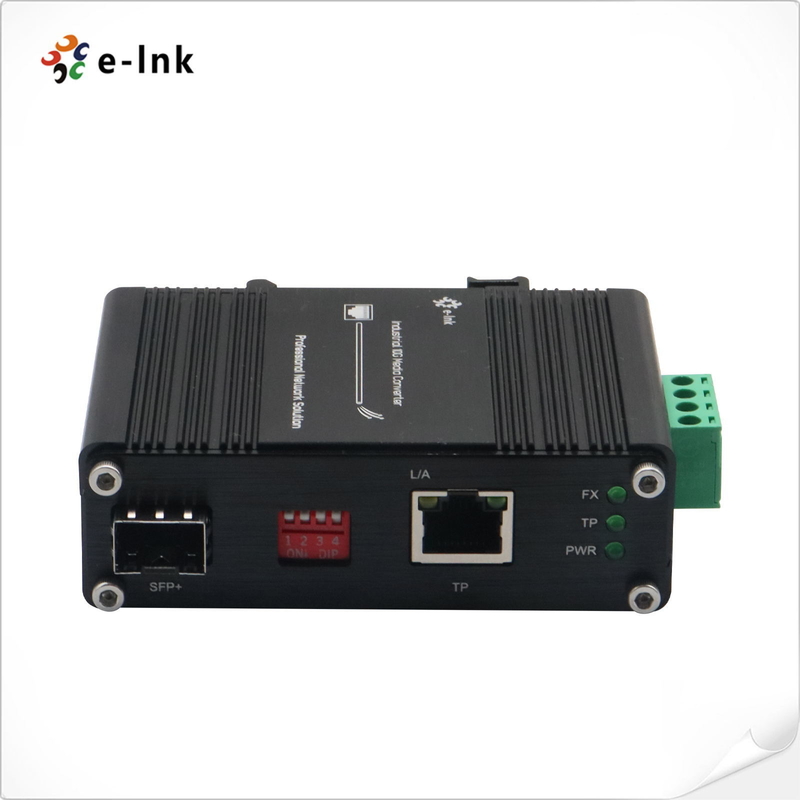

LED Indicators:
PWR:	Power Status
L/A:	Link/Activity at Ethernet Port
TP:	Ethernet Status
FX:	SFP+ Fiber Port Status

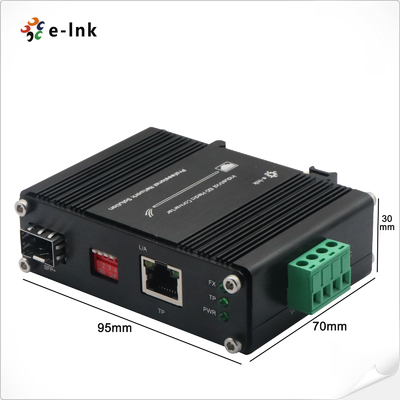

Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail/Wall-mount
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
