HDMI Fiber Extender with HDCP 1.4, RS232 Signal & bidirectional Audio for High-Resolution Video

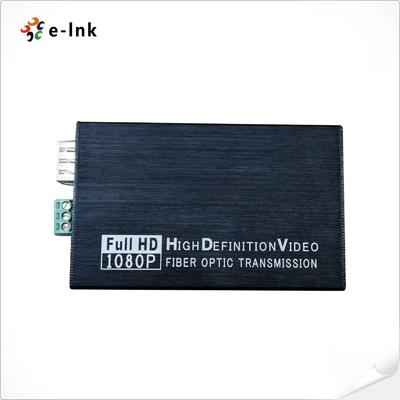

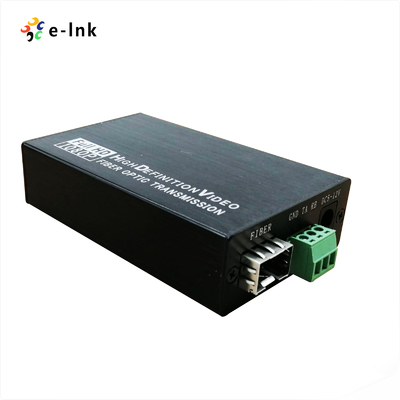

Large Image : HDMI Fiber Extender with HDCP 1.4, RS232 Signal & bidirectional Audio for High-Resolution Video

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	RoHS,CE,FCC
Model Number:	LNK-HF100DA

Payment & Shipping Terms:

Minimum Order Quantity:	1 Pair
Price:	Negotiation
Packaging Details:	HDMI Fiber Optic Extender Standard Export Package
Delivery Time:	2-7 Working Days
Payment Terms:	L/C, D/A, T/T, Western Union, MoneyGram,Paypal
Supply Ability:	1000

Contact Now

Detailed Product Description

Video Standard:	HDMI1.4B 3D; HDCP1.4	Interface:	SFP Model – LC Connector
Fiber Type:	Single-mode	Wavelength:	850nm/1310nm/1550nm
Power Dissipation:	MAX 4W	Dimension (LxWxH):	92 X 57 X 23 (mm)

1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender

Overview

The HDMI Fiber Optic Extender enables long-distance transmission of HDMI video, bidirectional audio, and RS232 signals over a single fiber optic cable. It supports HDMI 1.4 mode, fully compatible with HDMI 1.4b, 3D, and HDCP 1.4, delivering high-resolution video up to 1920×1200@60Hz. With excellent stability and strong security, this extender is ideal for applications requiring high-quality, long-distance HDMI transmission such as broadcasting, control rooms, and conference systems.

Features

► Transmits HDMI video signals, RS232 and audio up to 20km over a single fiber cable;

► Support resolution up to 1920*1200@60Hz ;

► Special support 1600*1200 @60HZ

► Support external bidirectional stereo audio transmission;

► Compliance with HDMI 1.4B 3D and HDCP 1.2 standard;

► Single-port HDMI 1.4b receiver

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play;

► Support EDID

Dimension & Size

Technical Indexes

Parameter		Description
Video	Standards	HDMI1.4B 3D; HDCP1.4
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Compliant	1080P@50/59.95/60Hz,( Max 19201200@60Hz) 1080P@23.98/24/29.97/30Hz, 1080i@50/59.94/60/Hz, 720P@23.98/24/29.97/30Hz, 720P@50/59.94/60Hz Special support 16001200 @60HZ
	Connector	Female HDMI type A
	Impedance	100Ω
	HDMI Cable Range	<5Meter (Resolution up to 1920*1200@60Hz)
Audio	Interface	3.5MM external stereo audio
	Transmitter	1Ch Input + 1Ch Ouptut
	Receiver	1Ch Input + 1Ch Ouptut
RS232	Interface	3-Pin Terminal Block
	Baud Rate	≤115200
	Data Bits	8 bits
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	850nm/1310nm/1550nm
	Interface bandwidth	3Gbps
	Transmission distance	Transmission@1920*1200@60Hz Multi-mode fiber: <500M Single-mode fiber: 20km
IndexOther	Power supply	The power adapter: DC 5~12V
	Power dissipation	MAX 4W
	Temperature	Operating: -20℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	92 x 57 x 23 (mm)

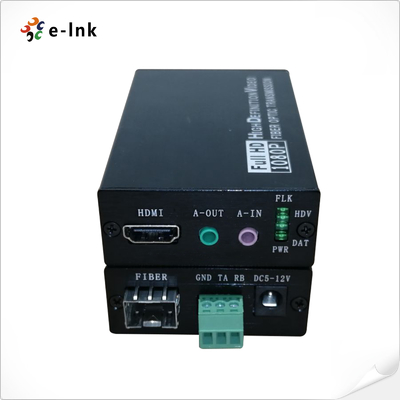

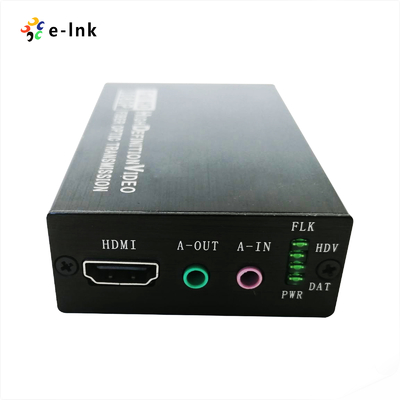

Indicator & LED

Ordering Information

Model	Description
LNK-HF100DA	1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Multi-mode fiber, 500m, including 1 transmitter & 1 receiver, used by pairs
LNK-HF100DA-20	1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Single-mode fiber, 20km, including 1 transmitter & 1 receiver, used by pairs

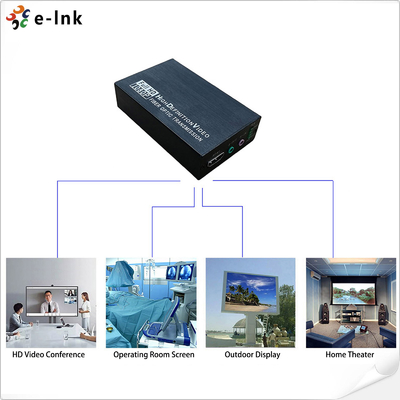

Application
