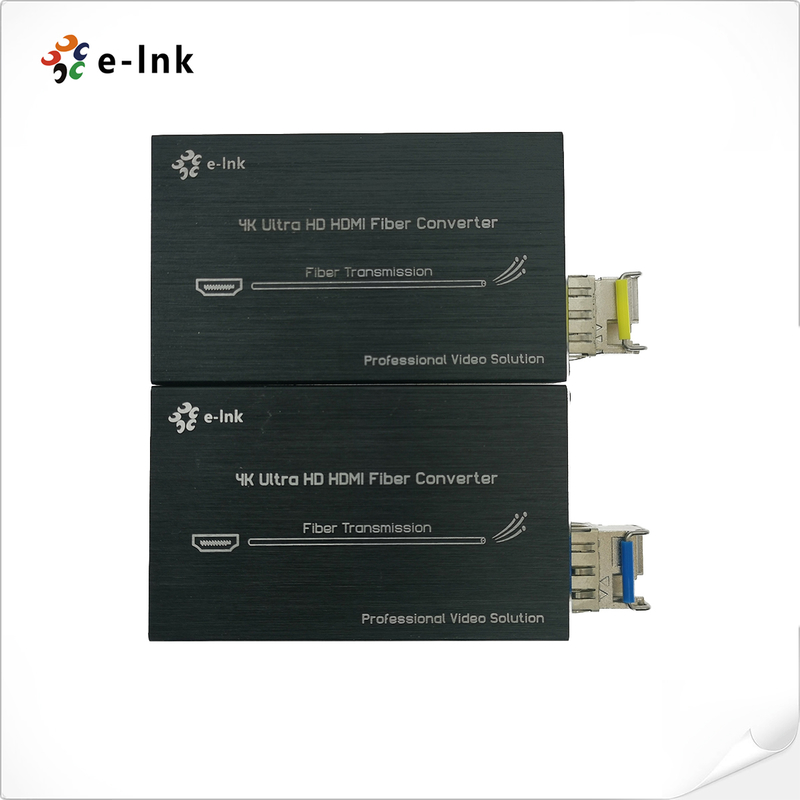

Micro Mini 4K HDMI Fiber Extender with External Audio
Mini 4K HDMI Fiber Extender with External Audio Overview
The 4K HDMI Fiber Extender delivers uncompressed, lossless HDMI 1.4a video and stereo audio over a single optical fiber for distances up to 80km, supporting resolutions up to 4Kx2K. The transmitter converts HDMI into a 10Gbps serial data stream for fiber transmission, while the receiver restores it to HDMI. RoHS compliant and lead-free, this extender ensures high stability and strong anti-interference performance, making it ideal for large-screen displays, conference systems, and home entertainment.
Mini 4K HDMI Fiber Extender with External Audio Features
- HDMI 1.4a & HDCP 1.2: Fully compliant with HDMI 1.4a and HDCP 1.2 standards for secure, high-quality content transmission
- Uncompressed Transmission: Zero latency, no signal loss, ensuring pristine video and audio quality
- Signal Support: Supports DDC, CEC, and HPD signals for seamless communication between devices
- High Data Rate: Up to 10.3 Gbps for smooth, high-speed data transfer
- Long Distance Transmission: Transmits up to 80 km over fiber optic cable for extended reach
- 4K Resolution Support: Supports all modes up to 4K*2K at 30Hz for high-definition visuals
- External Stereo Audio: Supports external stereo audio for an enhanced multimedia experience
- Hot-Pluggable: Easy installation with no need for device shutdown, and resistant to EMI/RFI interference
- Compact Design: Miniature form factor for simple and space-efficient installation
- Reliable Optics: 850nm VCSEL and PIN photo detector for high-performance fiber optics
- Wide Temperature Range: Operates within a case temperature range of -10°C to 60°C for diverse environments
Mini 4K HDMI Fiber Extender with External Audio Technical Indexes
| Type of Extender |
Fiber Transmitter for HDMI signal over Optical Fiber Cable |
| Input Signals |
HDMI |
| Connector |
Female HDMI type A |
| Signal Support |
HDMI 1.4a HDMI format standard and HDCP compliant |
| Video Support |
1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz |
| Audio Support |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Chroma Subsampling |
Color space, 420, 400 |
| Dynamic EDID |
Plug & Play, no need to learn |

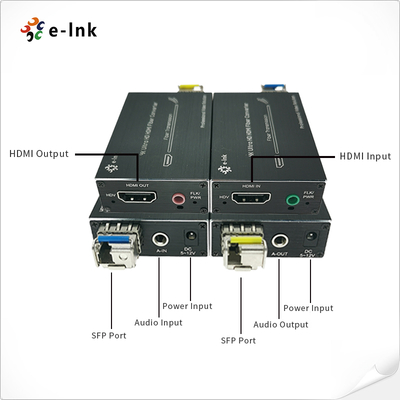

| Audio Interface |
3.5MM external stereo audio |
| Fiber Connector |
SFP/LC |
| Bandwidth |
10.3Gbps |
| Transmission Distance |
300m (Over OM3 Fiber) |
| Up to 80km (Over Single-mode Fiber) |
| Operating Temperature |
-10 to + 60°C |
| Storage Temperature |
-20 to + 85°C |
| Humidity |
5% to 90% RH (non-condensing) |
| MTBF |
100,000 hours |
| Dimension (WxDxH) |
2.87 x 1.73 x 0.69in (73x44x17mm) |
| Weight |
60g / 0.13 lb |
| Power Supply |
5~12V DC |
| Power dissipation |
<5W |
| Safety Approvals |
CE, FCC, Rohs |
Mini 4K HDMI Fiber Extender with External Audio Ordering Information
| Model |
Description |
|
| LNK-MHA4K-MM |
Micro Mini HDMI Fiber Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
| LNK- MHA4K-S20 |
Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
| LNK- MHA4K-S40 |
Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
| LNK- MHA4K-80 |
Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
| LNK- MHA4K-S80 |
Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
Mini 4K HDMI Fiber Extender with External Audio Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
