Mini HDMI Over CAT5/CAT6 Extender with IR - 165ft (50m) HDCP 1.3

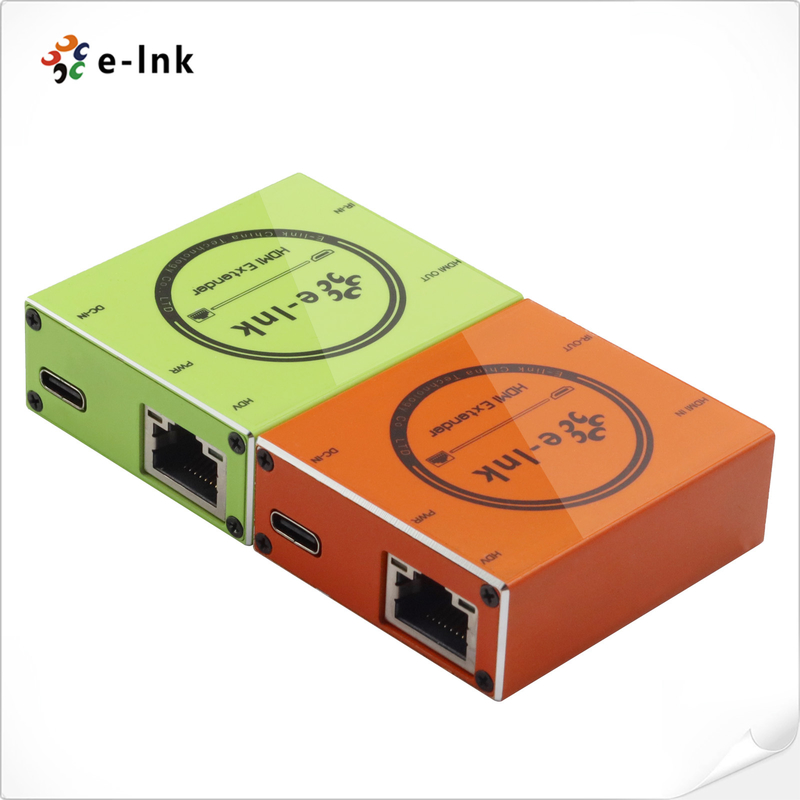

Large Image : Mini HDMI Over CAT5/CAT6 Extender with IR - 165ft (50m) HDCP 1.3

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-MHDE-P50

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	Negotiation
Packaging Details:	HDMI Extender Standard Export Package
Delivery Time:	7 days
Payment Terms:	Western Union, L/C, T/T, MoneyGram
Supply Ability:	2000 pairs/month

Contact Now

Detailed Product Description

Keywords:	Best HDMI Extender Over Cat6	Resolution:	Max 1920X1080@60Hz
Standards:	HDMI 1.4; HDCP 1.3	Power Supply:	DC 5~12V
Housing Material:	Aluminum	Dimension:	51x45x18mm
Highlight:	Mini HDMI Over CAT6 Extender , Mini HDMI Over CAT5 Extender , 50m Mini HDMI CAT5 Extender

Mini HDMI Over CAT5/CAT6 Extender with IR - 165ft (50m)

Overview

The LNK-MHDE-P50 Mini HDMI Extender enables full HD 1080p@60Hz signal transmission over

CAT5e/6 UTP cable up to 50 meters, providing a point-to-point extension solution. Featuring built-in

EDID for enhanced compatibility and stable performance, this compact TX & RX pair ensures

seamless HDMI signal transmission.

Ideal for HD conferencing, video production, digital signage, and multimedia education, this extender

offers long-distance transmission, cost-efficiency, easy installation, and reliable performance—making

it a practical choice for professional AV applications.

Features

Aluminum shell, ultra compact size and Slim design, more beautiful than other designs, strong

anti-interference

Support EDID pass-through

The highest resolutions supported is up to 1080P@60Hz

Support EDID pass-through

Application

Mini HDMI Over CAT5/CAT6 Extender with IR - 165ft (50m) HDCP 1.3 0

Technical Indexes

Parameter		Description
Video	Standards	HDMI 1.4; HDCP 1.3
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	Max: 1920X1080@60Hz
	Connector	HDMI-A
	Impedance	100Ω
IR	Interface	3.5mm earphone seat
	Signal direction	Unidirectional
	Signal type	Digital
	IR frequency	38kHz
Ethernet	Interface	RJ45(568B)
	Transmission distance	720P, UTP CAT6---80m
	Transmission distance	1080P, UTP CAT6---50m
Other	Power supply	DC 5~12V
	Power dissipation	MAX 3W
	Temperature	Operating: -5℃ ~ +50℃
	Humidity	Operating: 5% ~ 90%
	Dimension	51x45x18mm
	Housing Material	Aluminum
	The warranty	1 year warranty

Ordering Information

Model	Description of product
LNK-MHDE-P50	HDMI Over CAT5/CAT6 Extender with IR - 165 ft (50m), including 1 Transmitter & 1 Receiver, used by pairs
