4K HDMI Fiber Optic Extender
4K HDMI Fiber Optic Extender Overview

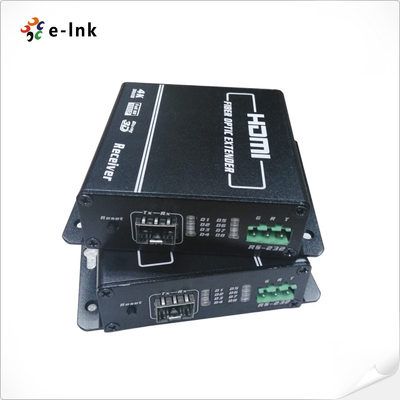

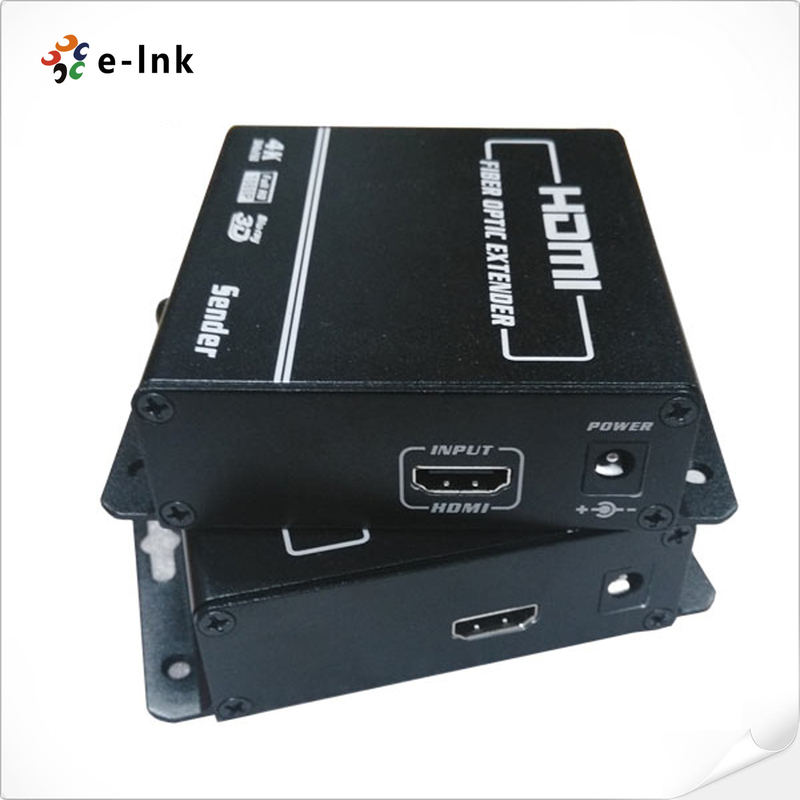

The LNK-H4K100 represents a high-performance fiber optic extension system engineered for long-distance transmission of ultra-high-definition HDMI and 3D visual signals. Utilizing advanced fiber optic technology, this extender reliably delivers pristine video quality with native 4K UHD resolution support up to 3840×2160 at 30Hz through a single optical cable.
This extension solution eliminates the traditional distance limitations of copper-based HDMI cables while maintaining complete signal integrity across extended ranges. The system's exceptional stability ensures consistent performance in demanding environments, making it particularly suitable for professional installations where signal reliability is paramount.
Built with robust security features, the LNK-H4K100 prevents signal interception or electromagnetic interference, providing secure transmission for sensitive applications. Its versatile compatibility extends to various digital signage, control room, broadcast, and presentation scenarios where maintaining original source quality over long distances is essential.
4K HDMI Fiber Optic Extender Features
- Extended Fiber Optic Transmission Range
Capable of transmitting uncompressed HDMI signals over distances ranging from 2 kilometers to 60 kilometers via a single fiber optic strand, providing flexible solutions for both medium and long-range installation requirements.
- Ultra High Definition Video Support
Supports advanced video formats including 4K UHD resolution at 3840×2160@30Hz with comprehensive 3D signal compatibility, ensuring premium visual performance for demanding presentation and display applications.
- Industry Standard Compliance
Fully complies with HDMI 1.4 specification and HDCP 1.2 content protection protocol, guaranteeing broad device compatibility and secure transmission of protected digital content across various source and display equipment.
- Intelligent EDID Management System
Features advanced EDID handshake technology that automatically negotiates and optimizes signal parameters between source devices and displays, ensuring seamless compatibility and eliminating configuration conflicts.
- Advanced Signal Processing Technology
Incorporates proprietary signal conditioning circuitry that automatically stabilizes and enhances image quality, delivering exceptionally smooth video playback with enhanced clarity and color accuracy.
- Comprehensive Electrostatic Protection
Integrated ESD protection system provides robust safeguarding against electrostatic discharge events up to 8kV, significantly enhancing equipment reliability and longevity in various operating environments.
- Simplified Installation Operation
Designed for true plug-and-play deployment with zero software configuration required, enabling rapid system integration and immediate operation upon connection without technical expertise.
- Low-Latency Signal Transmission
Maintains ultra-low latency characteristics throughout the entire transmission path, ensuring real-time video synchronization critical for live production and interactive display applications.
- Universal Power Supply Compatibility
Supports wide voltage input range from 100-240V AC with dual power redundancy option, ensuring stable operation across different regional power standards and enhanced system reliability.
4K HDMI Fiber Optic Extender Technical Indexes
| Parameter |
Description |
| Video |
Standards |
HDMI 1.4; HDCP 1.2 |
| Maximum pixel clock |
340MHz |
| Maximum data rate |
10.2Gbps |
| Resolution range |
Up to 3840*2160@30Hz |
| Connector |
Female HDMI type A |
| Impedance |
100Ω |
| Optical fiber |
Interface |
SFP model – LC connector |
| Fiber type |
Multi-mode / single-mode (optional) |
| Wavelength |
Multi-mode 850nm /
Single-mode 1310nm(optional)
|
| Interface bandwidth |
10Gbps |
| Transmission distance |
OM3 multi-mode fiber: maximum 300m,
Single-mode fiber: standard 2km；maximum 60km
|
| Other |
Power supply |
The power adapter: DC 5V/2A |
| Power dissipation |
Max 4W |
| Temperature |
Operating: -5℃ ~ +70℃ |
| Humidity |
Operating: 5% ~ 90% |
| Dimension |
104*89*28mm |
4K HDMI Fiber Optic Extender Ordering Information
| Item |
Description |
|
| LNK-H4K100 |
4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Multimode, LC, 300m, including 1 transmitter & 1 receiver, used by pairs |
| LNK-H4K100S-10 |
4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Single mode, LC, 10km, including 1 transmitter & 1 receiver, used by pairs |
| LNK-H4K100S-40 |
4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Single mode, LC, 40km, including 1 transmitter & 1 receiver, used by pairs |
4K HDMI Fiber Optic Extender Application
-
Professional Broadcast and Live Production Environments
Enables reliable transmission of 4K UHD signals with ultra-low latency for live event production, broadcast studios, and outside broadcasting (OB) vehicles. Supports real-time video distribution across 60km fiber distances while maintaining full HDMI 1.4/HDCP 1.2 compliance.
-
Large-Scale Digital Signage and Video Wall Systems
Facilitates long-distance signal distribution for digital signage networks, video wall arrays, and interactive displays in shopping malls, airports, and corporate campuses. Ensures stable 3840×2160 resolution delivery across distributed display locations.
-
Command and Control Room Visualization Systems
Provides secure, high-resolution video extension for mission-critical operations in security centers, network operation facilities, and industrial control rooms. Features ESD protection and automatic signal stabilization for 24/7 continuous operation.
-
Educational and Corporate Presentation Environments
Supports seamless integration of 4K source devices across lecture halls, conference rooms, and training facilities. Plug-and-play installation simplifies deployment while ensuring compatibility with various presentation equipment and 3D capable displays.
-
Entertainment and Hospitality Venues
Delivers extended 4K and 3D signal transmission for cinema applications, luxury hotels, and entertainment complexes. The fiber-based solution eliminates electromagnetic interference in densely wired environments while supporting content protection protocols.
-
Medical Imaging and Healthcare Visualization
Enables precise video reproduction for diagnostic imaging systems, surgical displays, and medical training facilities. Maintains image integrity and color accuracy across extended fiber distances up to 60km.
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing
product consultation, remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
