Mini Industrial Managed 5-Port Gigabit Ethernet Switch
Mini Industrial Managed 5-Port Ethernet Switch Overview

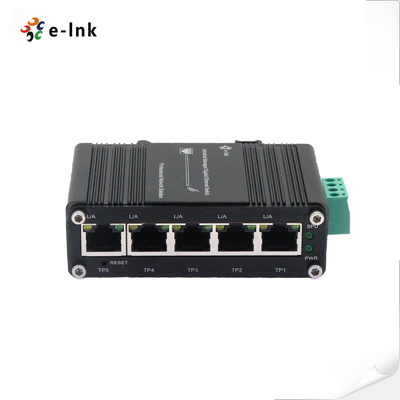

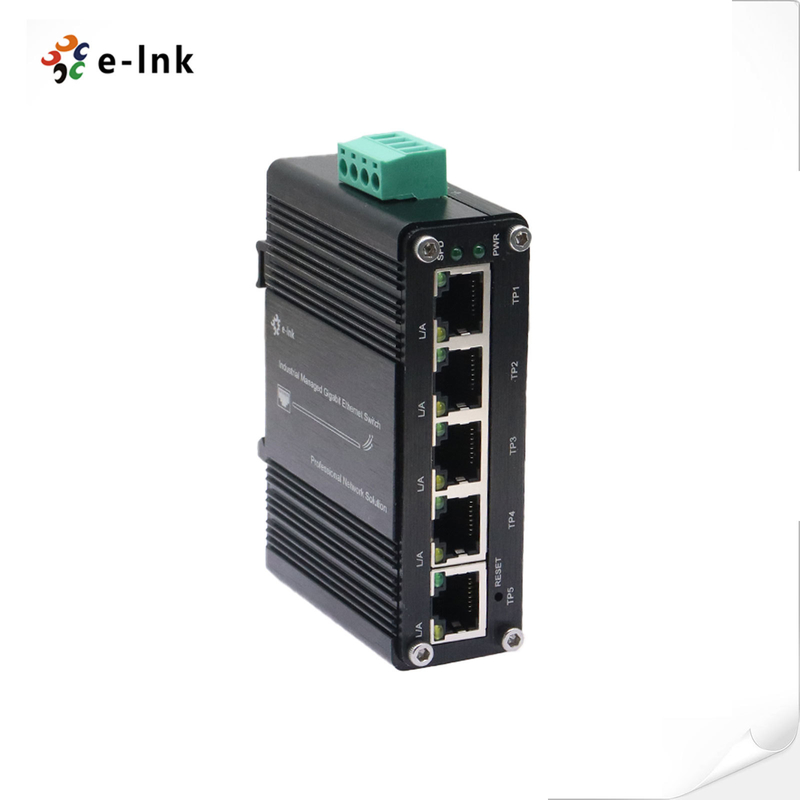

The LNK-IMC005GM is a Mini Industrial Managed 5-Port Gigabit Ethernet Switch designed for
reliable operation in harsh industrial environments. Featuring 5 x 10/100/1000BASE-T ports
and supporting a wide 12~48V DC power input, it ensures stable performance under vibration,
shock, and extreme temperatures.
Built to industrial-grade standards, the switch complies with CE and FCC certifications and has
passed a 100% burn-in test for guaranteed durability. Its rugged IP40-rated metal housing with
DIN-rail or wall mounting options offers flexibility for deployment in space-constrained environments.
With an extended operating temperature range of -40°C to 80°C and a fanless design,
the LNK-IMC005GM delivers silent, reliable performance in demanding applications such as
industrial automation, intelligent transportation systems (ITS), utilities, and military projects
—where standard commercial products cannot perform.
Mini Industrial Managed 5-Port Ethernet Switch Features
- 5 Ports: Supports 10/100/1000BASE-T RJ45 with Auto-MDI/MDI-X for flexible network configurations
- Auto-Negotiation: Automatically negotiates 10/100 Mbps in half/full duplex, and 1000 Mbps in full duplex for optimal network performance
- Wide Power Input Range: 12-48V DC input for versatile power options
- Flow Control: IEEE 802.3x flow control for reliable data transmission
- WEB Management: Intuitive web-based interface for easy configuration and monitoring
- Energy-Efficient: Complies with IEEE 802.3az Energy Efficient Ethernet (EEE) for reduced power consumption
- Mounting Flexibility: Supports DIN-Rail and Wall-mount installation for versatile deployment options
- Rugged Design: Industry-standard IP40-rated dustproof and durable metal case
- Wide Operating Temperature: -40°C to 80°C (-40°F to 176°F) for harsh environments
Mini Industrial Managed 5-Port Ethernet Switch Technical Indexes
| Ethernet |
| Standards: |
IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet |
| IEEE 802.3ab Gigabit Ethernet |
| IEEE 802.3x Full-Duplex Flow Control |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE 802.3af/at Optional |
| Forward & Filtering Rate: |
14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer: |
1Mbits |
| Packet Length: |
10Kbytes |
| MAC Address Table: |
8K |
| Switch Fabric: |
10Gbps/non-blocking |
| Exchange Property |
Backplane bandwidth: 10Gbps;
Packet forwarding rate: 14.88Mpps
|
| Connector: |
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| Environmental |
| Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF |
> 200,000 hrs |
| Electrical and Mechanical |
| Input Power: |
12~48V DC (Terminal Block) |
| Power Consumption: |
<6W |
| Power Input Overload: |
Automatic Resettable |
| Reverse Polarity: |
Present |
| Reset Button |
Support |
| Dimensions (WxDxH): |
95 x 70 x 29 mm |
| Weight: |
0.25KG |
| Casing: |
Aluminum Case |
| Mounting Options: |
DIN-Rail / Wall-mount |
| LED Indicators: |
| PWR |
Power |
| L/A |
Link/Activity |
| SPD |
Data Rate |
| WEB Management Features |
| System Settings |
Device Info; Account Settings; Restoring; Reboot; Upgrade |
| Port Management |
Port Settings; Port Mirroring; Port Statistics; Rate Limit |
| VLAN Settings |
802.1Q VLAN; PVID Settings; Hybrid Port |
| QOS Settings |
Priority Selection; Scheduling Mode |
| Loop Detection |
Support |
| Saving Settings |
Get Configuration; Restore Configuration; Saving Configuration |
| Default IP |
192.168.40.253 |
| Default User Name |
admin |
| Default Password |
admin |
| Regulatory Approvals |
| ISO9001 |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55032:2017 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
Mini Industrial Managed 5-Port Ethernet Switch Ordering Information
| Model |
Description |
| LNK-IMC005GM |
Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch |
| Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► Power Supply is to be purchased separately
► Recommend MeanWell MDR-20-24
|

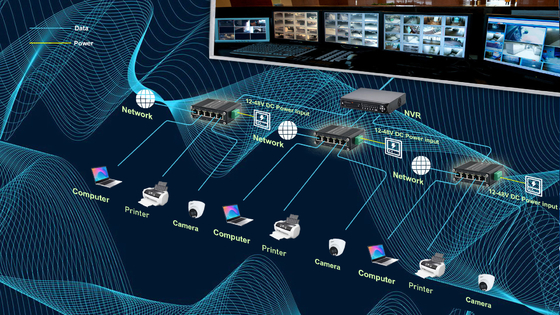

Mini Industrial Managed 5-Port Ethernet Switch Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
