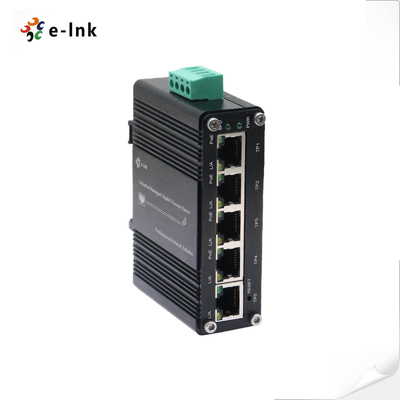

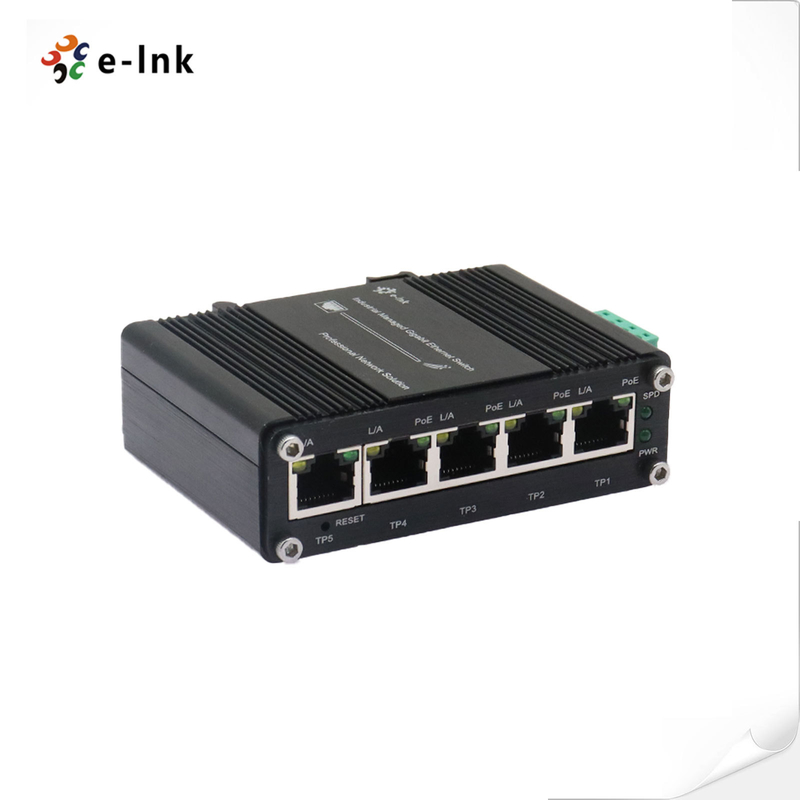

PoE+ Industrial Switch 5 Port Managed Web Interface 120W Total Power Budget

Large Image : PoE+ Industrial Switch 5 Port Managed Web Interface 120W Total Power Budget

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE/FCC/Rohs/ISO9001
Model Number:	LNK-IMC005GPM Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	US$39.9/pc
Packaging Details:	Industrial Managed Gigabit PoE Switch Standard export package
Delivery Time:	2-7 days
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Input Power::	12~48V DC (Terminal Block)	Power Consumption::	<125W (Non-PoE<6W)
Size:	95 X 70 X 29 Mm	Mounting Options:	DIN-Rail / Wall-mount
Weight::	0.25Kg	Casing:	Aluminum Case
Highlight:	Managed Gigabit PoE Switch , 12–48V DC PoE Switch , 1 Uplink Industrial Gigabit PoE Switch

Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch

Mini Idustrial Managed 5-Port Switch Overview

The LNK-IMC005GPM Series is a compact yet robust industrial-grade managed Ethernet switch, integrating 4x10/100/1000BASE-T PoE+ ports compliant with IEEE 802.3at and one additional 10/100/1000T uplink port. Designed for demanding operational environments, it supports a wide DC input voltage range of 12–48V, ensuring stable performance across diverse industrial settings.

Built to meet stringent industrial standards, this switch delivers exceptional reliability under extreme conditions, including resistance to vibration, shock, and a broad operating temperature range from -40°C to 80°C. Encased in a rugged IP40-rated housing suitable for DIN rail or wall mounting, it guarantees durability in harsh applications such as industrial automation, intelligent transportation systems (ITS), and mission-critical military or utility networks.

Fully compliant with CE and FCC certifications, each unit undergoes rigorous 100% burn-in testing to validate long-term operational integrity. Ideal for cost-effective deployment in challenging environments, the LNK-IMC005GPM ensures seamless and secure Ethernet connectivity where commercial-grade equipment falls short.

Mini Idustrial Managed 5-Port Switch Features

High-Density Gigabit PoE+ Port Configuration
Equipped with five auto-negotiation 10/100/1000BASE-T RJ45 ports, including four IEEE 802.3at PoE+ enabled interfaces (Ports 1-4) for simultaneous data and power delivery to connected devices.
Adaptive Wide Voltage Power Supply
Supports broad-range 12-48V DC power input with intelligent power management, automatically optimizing PoE budget allocation according to input voltage levels and connected device requirements.
Advanced Traffic Management Capability
Implements IEEE 802.3x flow control mechanism with full-duplex backpressure operation, ensuring reliable data transmission and preventing packet loss in bandwidth-intensive industrial applications.
Flexible Network Administration Interface
Features intuitive web-based management platform accessible through standard browsers, enabling remote configuration, real-time monitoring, and system maintenance without additional software installation.
Versatile Physical Mounting Options
Designed with universal DIN-rail attachment and wall-mounting capabilities, allowing secure installation in control cabinets, electrical enclosures, or direct surface mounting in space-constrained industrial environments.
Intelligent PoE Power Budget Management
Delivers optimized power distribution with maximum output budgets of 120W (48V input), 90W (24V input), and 60W (12V input), automatically prioritizing connected devices based on power requirements and availability.
Extended Temperature Operation Range
Maintains stable performance across extreme temperatures from -40°C to 80°C (-40°F to 176°F), ensuring reliability in both arctic conditions and high-temperature industrial settings without additional cooling systems.
Industrial-Grade Connection Reliability
Incorporates auto-MDI/MDI-X crossover detection on all RJ45 interfaces, eliminating the need for special cables while providing automatic polarity correction for simplified installation and maintenance.
Smart PoE Port Management
Enables individual port configuration for PoE power scheduling, remote device reboot capability, and power priority settings through the web management interface, optimizing energy usage in multi-device deployments.

Mini Idustrial Managed 5-Port Switch Technical Indexes

Ethernet

Standards:

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3at Power over Ethernet Plus PSE

IEEE 802.3af Power over Ethernet Plus

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer:

1Mbits

Packet Length:

10Kbytes

MAC Address Table:

Switch Fabric:

10Gbps/non-blocking

Exchange Property

Backplane bandwidth: 20Gbps;
Packet forwarding rate: 14.88Mpps

Connector:

5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

4 ports with 802.3at PoE+ injector function (Ports 1 to 4)

PoE (Power over Ethernet)

Standard:

IEEE802.3af/at

Port:

Power Pin Assignment

1/2(+), 3/6(-) or4/5(+), 7/8(-)

PoE Budget:

Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

> 200,000 hrs

Electrical and Mechanical

Input Power:

12~48VDC (Terminal Block)

Power Consumption:

<125W (Non-PoE<6W)

Power Input Overload:

Automatic Resettable

Reset Button

Support

Reverse Polarity:

Present

Dimensions (WxDxH):

95 x 70x 29mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

LED Indicators:

Power

Link/Activity

PoE Status

WEB Management Features
System Settings	Device Info; Account Settings; Restoring; Reboot; Upgrade
Port Management	Port Settings; Port Mirroring; Port Statistics; Rate Limit
VLAN Settings	802.1Q VLAN; PVID Settings; Hybrid Port
QOS Settings	Priority Selection; Scheduling Mode
Loop Detection	Support
Saving Settings	Get Configuration; Restore Configuration; Saving Configuration
Default IP	192.168.40.253
Default User Name	admin
Default Password	admin

Regulatory Approvals

ISO9001

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55032:2017

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Mini Idustrial Managed 5-Port Switch Order Information

Model	Description
LNK-IMC005GPM	Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately ► Recommend MeanWell NDR-120-48

Mini Idustrial Managed 5-Port Switch Application

Industrial Automation & Control Networks
Deployed as a key Network Access Switch within Factory Automation Cells, providing both Gigabit Data Uplinks and IEEE 802.3at PoE+ power to critical devices such as IP Cameras for machine vision, Programmable Logic Controllers (PLCs), Industrial Wireless Access Points, and IP-based I/O Modules, ensuring seamless integration of power and data on a single infrastructure.
Intelligent Transportation Systems (ITS)
Ideal for Roadside Communication Cabinets and Traffic Control Enclosures, where it delivers robust connectivity and power to Vehicle Detection Sensors, Variable Message Signs, Traffic Signal Controllers, and License Plate Recognition Cameras, operating reliably within the extended -40°C to 80°C temperature range.
Outdoor & Harsh Environment Deployments
Serves as a Ruggedized Networking Node in Mining Operations, Oil & Gas Facilities, and Utility Substations. Its DIN-Rail Mountable design, IP40 Protection, and wide voltage input ensure stable operation in environments with extreme temperatures, vibration, and electrical noise, supporting Remote Telemetry Units (RTUs) and Environmental Monitoring Sensors.
Power-over-Ethernet (PoE) Centric Deployments
Functions as a compact PoE Power Sourcing Equipment (PSE) for Security and Surveillance Systems, efficiently managing a centralized PoE Budget to power multiple high-wattage devices like PTZ Cameras and Access Control Systems via standard Ethernet cabling, simplifying installation and reducing overall infrastructure costs.
Mission-Critical Military & Utility Networks
Meets the stringent requirements of Tactical Networks and SCADA Systems for Electric Power Utilities and Water/Wastewater Treatment Plants. Its Wide Operating Temperature range, CE/FCC Compliance, and 100% Burn-in Testing make it suitable for applications where environmental conditions exceed commercial specifications and network reliability is paramount.
