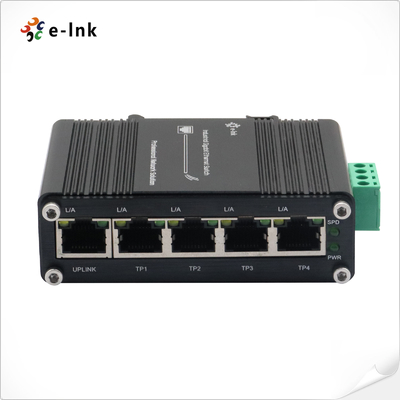

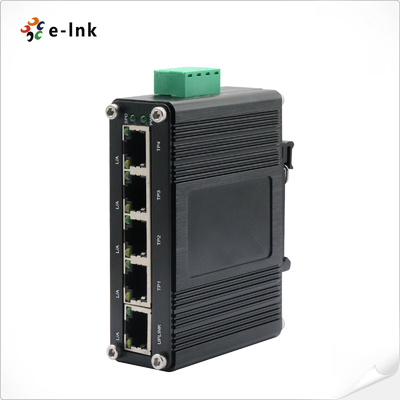

Mini Industrial 5-Port Gigabit (PoE) Ethernet Switch
Mini Industrial 5-Port Ethernet Switch Overview
Designed for mission-critical operations in challenging settings, this compact 5-port Gigabit Industrial Ethernet Switch delivers robust networking performance where reliability matters most. Engineered with industrial-grade components, it features five auto-negotiation 10/100/1000Mbps RJ45 ports that seamlessly integrate both legacy and modern devices into unified network infrastructures. The switch's wide voltage input range (12-48V DC) ensures uninterrupted operation despite power fluctuations commonly encountered in industrial settings.
Constructed with a heavy-duty metal housing and advanced circuit protection, it withstands substantial vibration, mechanical shock, and extreme temperature variations while maintaining data integrity. Having passed rigorous quality validation including 100% burn-in testing and certification to CE/FCC standards, this switch guarantees long-term stability in continuous operation scenarios. Its plug-and-play functionality enables rapid deployment in automation control systems, intelligent transportation networks, and energy management applications without configuration complexity. The unmanaged design combined with DIN-rail mounting capability makes it particularly suitable for space-constrained industrial cabinets while providing cost-efficient connectivity for IIoT devices, machine vision systems, and distributed sensor networks across manufacturing, oil and gas, and outdoor infrastructure projects.
Mini Industrial 5-Port Ethernet Switch Features
- Auto-Sensing Gigabit Ports - Five 10/100/1000BASE-T interfaces with automatic MDI/MDI-X detection eliminate cable configuration requirements and simplify field installation
- Intelligent Speed Negotiation - Advanced auto-negotiation technology dynamically optimizes transmission parameters across 10/100M half/full duplex and Gigabit full duplex operations
- Broad Power Compatibility - 12-48V DC wide-range input ensures consistent performance with industrial power supplies, solar systems, and battery backup configurations
- Efficient Traffic Management - Implements 802.3x flow control mechanism to prevent network congestion and maintain data integrity during peak usage periods
- Configurable PoE Deployment - Optional Power over Ethernet capability provides flexible power sourcing for connected devices without requiring hardware modifications
- Energy Efficient Operation - Compliant with IEEE 802.3az EEE standards, significantly reducing power consumption during low-data activity while maintaining network readiness
- Adaptive Mounting System - Compatible with standard DIN-rail and wall-mount installations for seamless integration into control panels and compact industrial spaces
- Enhanced Environmental Protection - IP40-rated sealed metal housing provides superior dust resistance and mechanical durability in challenging operating conditions
- Extended Thermal Tolerance - Maintains full operational stability across -40°C to 80°C temperature range, ensuring reliability in both arctic and desert climates
Mini Industrial 5-Port Ethernet Switch Technical Indexes
| Ethernet |
| Standards: |
IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet |
| IEEE 802.3ab Gigabit Ethernet |
| IEEE 802.3x Full-Duplex Flow Control |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE 802.3af/at Optional |
| Forward & Filtering Rate: |
14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer: |
1Mbits |
| Packet Length: |
10Kbytes |
| MAC Address Table: |
8K |
| Switch Fabric: |
10Gbps/non-blocking |
| Exchange Property |
Backplane bandwidth: 10Gbps;
Packet forwarding rate: 14.88Mpps
|
| Connector: |
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| Environmental |
| Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF |
> 200,000 hrs |
| Electrical and Mechanical |
| Input Power: |
12~48VDC (Terminal Block) |
| Power Consumption: |
<6W (PoE In Use: <125W) |
| Power Input Overload: |
Automatic Resettable |
| Reverse Polarity: |
Present |
| Dimensions (WxDxH): |
95 x 70x 29m |
| Weight: |
0.25Kg |
| Casing: |
Aluminum Case |
| Mounting Options: |
DIN-Rail / Wall-mount |
| LED Indicators: |
| PWR |
Power |
| L/A |
Link/Activity |
| SPD |
Data Rate |
| Regulatory Approvals |
| ISO9001 |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55032:2017 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
| IEC 61000-4-8: 2009 (PFMF) |
Mini Industrial 5-Port Ethernet Switch Ordeing Information
| Model |
Description |
| LNK-IMC005G |
Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch |
| LNK-IMC005GP |
Mini Industrial 4-Port 10/100/1000T PoE + 1- Uplink Port Ethernet Switch |
| Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► Power Supply is to be purchased separately |
Mini Industrial 5-Port Ethernet Switch Application
Industrial Automation Systems - Provides deterministic connectivity for PLCs, motor drives, HMI panels, and distributed I/O modules in automotive manufacturing and process control facilities, with vibration resistance ensuring signal integrity
• Intelligent Transportation Networks - Enables traffic management camera systems, variable message signs, and vehicle detection sensors deployment along highways and intersections, maintaining operation through extreme weather conditions
• Energy Infrastructure Monitoring - Supports remote terminal units, power quality meters, and condition monitoring equipment in substations and renewable energy farms with wide voltage input compatibility
• Urban Security Deployments - Powers multi-camera surveillance networks, access control systems, and perimeter detection devices across smart city applications using PoE functionality
• Rail and Mass Transit Communications - Facilitates passenger information displays, onboard CCTV systems, and station security equipment with ruggedized construction for rolling stock applications
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service,
providing product consultation, remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
