4K 30Hz HDMI 1.4 Video Over Fiber Extender Single Core Multi Mode LC Connector

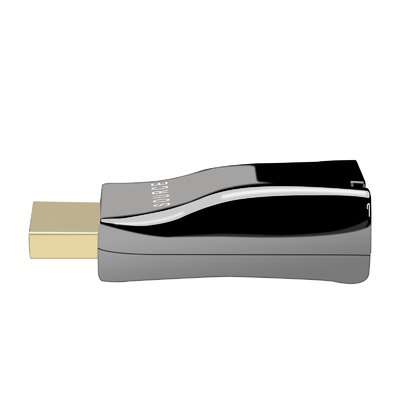

Large Image : 4K 30Hz HDMI 1.4 Video Over Fiber Extender Single Core Multi Mode LC Connector

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-107M

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	Negotiation
Packaging Details:	4K HDMI Fiber Transmitter Receiver Standard Export Package
Delivery Time:	7 working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram
Supply Ability:	2000 pcs/per month

Contact Now

Detailed Product Description

Compatibility:	HDMI 1.4, HDCP 1.2	Transmission Mode:	Multi-mode Single Fiber
Fiber Cable:	OM3 Multi Mode, Up To 984ft (300M)	Power Supply:	5VDC USB Power Input
Video Resolution:	Up To 4K@30Hz	Transmission Rate:	Up To 10.2Gbps
Dimension:	57x16x14mm (WxDxH)	Weight:	0.1 Kg
Highlight:	LC Connector HDMI 1.4 Extender , Single Core HDMI 1.4 Extender , 30Hz HDMI 1.4 Extender

Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender

Overview

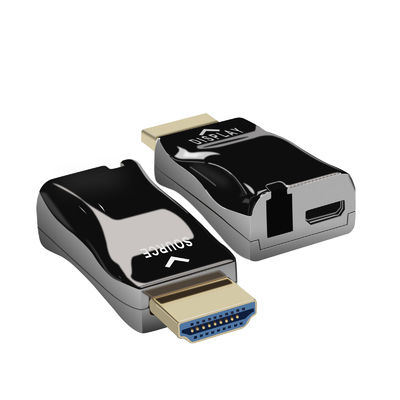

LNK-107M 4K HDMI Fiber Extender (Single Fiber) compact plug-and-play solution extends 4K@30Hz

(HDMI 1.4) signals up to 300m over single-core multimode fiber (850nm) with zero quality loss. The

matched transmitter/receiver set (LNK-107M-T/R) ensures:

✓ True 4K UHD (3840×2160)
✓ 10Gb/s uncompressed transmission
✓ EMI/RFI immune fiber optic security
✓ RoHS compliant (EU/China standards)

Perfect for:
• Digital signage • Conference rooms • Home theaters

(Industrial-grade stability in palm-sized units)

Features

Supports up to 300m Transmission Distance with OM3 multimode fiber

Low power consumption, only the RX module (Display side) needs external power supply

Adopt WDM technology to realize high-definition audio and video transmission through a single OM3

multi-mode optical fiber

Uses Small, Reliable LC Optical Connector

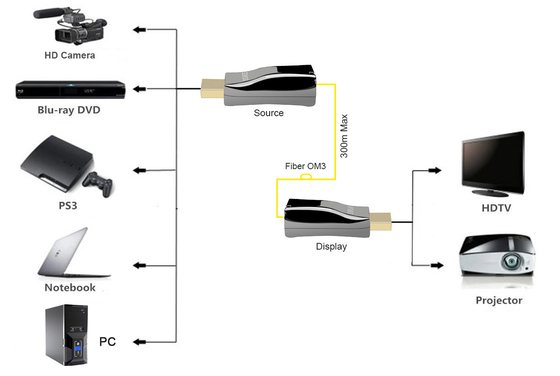

Application

4K 30Hz HDMI 1.4 Video Over Fiber Extender Single Core Multi Mode LC Connector 0

Technical Indexes

Type of Extender	Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender
Input Signals	HDMI
Signal Support	HDMI 1.4 HDMI format standard
Video Support	4K@30Hz/1080p/1080i/720p
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website Specifications	Color space 444, 420, 400
Fiber Connector	1 x LC Connector
Transmission Rate	10.2Gbps(3.4Gbps/CH)
Transmission Distance	OM3 Multi Mode, up to 984ft (300M)
Operating Temperature	-20°C to + 70°C
Storage Temperature	-40°C to + 85°C
Humidity	to 90% RH (non-condensing)
Safety Approvals	CE, RoHS, FCC
Dimension (WxDxH)	2.24 x 0.6 x 0.55 in (57x16x14mm)
Weight	0.1 kg / 0.22 lb
Operation Voltage	5VDC
Operation Current	TX+RX: 75mA
Power Supply	Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)
Note	The module does not support HDCP and EDID transparent transmission

Ordering Information

Model	Description

LNK-107M	Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input
