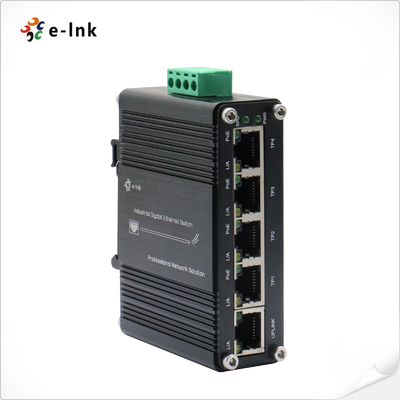

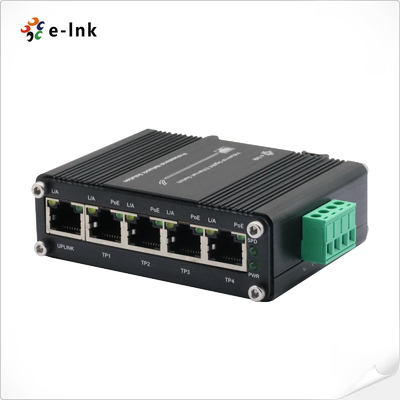

Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Mini Industrial 5-Port Ethernet Switch Overview
The LNK-IMC005GP Series represents a compact industrial-grade networking solution, integrating 4x10/100/1000BASE-T PoE ports compliant with 802.3at standards alongside one additional gigabit uplink port. Designed for operation in demanding conditions, this unmanaged Ethernet switch supports 12-48V DC wide voltage input, ensuring stable performance across fluctuating power environments. Its ruggedized construction provides exceptional resistance to vibration, mechanical shock, and extreme temperature variations, making it suitable for deployment in manufacturing facilities, outdoor installations, and other challenging settings. The series has obtained CE and FCC certification and undergoes rigorous 100% burn-in testing, guaranteeing reliability for critical industrial automation, surveillance systems, and machine networking applications. Delivering both power and data through standard Ethernet cables, it offers a cost-effective infrastructure solution for expanding connected device networks in harsh operational environments.
Mini Industrial 5-Port Ethernet Switch Features
- Multi-Port Gigabit Connectivity - Equipped with five 10/100/1000BASE-T Ethernet ports, including four PoE-enabled interfaces and one standard uplink port for flexible network expansion
- Advanced PoE+ Power Delivery - Features IEEE 802.3at PoE+ injection on ports 1-4, automatically detecting and optimizing power supply for connected PD devices
- Extended Voltage Compatibility - Supports 12-48V DC wide range power input, maintaining stable operation through voltage fluctuations and diverse industrial power conditions
- Efficient Data Flow Management - Implements 802.3x flow control mechanism to prevent data packet loss and ensure smooth transmission during high-network traffic periods
- Versatile Mounting Options - Designed for both DIN-rail and wall-mount installation, offering flexible deployment in control cabinets and industrial settings
- High-Capacity Power Budget - Delivers up to 120W total PoE output (48VDC), 90W (24VDC), and 60W (12VDC), supporting multiple high-power devices simultaneously
- Rugged Industrial Protection - Features IP40-rated dustproof enclosure with heavy-gauge metal housing, providing mechanical strength and environmental resistance
- Extreme Temperature Endurance - Operates reliably across -40°C to 80°C temperature range, ensuring performance stability in both freezing and high-heat environments
Mini Industrial 5-Port Ethernet Switch Technical Indexes
| Ethernet |
| Standards: |
IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet |
| IEEE 802.3ab Gigabit Ethernet |
| IEEE 802.3x Full-Duplex Flow Control |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE 802.3at Power over Ethernet Plus PSE |
| IEEE 802.3af Power over Ethernet Plus |
| Forward & Filtering Rate: |
14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer: |
1Mbits |
| Packet Length: |
10Kbytes |
| MAC Address Table: |
8K |
| Switch Fabric: |
10Gbps/non-blocking |
| Exchange Property |
Backplane bandwidth: 20Gbps;
Packet forwarding rate: 14.88Mpps
|
| Connector: |
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
|
| PoE (Power over Ethernet) |
| Standard: |
IEEE802.3af/at |
| Port: |
RJ45 |
| Power Pin Assignment |
4/5(+), 7/8(-) |
| PoE Budget: |
Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) |
| Environmental |
| Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF |
> 200,000 hrs |
| Electrical and Mechanical |
| Input Power: |
12~48VDC (Terminal Block) |
| Power Consumption: |
<125W (Non-PoE<6W) |
| Power Input Overload: |
Automatic Resettable |
| Reverse Polarity: |
Present |
| Dimensions (WxDxH): |
95 x 70x 29mm |
| Weight: |
0.25Kg |
| Casing: |
Aluminum Case |
| Mounting Options: |
DIN-Rail / Wall-mount |
| LED Indicators: |
| PWR |
Power |
| L/A |
Link/Activity |
| PoE |
Max 30W per port |
| Regulatory Approvals |
| ISO9001 |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55032:2017 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
| IEC 61000-4-8: 2009 (PFMF) |
Mini Industrial 5-Port Ethernet Switch Ordeing Information
| Model |
Description |
| LNK-IMC005GP |
Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch |
| Mounting Options |
Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
Power Supply is to be purchased separately |
Mini Industrial 5-Port Ethernet Switch Application
• Industrial Automation Networks - Provides reliable connectivity for PLC systems, motor drives, and sensor arrays in manufacturing facilities, supporting real-time control and monitoring through wide temperature operation and vibration resistance
• Outdoor Security Deployments - Powers and connects multiple high-resolution IP cameras, PTZ dome cameras, and access control systems in perimeter security applications, with weather-resistant construction ensuring continuous operation
• Transportation Infrastructure - Enables network connectivity for traffic monitoring cameras, license plate recognition systems, and VMS equipment along highways and tunnels, maintaining stability through voltage fluctuations
• Energy and Utility Systems - Supports SCADA communications, remote telemetry units, and monitoring equipment in substations and renewable energy sites with DIN-rail mounting for control panel integration
• Wireless Network Backhaul - Delivers power and data to multiple wireless access points, microwave links, and 5G small cells in campus and smart city deployments through high-capacity PoE+ budget
