Micro Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch

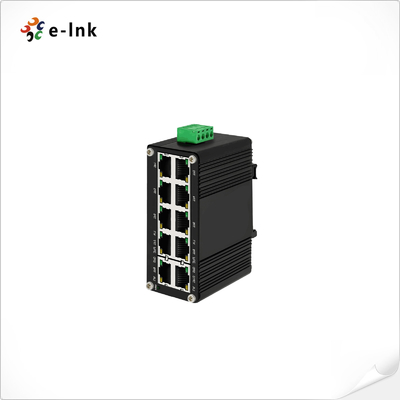

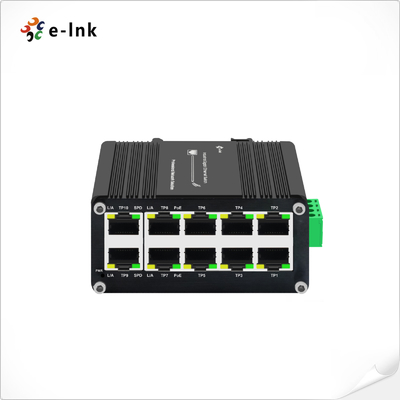

Large Image : Micro Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC010GP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	US$39.9/pc
Packaging Details:	PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial 10 Port PoE Switch	Data Rate:	10/100/1000Mbps
Connector:	10 10/100/1000BASET RJ45 Auto-MDI/MDI-X Ports 8 Ports With 802.3at PoE+ Injector Function	Port:	RJ45
Input Power:	48~57VDC	Dimensions (WxDxH):	95 X 88 X 46mm
Weight:	400g	Mounting Options:	DIN-Rail Mount
Highlight:	8-Port 10/100/1000T Compact Ethernet Switch , 802.3at PoE Compact Ethernet Switch , Industrial Compact Ethernet Switch

Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch

Overview

LNK-IMC010GP Industrial PoE+ Switch compact 10-port industrial switch combines

8×10/100/1000BASE-T PoE+ ports (802.3at, 30W/port) and 2×Gigabit uplinks in a space-saving design.

With 240W total PoE budget, 48-57V DC wide input, and -40~80°C operation, it delivers reliable power

and connectivity for harsh environments like factories and outdoor installations.

Key Features:

✓ 240W PoE+ output for high-power devices

✓ Fanless, noise-free IP40 metal housing

✓ Surge/EMI protection for industrial sites

Ideal for surveillance, ITS, and automation systems requiring rugged performance.

Features
Up to 8 ports of IEEE 802.3af/at devices powered
48~57V DC redundant power with reverse polarity protection
Supports DIN-Rail installation
10 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
-40°C to 80°C (-40°F to 176°F) operating temperature
Industry standard design, dustproof and close design IP40, rugged high-strength metal case

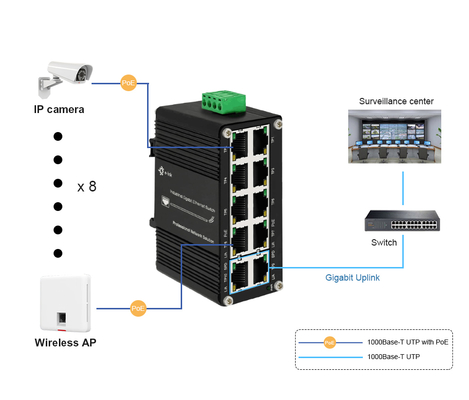

Application
Micro Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch 1

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	2Mbits
Packet Length:	9216bytes
MAC Address Table:	4K entries
Switch Fabric:	20Gbps/non-blocking
Switch Throughput (packet per second)	14.88Mpps@64bytes
Interface
Connector:	10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 8 ports with 802.3at PoE+ injector function (Port 1 to 8)
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus/PSE IEEE 802.3af Power over Ethernet/PSE
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 240-watt PoE budget
Max. Number of Class 4 PDs	8
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 100,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC Redundant power with polarity reverses protection function
Power Consumption:	<250W (Non-PoE<10W)
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (WxDxH):	95 x 88 x 46mm
Weight:	400g
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
LED Indicators:
PWR	Power
L/A	Link/Activity
SPD	Data Rate
PoE	Max 30W per port
Regulatory Approvals
EMC	CE (EN55032, EN55035)
EMI	FCC Part 15 Subpart B
EMS	EN61000-4-2 (ESD) EN61000-4-3 (RS)
	EN61000-4-4 (EFT) EN61000-4-5 (Surge)
	EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11
Safety	CE (EN60950-1)
Surge Protection	8KV for PoE, RJ-45 and SFP ports
Shock	IEC60068-2-27
Freefall	IEC60068-2-32
Vibration	IEC60068-2-6

Ordering Information

Model	Description
LNK-IMC010GP	Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed.
Power Options	► Power Supply is to be purchased separately

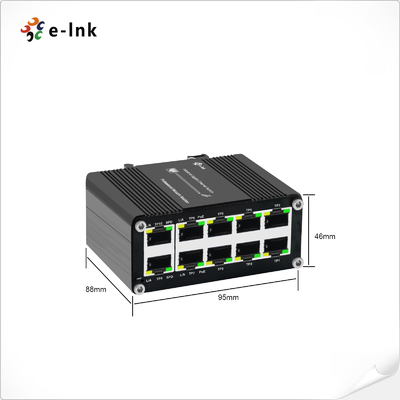

Dimension&Size
