Mini Industrial 4 Ports Gigabit 802.3at PoE With 1 Ports Uplink Ethernet Switch

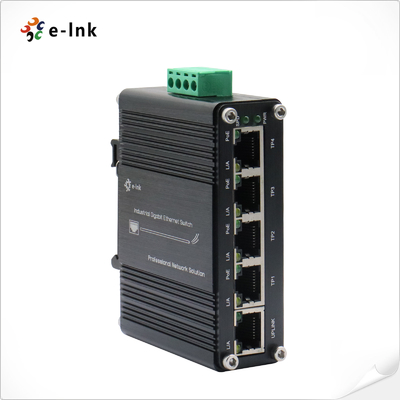

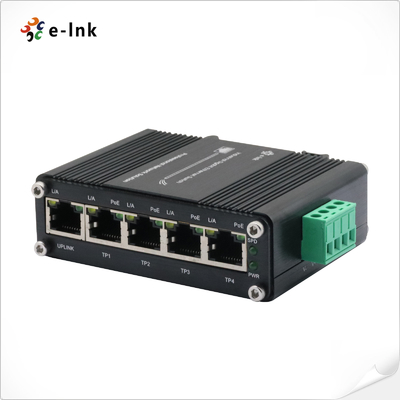

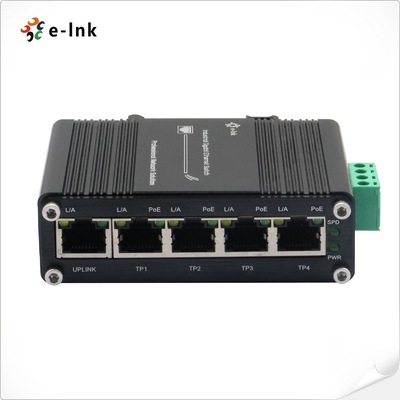

Large Image : Mini Industrial 4 Ports Gigabit 802.3at PoE With 1 Ports Uplink Ethernet Switch

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-IMC005GP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	US$29.9/pu
Packaging Details:	Industrial Ethernet PoE Switch Standard Export Package
Delivery Time:	7 working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram
Supply Ability:	2000 pcs/per month

Contact Now

Detailed Product Description

Keywords:	Gigabit PoE Ethernet Switch	PoE Standard:	IEEE802.3af/at
PoE Ports:	4 Ports 10/100/1000BASE-T 802.3at	Uplink Port:	1 Port Gigabit Ethernet
Pin Assignment:	4/5(+), 7/8(-)	Mounting Options:	DIN-Rail / Wall-mount
Dimensions (WxDxH):	95 X 70x 29mm	Weight:	0.25Kg
Highlight:	1 Ports Uplink Ethernet Switch , 802.3at PoE Ethernet Switch , Industrial 4 Ports Gigabit 802.3at PoE

Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Overview

LNK-IMC005GP Industrial PoE+ Switch compact 5-port industrial switch features 4×10/100/1000BASE-T

PoE+ ports (802.3at) and 1×Gigabit uplink port. With 12-48V DC wide input and rugged industrial

design (-40~75°C operation, vibration/shock resistant), it delivers reliable connectivity for harsh

environments. CE/FCC certified and 100% burn-in tested for industrial applications like automation

and surveillance systems.

Key features:

✓ 4×PoE+ ports (30W/port)

✓ Industrial-grade reliability

✓ Plug-and-play operation

Features
► 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
► 12~48VDC wide range power input
► Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
Application
Mini Industrial 4 Ports Gigabit 802.3at PoE With 1 Ports Uplink Ethernet Switch 1

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.3at Power over Ethernet Plus PSE
	IEEE 802.3af Power over Ethernet Plus
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	1Mbits
Packet Length:	10Kbytes
MAC Address Table:	8K
Switch Fabric:	10Gbps/non-blocking
Exchange Property	Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps
Connector:	5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	<125W (Non-PoE<6W)
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (WxDxH):	95 x 70x 29mm
Weight:	0.25Kg
Casing:	Aluminum Case

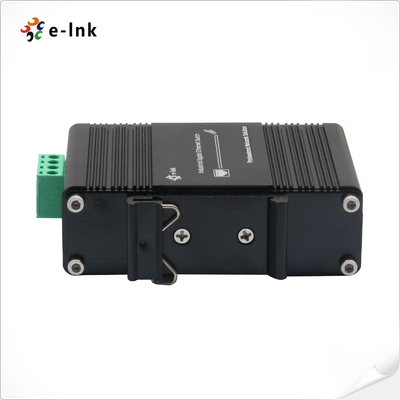

Mounting Options:	DIN-Rail / Wall-mount
LED Indicators:
PWR	Power
L/A	Link/Activity
PoE	Max 30W per port
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordeing Information

Model	Description
LNK-IMC005GP	Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Mounting Options	Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	Power Supply is to be purchased separately
