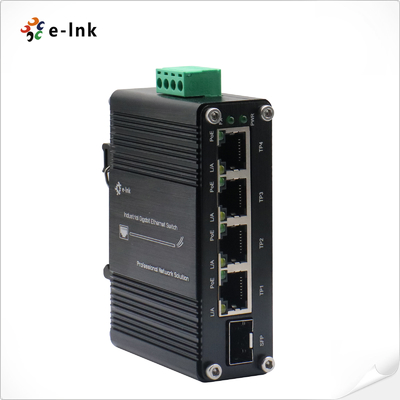

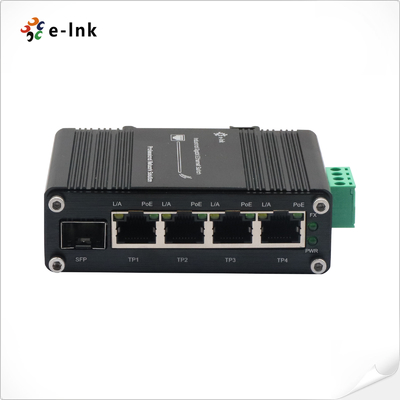

Mini Industrial Fiber Ethernet Switch 4 Port 10/100/1000T To 1-Port SFP Uplink Gigabit PoE Voltage Booster

Large Image : Mini Industrial Fiber Ethernet Switch 4 Port 10/100/1000T To 1-Port SFP Uplink Gigabit PoE Voltage Booster

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC104GP-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	US$29.9/pc
Packaging Details:	PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial 4 Port PoE Switch	Data Rate:	10/100/1000Mbps
PoE Port:	4 Port 10/100/1000T 802.3at	Uplink Port:	1 Port 10/100/1000T SFP Uplink
Input Power:	12~48V DC Wide Range	Weight:	0.25KG
Dimensions (WxDxH):	95 X 70x 29mm	Mounting Options:	DIN-Rail / Wall-mount
Highlight:	10/100/1000T Industrial Fiber Ethernet Switch , Mini Industrial Fiber Ethernet Switch

Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster

Overview

LNK-IMC104GP-SFP Industrial PoE+ Switch compact 5-port industrial switch features

4×10/100/1000BASE-T PoE+ ports (802.3at, 30W/port) and 1×100/1000FX SFP slot. With 12-48V DC

wide input (voltage booster supported), -40~75°C operation, and rugged IP40 housing, it's ideal for

harsh environments like solar power systems and industrial networks. CE/FCC certified with 100%

burn-in tested reliability.

Key benefits:

✓ PoE+ power budget optimization

✓ Fiber uplink capability

✓ Industrial-grade durability

Features
100/1000BASE-X SFP slots for SFP type auto detection
12~48VDC wide range power input with power booster function

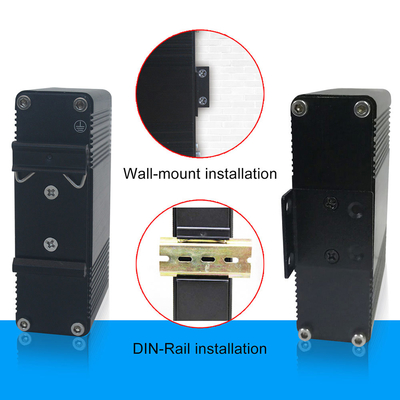

Supports DIN-Rail and Wall-mount installation
Industry standard design, dustproof and close design IP40, rugged high-strength metal case
Application
Mini Industrial Fiber Ethernet Switch 4 Port 10/100/1000T To 1-Port SFP Uplink Gigabit PoE Voltage Booster 0

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.3at Power over Ethernet Plus PSE
	IEEE 802.3af Power over Ethernet Plus
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	1Mbits
Packet Length:	10Kbytes
MAC Address Table:	8K
Switch Fabric:	10Gbps/non-blocking
Exchange Property	Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps
Connector:	4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
Interface
Connector:	4 x RJ45
Optical Port:	1 x SFP 1000Base-X or 100Base-FX (auto detection)
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	<125W (Non-PoE<6W)
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (WxDxH):	95 x 70x 29mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
LED Indicators:
PWR:	Power
L/A:	Link/Activity
PoE:	PoE Status
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordeing Information

Model	Description
LNK-IMC104GP-SFP	Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster
SFP Options	SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	SFP module is to be purchased separately.
Mounting Options	Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	Power Supply is to be purchased separately
