Micro Industrial Web Managed 5 port Gigabit Ethernet Switch with auto-MDI/MDI-X function

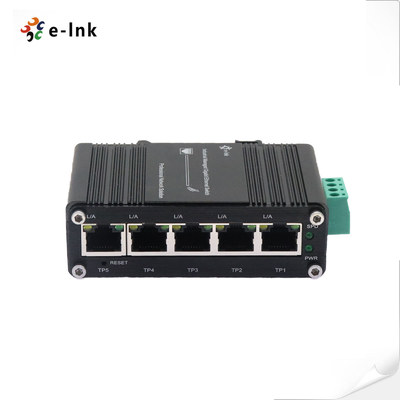

Large Image : Micro Industrial Web Managed 5 port Gigabit Ethernet Switch with auto-MDI/MDI-X function

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link China
Certification:	CE, RoHS, FCC
Model Number:	LNK-IMC005GM

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	US$29.9/pc
Packaging Details:	1 piece in 1 carton box for Industrial Ethernet POE Switch
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Mounting Options:	DIN-Rail / Wall-mount	Dimension:	95 X 70x 29mm
Input Current:	12-48V DC	Warranty:	5 Years
Weight:	0.25KG	Casing:	Aluminum Case
Highlight:	5 port Gigabit Ethernet Switch , Auto MDI/MDI-X Ethernet Switch , Micro Industrial Web Managed Ethernet Switch

Mini Industrial Managed 5-Port Gigabit Ethernet Switch
Model: LNK-IMC005GM
Overview

This compact industrial-grade switch features 5×10/100/1000BASE-T ports with 12-48V DC wide input

voltage. Designed for harsh environments, it operates in -40 to 80°C temperatures with

DIN-rail/wall-mountable IP40 rugged housing. Compliant with CE/FCC standards and 100% burn-in

tested, it delivers reliable performance for industrial automation, ITS, and military applications where

commercial switches fail.

Key advantages:

✓ Industrial hardening (vibration/shock resistant)

✓ Layer 2 management capabilities

✓ Cost-effective rugged solution

Features

5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
12~48V DC wide range power input
Supports 802.3x Flow control
Supports WEB Management
Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports DIN-Rail and Wall-mount installation
Industry standard design, dustproof and close design IP40, rugged high-strength metal case
-40°C to 80°C (-40°F to 176°F) operating temperature

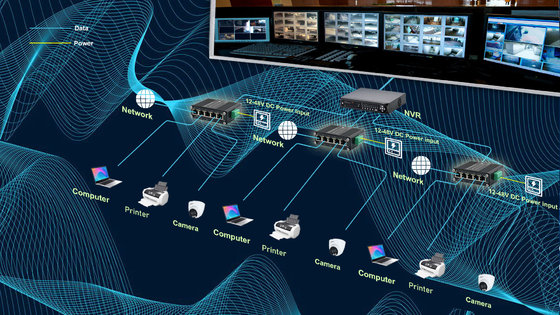

Application
Micro Industrial Web Managed 5 port Gigabit Ethernet Switch with auto-MDI/MDI-X function 0
Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.3af/at Optional
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	1Mbits
Packet Length:	10Kbytes
MAC Address Table:	8K
Switch Fabric:	10Gbps/non-blocking
Exchange Property	Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps
Connector:	5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48V DC (Terminal Block)
Power Consumption:	<6W
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Reset Button	Support
Dimensions (WxDxH):	95 x 70 x 29 mm
Weight:	0.25KG
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
LED Indicators:
PWR	Power
L/A	Link/Activity
SPD	Data Rate
WEB Management Features
System Settings	Device Info; Account Settings; Restoring; Reboot; Upgrade
Port Management	Port Settings; Port Mirroring; Port Statistics; Rate Limit
VLAN Settings	802.1Q VLAN; PVID Settings; Hybrid Port
QOS Settings	Priority Selection; Scheduling Mode
Loop Detection	Support
Saving Settings	Get Configuration; Restore Configuration; Saving Configuration
Default IP	192.168.40.253
Default User Name	admin
Default Password	admin
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)

Order Information

Model	Description
LNK-IMC005GM	Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately ► Recommend MeanWell MDR-20-24
