Mini Industrial Web Managed 5 Ports Ethernet Switch 12~48V DC Input

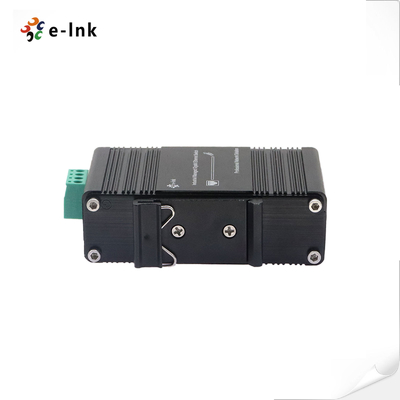

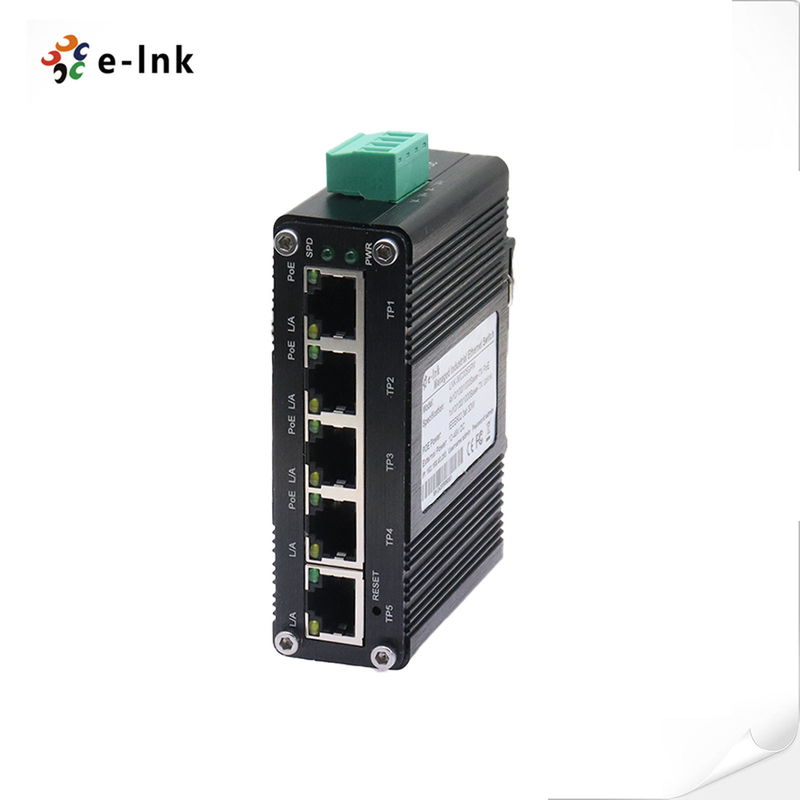

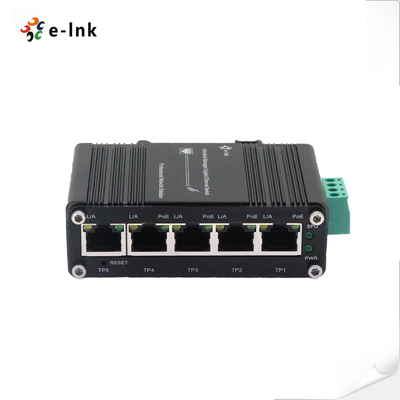

Large Image : Mini Industrial Web Managed 5 Ports Ethernet Switch 12~48V DC Input

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE/FCC/Rohs
Model Number:	LNK-IMC005GPM

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	US$39.9/pc
Packaging Details:	1 piece in 1 carton box for Industrial Ethernet POE Switch
Delivery Time:	5-8 days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Input Power::	12~48V DC (Terminal Block)	Power Consumption::	<125W (Non-PoE<6W)
Size:	95 X 70 X 29 Mm	Mounting Options:	DIN-Rail / Wall-mount
Weight::	0.25Kg	Casing:	Aluminum Case
Highlight:	Mini Industrial Web Managed Ethernet Switch , 5 Ports Ethernet Switch 48V , Web Managed 5 Ports Ethernet Switch

Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Model: LNK-IMC005GPM
Overview

LNK-IMC005GPM Industrial PoE+ Managed Switch

Key Features:

- 4×10/100/1000BASE-T PoE+ ports (802.3at, 30W/port)

- 1×10/100/1000T uplink port

- 12-48V DC wide input, -40~80°C operation

- DIN-rail/wall mount, IP40 rugged housing

- CE/FCC certified, 100% burn-in tested

Applications:

✓ Industrial automation

✓ ITS/transportation systems

✓ Military/utility harsh environments

Features

5 x 10/100/1000BASE-T ports
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ (Port-1 to Port-4)
Supports 802.3x Flow control
Supports WEB Management
Supports DIN-Rail and Wall-mount installation
Up to 120-watt PoE budget (48V DC),
-40°C to 80°C (-40°F to 176°F) operating temperature

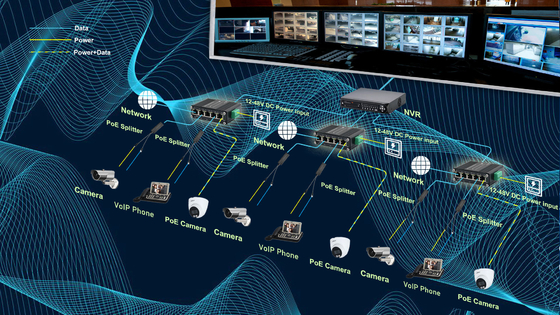

Application
Mini Industrial Web Managed 5 Ports Ethernet Switch 12~48V DC Input 0
Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.3at Power over Ethernet Plus PSE
	IEEE 802.3af Power over Ethernet Plus
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	1Mbits
Packet Length:	10Kbytes
MAC Address Table:	8K
Switch Fabric:	10Gbps/non-blocking
Exchange Property	Backplane bandwidth: 20Gbps; Packet forwarding rate:14.88Mpps
Connector:	5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 4 ports with 802.3at PoE+ (Ports 1 to 4)
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)

PoE Budget:	Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	<125W (Non-PoE<6W)
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Reset Button	Support
Dimensions (WxDxH):	95 x 70 x 29 mm
Weight:	0.25KG
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
LED Indicators
PWR	Power
SPD	Data rate
L/A	Link/Activity
PoE	PoE Status
WEB Management Features
System Settings	Device Info; Account Settings; Restoring; Reboot; Upgrade
Port Management	Port Settings; Port Mirroring; Port Statistics; Rate Limit
VLAN Settings	802.1Q VLAN; PVID Settings; Hybrid Port
QOS Settings	Priority Selection; Scheduling Mode
Loop Detection	Support
Saving Settings	Get Configuration; Restore Configuration; Saving Configuration
Default IP	192.168.40.253
Default User Name	admin
Default Password	admin

Order Information

Model	Description
LNK-IMC005GPM	Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately ► Recommend MeanWell NDR-120-48
