Industrial 8-Port 10/100/1000T 802.3at PoE + 6-Port 1000X SFP Ethernet Switch
Industrial 8-Port SFP Ethernet Switch Overview

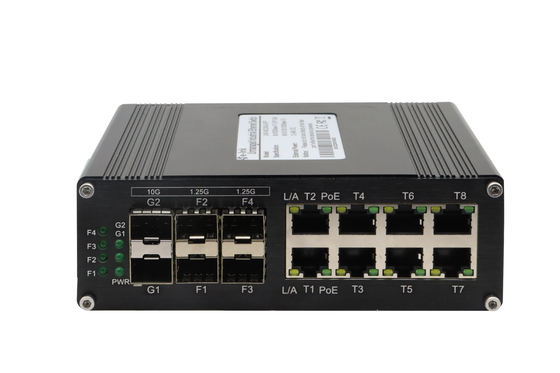

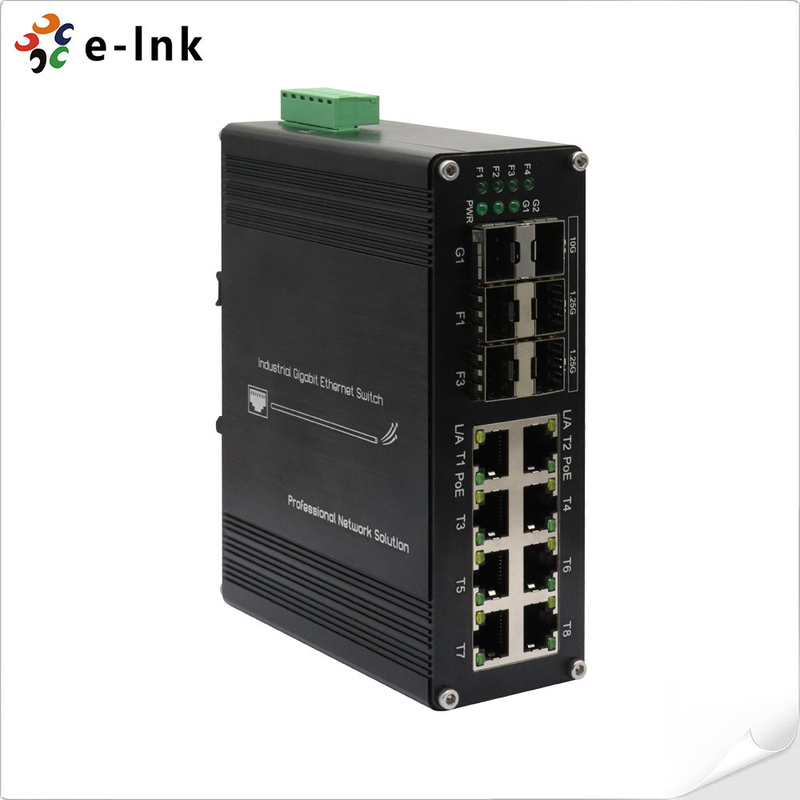

The LNK-IMC608GP-SFP Series represents a high-performance industrial-grade networking solution engineered for demanding connectivity applications. This robust Ethernet switch integrates eight 10/100/1000BASE-T RJ45 ports with IEEE 802.3at PoE+ capability, complemented by six 1000BASE-X SFP fiber optic slots for flexible backbone connections. The copper interfaces support automatic speed negotiation and MDI/MDI-X crossover detection, while the fiber ports accommodate both single-mode and multi-mode transceivers for versatile optical connectivity.
Designed for reliable operation in challenging environments, this hardened switch enables seamless network integration across distributed locations. Its advanced architecture facilitates efficient connectivity between IP surveillance systems, wireless access points, and various industrial IoT devices, providing both power and data transmission through a single infrastructure.
The switch's industrial-grade construction ensures consistent performance in extended temperature ranges and electrically noisy conditions, making it particularly suitable for smart city infrastructure, transportation networks, and factory automation systems. With its combination of high-density PoE+ ports and multiple fiber uplinks, the LNK-IMC608GP-SFP delivers a future-proof solution for building converged networks that require reliable long-distance connectivity and centralized power management for remote devices.
Industrial 8-Port SFP Ethernet Switch Features
►High-Density Hybrid Port Configuration
Integrates eight 10/100/1000BASE-T copper interfaces with six 1000BASE-X SFP fiber optic slots, providing flexible connectivity options for both electrical and optical network segmentation in complex industrial environments.
►Intelligent Copper Port Technology
Each RJ45 interface features automatic speed negotiation, full/half-duplex mode detection, and MDI/MDI-X auto crossover, eliminating manual configuration requirements while ensuring optimal connection stability.
►Dual-Mode PoE Power Standard Compliance
Supports both IEEE 802.3af (15.4W) and 802.3at (30W) power delivery standards, offering backward compatibility with legacy devices while providing sufficient power for high-demand equipment.
►Advanced Data Flow Management
Implements IEEE 802.3x flow control mechanism with full-duplex operation and backpressure support, effectively managing network congestion and preventing data packet loss during peak transmission periods.
►Enhanced Data Frame Processing
Supports 9K jumbo frames for improved data transmission efficiency, reducing protocol overhead and increasing throughput performance for bandwidth-intensive applications.
►Fault-Tolerant Power Supply Design
Features redundant power inputs with reverse polarity protection and wide voltage range support, ensuring continuous operation during primary power source failures or fluctuations.
►Energy Efficient Operation Mode
Complies with IEEE 802.3az Energy Efficient Ethernet standards, automatically reducing power consumption during periods of low data activity while maintaining network connectivity.
►Rugged Mechanical Construction
Housed in IP40-rated aluminum alloy casing providing excellent electromagnetic shielding and heat dissipation properties, while offering superior physical protection in demanding industrial settings.
►Versatile Mounting System
Designed for standard DIN-rail installation with secure locking mechanism, enabling quick deployment in control panels, electrical cabinets, and industrial equipment racks.
►Extended Thermal Tolerance Range
Maintains full operational stability across extreme temperatures from -40°C to 80°C, certified for deployment in both arctic environments and high-temperature industrial applications.
Industrial 8-Port SFP Ethernet Switch Technical Indexes
| Ethernet |
| Standards: |
IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX |
| IEEE802.3ab 1000BASE-T |
| IEEE802.3z 1000BASE-X |
| IEEE802.3p QoS |
| IEEE802.1d Spanning Tree |
| Forward & Filtering Rate: |
14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer Memory: |
2.75M bits |
| Processing Type: |
Store-and-Forward |
| Max Packet Length: |
9K Bytes Jumbo Frame |
| Address Table Size: |
8K MAC Addresses |
| Interface |
| Connector: |
8 x RJ45 |
| Optical Port: |
6 x 1000Base-X SFP |
| PoE (Power over Ethernet) |
| Standard: |
IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3af Power over Ethernet |
| ort: |
RJ45 |
| Power Pin Assignment |
4/5(+), 7/8(-) |
| PoE Budget: |
Up to 240-watt PoE budget |
| Environmental |
| Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF |
> 200,000 hrs |
| Electrical and Mechanical |
| Input Power: |
48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: |
8W Max.(PoE in Use<240W) |
| Protection: |
| Power Input Overload: |
Automatic Resettable |
| Reverse Polarity: |
Present |
| LED Indicators: |
| Power: |
Power Status |
| Ethernet(Per Port): |
Link/Activity |
| PoE (Optional) |
PoE Status |
| Fiber: |
Gigabit SFP Port: F1~F6 |
| Dimensions (WxDxH): |
149 x 114 x 50 mm |
| Weight: |
0.55Kg |
| Casing: |
Aluminum Case |
| Mounting Options: |
DIN-Rail mount |
| Regulatory Approvals |
| ISO9001 |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55024:2010 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
| IEC 61000-4-8: 2009 (PFMF) |
|
Industrial 8-Port SFP Ethernet Switch Ordering Information
| Model |
Description |
| LNK-IMC608GP-SFP |
Industrial 8-Port 10/100/1000T 802.3at PoE + 6-Port 1000X SFP Ethernet Switch |
| SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options |
► Default DIN-Rail Bracket installed |
| Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
Industrial 8-Port SFP Ethernet Switch Application
►Industrial Automation Control Systems
Provides robust connectivity for factory automation networks supporting PLCs industrial robots and vision inspection systems with fiber optic backbone connectivity and PoE+ powered devices
►Smart City Infrastructure Networks
Enables integrated connectivity for urban intelligence systems including traffic monitoring public security networks and environmental monitoring stations through fiber optic transmission
►Large-Scale Surveillance Deployments
Supports high-density IP camera installations with PoE+ power and fiber optic backhaul for campus security critical infrastructure protection and metropolitan surveillance systems
Wireless Network Backhaul Solutions
Provides fiber uplinks for distributed wireless systems supporting 5G small cells Wi-Fi access points and microwave transmission equipment with PoE+ capability
►Transportation Management Systems
Delivers reliable networking for intelligent transportation applications including highway monitoring tunnel communications and railway signal control with industrial hardening
►Utility and Energy Automation
Supports smart grid applications connecting distribution automation equipment substation monitoring devices and renewable energy systems with fiber optic reliability
►Broadcast and Media Networks
Enables broadcast-quality video transmission for outdoor broadcasting units media production facilities and live event production with precise timing synchronization
►Marine and Port Operations
Provides corrosion-resistant networking for container terminal automation vessel traffic systems and port security installations with wide temperature operation
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
