Industrial Fiber Extender 4K60 Uncompressed Transmission Wide Temperature Operation

Mini 4K/60Hz HDMI 2.0 KVM USB over Fiber Optic Extender

Mini 4K HDMI Fiber Optic Extender Overview

The LNK-109KVM represents an advanced fiber optic extension system that combines ultra-high-definition video and USB peripheral control over extended distances. This compact yet powerful solution comprises matched transmitter and receiver units, engineered to deliver uncompromised 4K/60Hz video with 4:4:4 chroma sampling alongside USB HID signals across distances up to 300 meters using standard LC OM4 multimode fiber cabling.

Utilizing sophisticated wavelength-division multiplexing (WDM) technology, the transmitter unit efficiently converts four high-speed differential signals into optical output through its integrated photoelectric conversion engine. The system features a unique distribution architecture that splits one HDMI input into dual outputs - transmitting one stream over fiber optics while maintaining a local output for convenient source monitoring.

This fiber-based KVM extender eliminates traditional copper cable limitations, providing pristine signal quality without compression artifacts or electromagnetic interference. Ideal for control rooms, broadcast facilities, and digital signage applications, it ensures perfect pixel-for-pixel transmission with complete USB keyboard/mouse functionality at the remote location, creating a seamless user experience across extended work environments.

Mini 4K HDMI Fiber Optic Extender Features

• Extended Fiber Optic Transmission Performance
  Capable of transmitting uncompressed 4K@60Hz HDMI 2.0 video signals across distances up to 300 meters using standard OM4 multimode fiber optic cabling, maintaining complete signal integrity with 4:4:4 chroma sampling throughout the transmission path.
• Bidirectional Peripheral Device Control
  Enables simultaneous transmission of keyboard and mouse control signals alongside video content, providing complete remote workstation functionality with real-time response and seamless peripheral operation.
• Advanced Video Processing Technology
  Delivers fully uncompressed HDMI 2.0 video transmission while preserving original source quality, supporting maximum resolution of 4096x2160 at 60Hz with full 4:4:4 color sampling for professional-grade visual performance.
• Integrated Local Monitoring Capability
  Transmitter unit features built-in local loop-through output, allowing simultaneous local signal monitoring and remote extension without requiring additional signal distribution equipment.
• Comprehensive Transmitter Interface Configuration

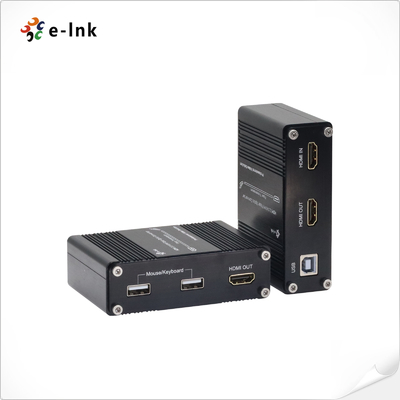

  Local module equipped with HDMI input, USB type B peripheral interface for keyboard/mouse connection, LC fiber optic port, and standardized 5V DC power input, providing complete connectivity in a compact form factor.
• Versatile Receiver Output Connectivity

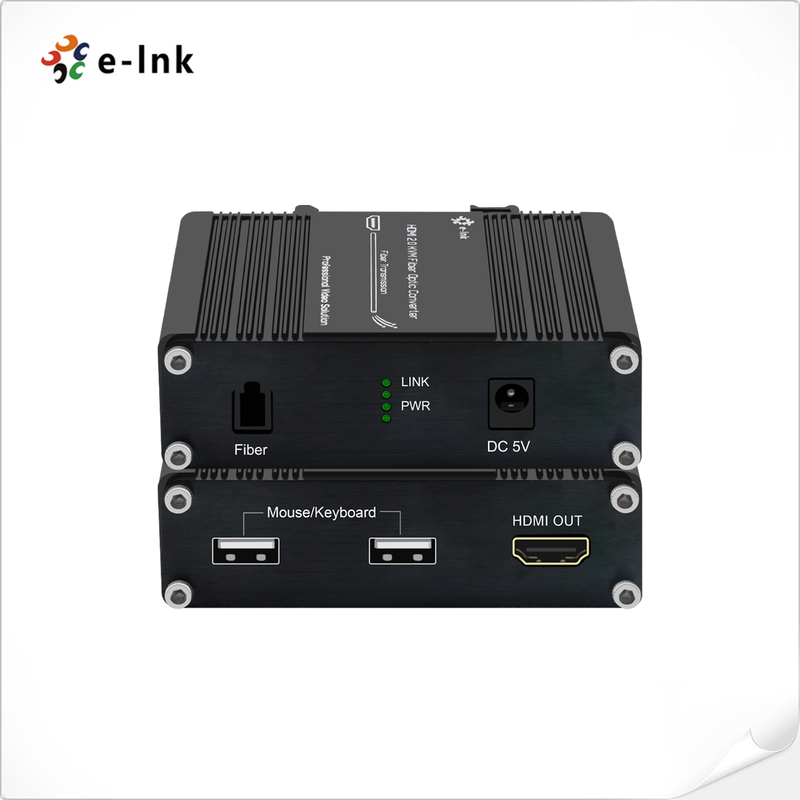

  Remote module features HDMI output for display connection, dual USB type A ports for peripheral devices, LC fiber optic interface, and 5V DC power input, enabling flexible installation configurations.
• Simplified Deployment Operation
  Designed for true plug-and-play installation with automatic signal negotiation and configuration, requiring zero software configuration or technical expertise for immediate operation upon connection.
• Professional-Grade Signal Integrity
  Maintains pixel-perfect video reproduction without compression artifacts or quality degradation, ensuring accurate color representation and sharp image detail for critical viewing applications.
• Compact Industrial Design Solution
  Space-optimized mechanical design enables flexible deployment in rack-mounted, desktop, or embedded installations while providing robust performance in professional AV environments.

Mini 4K HDMI Fiber Optic Extender Technical Indexes

Mini 4K HDMI Fiber Optic Extender Ordering Information


Mini 4K HDMI Fiber Optic Extender Application

• Broadcast Production and Control Room Environments
  Enables ultra-low latency transmission of 4K/60Hz production feeds with uncompressed 4:4:4 chroma sampling for broadcast control rooms, live production trucks, and master control monitoring systems. Supports real-time keyboard/mouse control over 300-meter fiber links.

• Digital Signage and Video Wall Management
  Facilitates centralized source management for distributed display networks across retail complexes, corporate campuses, and public information systems. Delivers pixel-perfect 4K content to remote displays while maintaining complete peripheral control capability.

• Industrial Control and Automation Systems
  Provides robust signal extension for factory automation control stations, process monitoring centers, and industrial visualization systems. The fiber-based immunity ensures reliable operation in electrically noisy manufacturing environments.

• Medical Imaging and Surgical Visualization
  Supports diagnostic imaging displays and surgical video systems requiring uncompressed 4K video transmission with precise color accuracy. Enables remote consultation and collaborative diagnosis while maintaining sterile field integrity through extended fiber connectivity.

• Corporate and Education AV Integration
  Delivers seamless presentation experiences in boardrooms, lecture halls, and training facilities. Supports simultaneous local and remote display of 4K content with full USB peripheral control for interactive teaching and collaborative work sessions.

• Security and Surveillance Command Centers
  Enables high-resolution video wall feeding and operator station control in security monitoring facilities. Provides stable transmission of 4K surveillance footage with responsive peripheral control across extended fiber optic infrastructure.

• Professional Audio-Visual and Live Events
  Supports event production with reliable 4K signal distribution across large venues, convention centers, and performance spaces. Maintains signal integrity while enabling technical control from centralized equipment locations.

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service,

providing product consultation, remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
