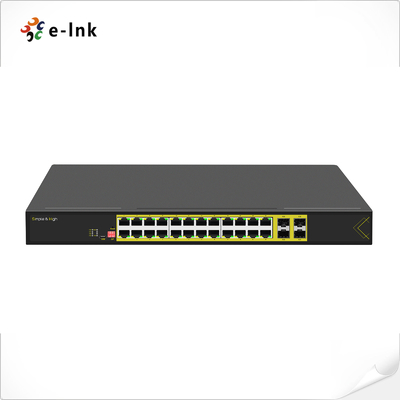

Managed Rack mount 24-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch

Large Image : Managed Rack mount 24-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-424M-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiated
Packaging Details:	SFP Ethernet SwitchStandard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Management Port::	1 X USB-C	Input Power::	12~48V DC, Redundant Power (4-pin Terminal Block)
Dimensions (L X W X H)::	440mm X 300mm X 45mm	Weight::	3.1Kg
Casing::	Metal Case	Mounting Options::	Rackmount

L2+ Managed Rack mount 24-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch

Overview

The LNK-424M-SFP is a Layer 2+ managed rackmount switch featuring 24× 10/100/1000Base-T RJ45

ports and 4× 1000Base-X SFP fiber slots, designed for high-performance network deployments.

Key Features:

✔ 24 Copper Ports – Support 10/100/1000Mbps auto-negotiation, full/half-duplex, and auto MDI/MDI-X

✔ 4 SFP Slots – Compatible with single-mode or multi-mode fiber (1/2 core) for long-distance uplinks

✔ Advanced Management – L2+ features including VLAN, QoS, IGMP snooping, and security protocols

✔ Robust & Scalable– Ideal for IP surveillance, wireless access points, and distributed networks

✔ Rackmount Design – Compact 1U form factor for easy integration into enterprise networks

Applications:

IP Camera Systems– Reliable connectivity for surveillance networks

Enterprise & Industrial Networks – High-speed backbone for mixed media environments

Fiber Uplinks – Extend network reach between remote locations

Built for stability and ease of use, the LNK-424M-SFP ensures seamless integration of copper and fiber

devices in demanding environments.

Feature

► Support 24x10/100/1000Base-T + 4x1000Base-X SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Support connecting USB-C port for easy management, without the need to access the RS232

serial port at all

► 9K Bytes Jumbo Frame

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports 1U 19” Rack mount installation

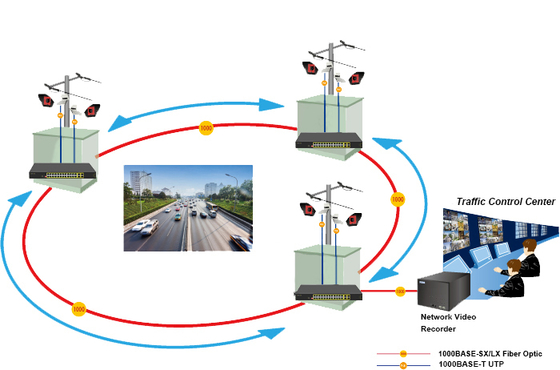

Application

Managed Rack mount 24-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch 0

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	12M bits
Processing Type:	Store-and-Forward
Backplane bandwidth	110Gbps
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Interface
Ethernet Port:	24 x 10/100/1000Base-T RJ45
Optical Port:	4 x 1000Base-X SFP
Management Port:	1 x USB-C
Environmental

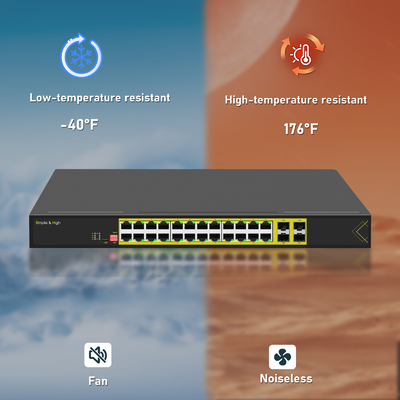

Operating Temperature:	0°C to 55°C (-40°F to 176°F)
Storage Temperature:	-40°C to 75°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48V DC, Redundant Power (4-pin Terminal Block)
Power Consumption:	15W Max.
DIP Switch
4-digit DIP switch function	DIP	Function	Settings
	SW 1	Reserved	ON - Reserved	OFF - Reserved
	SW 2	Ring Management	ON - Disabled	OFF - Enabled
	SW 3	Reserved	ON - Reserved	OFF - Reserved
	SW 4	Reserved	ON - Reserved	OFF - Reserved
LED Indicators:
PWR:	Power Status
SYS	System Status
Ethernet:	Link/Activity, 1~24
Fiber:	Gigabit SFP Port: F25~F28
Hardware:
Dimensions (L x W x H):	440mm x 300mm x 45mm
Weight:	3.1Kg
Casing:	Metal Case
Mounting Options:	Rackmount

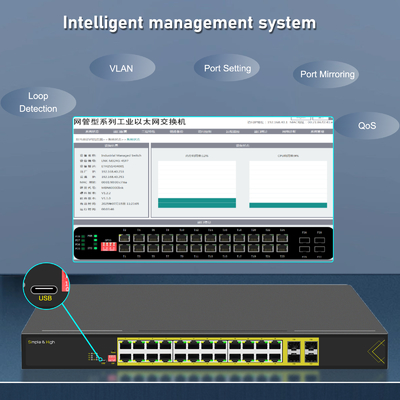

Management Features
System Status	Device Information, Device Status
Port Config	Port Config, DDM, Rate Control, Storm Control, PoE
Link Layer	QoS, VLAN, MAC VLAN, VLAN MAP, IP VLAN, Pro VLAN, IGMP Snooping, Static Multicast List, LLDP, Port Isolate, Port Protect, MAC ACL, IP ACL, Black & White Lists
Link Backup	ERPS, Port Trunking, RSTP, LACP
Access Control	User Password, Access Control, Port Authentication, Authentication DB, MAC Port Locking, MAC Learn Limit
Remote Monitor	SNMP Config
Statistics	Receive Frame, Send Frame, Sum Statistics, MAC Address List
Network Diagnosis	Port Mirroring, Network Diagnosis
Management	Time Config, Device Address, System Information, System Log, File Management
Default IP	192.168.40.253
Default User Name	admin
Default Password	admin
Regulatory Approvals
ISO9001, CE, RoHS, FCC

Ordering Information

Model	Description
LNK-424M-SFP	L2+ Rack mount 24-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Rack mount, mounting clip is included.
Power Options	► Open Wire for Terminal Block.
