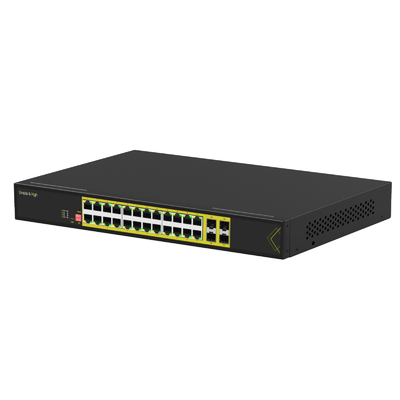

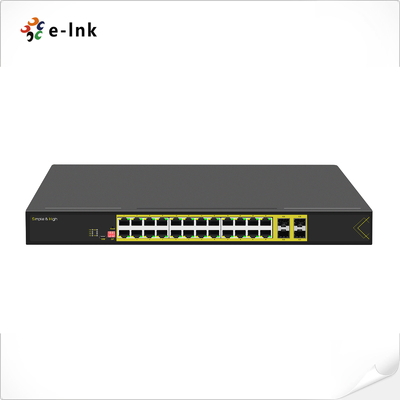

L2+ Managed Rack mount 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP PoE Switch
L2+ Managed 24-Port PoE Switch Overview
LNK-424M-SFP series is the L2+ managed rack mount 24-port 10/100/1000Base-T 802.3at PoE + 4-port
1000Base-X SFP Ethernet switch. The switch has 24 TP ports and 4 fiber ports. The TP (RJ45) supports
10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port
supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product
is a great choice for integrating networks consisting of network devices such as IP cameras and wireless
access points between remote locations.
L2+ Managed 24-Port PoE Switch Features
-
24-Port Gigabit Ethernet Support:
Includes 24× 10/100/1000Base-T RJ45 ports and 4× 1000Base-X SFP fiber slots for flexible connectivity.
-
Auto-Adaptive RJ45 Ports:
Each RJ45 port supports 10/100/1000Mbps speeds with auto-negotiation, full/half-duplex mode switching, and auto MDI/MDIX crossover.
-
IEEE 802.3af/at PoSCompliant:
Delivers Power over Ethernet (PoE) support for simplified deployments and reduced cabling requirements.
-
USB-C Management Interface:
Features a USB-C port for convenient out-of-band management, eliminating the need for traditional RS232 serial access.
-
Jumbo Frame Support:
Supports jumbo frames up to 9KB for improved large data transfer efficiency.
-
Energy-Efficient Ethernet (EEE):
Compliant with IEEE 802.3az standards to reduce power consumption during low data activity.
-
1U Rack-Mountable Design:
Designed for standard 19-inch rack installation with 1U form factor, ideal for space-constrained environments.

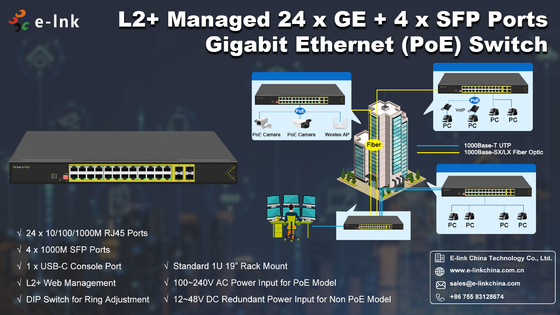

L2+ Managed 24-Port PoE Switch Application
- IP Surveillance
- Wireless Access Point (WAP) Connectivity
- Office & Enterprise Networks
- Fiber Uplink & Backbone Expansion
L2+ Managed 24-Port PoE Switch Technical Indexes
| Ethernet |
|
| Standards: |
IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX |
| IEEE802.3ab 1000BASE-T |
| IEEE802.3z 1000BASE-X |
| Forward & Filtering Rate: |
14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer Memory: |
12M bits |
| Processing Type: |
Store-and-Forward |
| Backplane bandwidth |
110Gbps |
| Max Packet Length: |
9K Bytes Jumbo Frame |
| Address Table Size: |
8K MAC Addresses |
| Interface |
| Ethernet Port: |
24 x 10/100/1000Base-T RJ45 |
| Optical Port: |
4 x 1000Base-X SFP |
| Management Port: |
1 x USB-C |
| PoE (Power over Ethernet) |
| Standard: |
IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3af Power over Ethernet |
| Port: |
RJ45 |
| Power Pin Assignment |
1/2(+), 3/6(-), 4/5(+), 7/8(-) |
| PoE Budget: |
Up to 400-watt PoE budget |
| Environmental |
| Operating Temperature: |
0°C to 55°C (-40°F to 176°F) |
| Storage Temperature: |
-40°C to 75°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF |
> 200,000 hrs |
| Electrical and Mechanical |
| Input Power: |
AC 100~240V |
| Power Consumption: |
400W Max. |
| DIP Switch |
|
4-digit DIP switch function
|
DIP |
Function |
Settings |
| SW 1 |
Reserved |
ON - Reserved |
OFF - Reserved |
| SW 2 |
Ring Management |
ON - Disabled |
OFF - Enabled |
| SW 3 |
Reserved |
ON - Reserved |
OFF - Reserved |
| SW 4 |
Reserved |
ON - Reserved |
OFF - Reserved |
| LED Indicators: |
| PWR: |
Power Status |
| SYS |
System Status |
| PoE: |
Link/Activity, 1~24 |
| Fiber: |
Gigabit SFP Port: F25~F28 |
| Hardware: |
| Dimensions (L x W x H): |
440mm x 300mm x 45mm |
| Weight: |
4.0Kg |
| Casing: |
Metal Case |
| Mounting Options: |
Rackmount |
| Management Features |
| System Status |
Device Information, Device Status |
| Port Config |
Port Config, DDM, Rate Control, Storm Control, PoE |
| Link Layer |
QoS, VLAN, MAC VLAN, VLAN MAP, IP VLAN, Pro VLAN,
IGMP Snooping, Static Multicast List, LLDP,
Port Isolate, Port Protect,
MAC ACL, IP ACL, Black & White Lists
|
| Link Backup |
ERPS, Port Trunking, RSTP, LACP |
| Access Control |
User Password, Access Control,
Port Authentication, Authentication DB,
MAC Port Locking, MAC Learn Limit
|
| Remote Monitor |
SNMP Config |
| Statistics |
Receive Frame, Send Frame, Sum Statistics, MAC Address List |
| Network Diagnosis |
Port Mirroring, Network Diagnosis |
| Management |
Time Config, Device Address, System Information, System Log,
File Management
|
| Default IP |
192.168.40.253 |
| Default User Name |
admin |
| Default Password |
admin |
| Regulatory Approvals |
| ISO9001, CE, RoHS, FCC |
L2+ Managed 24-Port PoE Switch Ordering Information
| Model |
Description |
| LNK-424MP-SFP |
L2+ Managed Rack mount 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP PoE Switch |
| SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options |
► Rack mount, mounting clip is included. |
| Power Options |
►Power Cord is included |
