Multi-functional 4K 60Hz HDMI KVM Fiber Extender
Multi-functional 4K HDMI Fiber Extender Overview

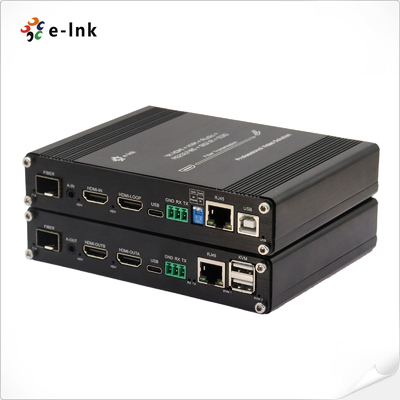

The LNK-4KH-1D1U1E1A1R Fiber optic extender provides extension of HDMI signals long distances
over one fiber optic cable, it supports high resolution up to 4K60Hz HDMI, and with KVM, Audio, RS232
or RS485, 10/100M TCP/IP, IR, EDID function. The extender can use for a wide range of applications
requiring long distance transmission of high resolution with high quality by its good stability and powerful
security.
Multi-functional 4K HDMI Fiber Extender Features
-
Supports HDMI video resolution up to 4096×2160@60Hz
-
Delivers 4K2K@50/60Hz video with 4:4:4 chroma sampling
-
Compliant with HDMI 2.0b, HDCP 2.2, and DVI 1.0 standards
-
Features HDMI video loop-out
-
KVM support for centralized control
-
RS232/RS485 serial communication support
-
10/100M TCP/IP Ethernet connectivity
-
Bi-directional IR (Bidi IR) capability
-
DIP switch with audio separation and EDID management
Multi-functional 4K HDMI Fiber Extender Technical Indexes
| Parameter |
Description |

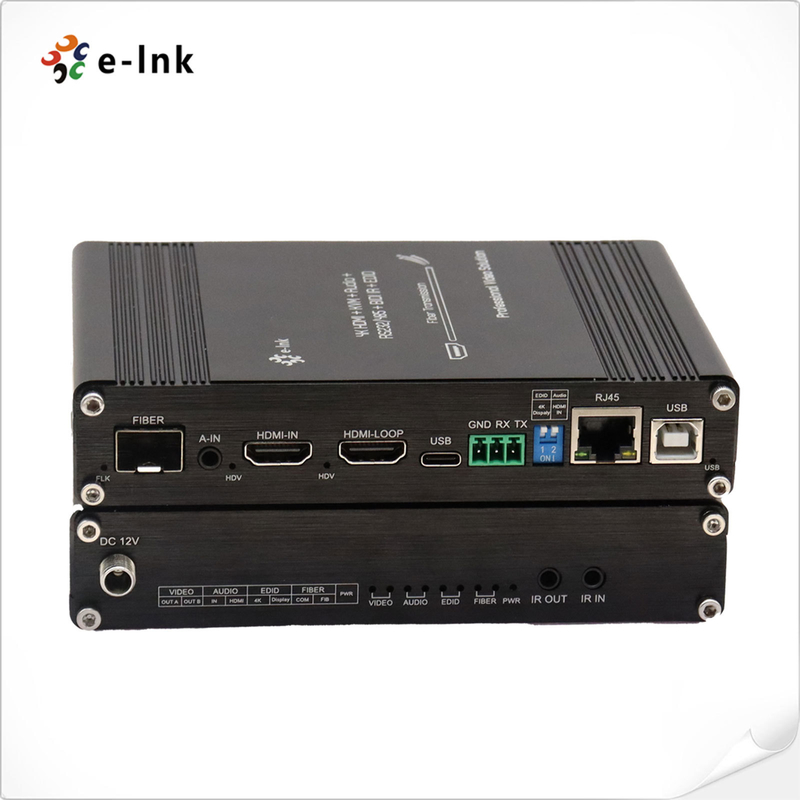

| Transmitter Interfaces |
Standards |
1 x HDMI 2.0 Input (4K@60Hz)
1 x HDMI 2.0 Loop-out (4K@60Hz)
1 x Audio Input
1 x SFP
1 x RS232/RS485
2 x IR
1 x RJ45(10/100M, TCP/ IP)
1 x USB-B
|
| Receiver Interfaces |
Standards |
2 x HDMI 2.0 Output (4K@60Hz)
1 x Audio Output
1 x SFP
1 × RS232/RS485
2 × IR
1 x RJ45(10/100M, TCP/ IP)
2 x USB-A
|
| Video Resolution |
HDMI |
SMPTE:720p|1080p12160p
VESA:800x600|1024x768|1280x720|1280x800|
1280x960|1280x1024|1400x1050|1600x1200|
1920x10801920x1200|2048x1152|2560x1600|
3840x1080|3840x2160|4096x2160
|
| Refresh Rate |
23.98/24/25/29.97/30/50/59.94/60Hz |
| Supported Standards |
HDMI |
1.3,1.4,2.0 |
| DVI |
1.0 |
| Audio |
Interface |
3.5mm Audio Interface |
| Signal type |
Operate via DIP switch,
Up for HDMI Internal Audio
Down for External Audio
|
| KVM |
Interface |
TX: 1 x USB-B
RX: 2 x USB-A
|
| latency |
Minimum latency |
| RS232/RS485 |
Interface |
Industrial terminal |
| Signal direction |
RS232 default,
RS485 optional
|
| Baud rate |
600~115200bps, 8bit, 1 stop bit, no check. |
| Data bits |
8 |
| USB-C |
Function |
Connect PC to check device info, upgrade
software and customize resolution
|
| TCP/IP |
Interface |
RJ45 |
| Data Rate |
10/100Mbps |
| Fiber |
Interface |
SFP Modules Included, LC or SC |
| Fiber type |
MMF or SMF |
| Transmission distance |
MMF 330M or SMF 20/40/60/80KM |
| Other |
Power supply |
DC 12V/1A |
| Power dissipation |
MAX 10W |
| Temperature |
Operating: -25℃ ~ +55℃
Storage: -40℃ ~ +85℃
|
| Humidity |
20% ~ 90% |
| Weight |
1kg |
| Dimension (LxWxH) |
148*115*28mm |
| The warranty |
1-year warranty |
| Work Time |
7x24 Hours |
|
Multi-functional 4K HDMI Fiber Extender Ordering Information
| Model |
Description |
| LNK-4KH-1D1U1E1A1R |
Multifunctional 4K60Hz HDMI Fiber Extender, with KVM, Audio, RS232 or RS485, 10/100M TCP/IP, IR, EDID function, MMF 330M or SMF 20/40/60/80KM, LC or SC. |
|
Multi-functional 4K HDMI Fiber Extender Application
