E- Link HDMI bidirectional audio Over Fiber Optic Extender 1 Channel Audio RS232 Data Single Mode

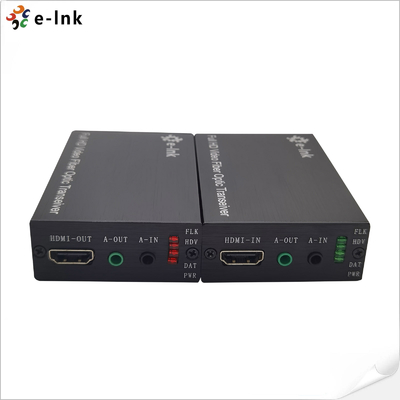

Large Image : E- Link HDMI bidirectional audio Over Fiber Optic Extender 1 Channel Audio RS232 Data Single Mode

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	RoHS,CE,FCC
Model Number:	LNK-HF100DA Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	Negotiation
Packaging Details:	HDMI Over Fiber Optic Extender Standard Export Package
Delivery Time:	5
Payment Terms:	L/C, D/A, T/T, Western Union, MoneyGram,Paypal
Supply Ability:	1000

Contact Now

Detailed Product Description

Video Standard:	HDMI1.4B 3D; HDCP1.4	Maximum Data Rate:	6.75Gbps
Connector:	Female HDMI Type A	Impedance:	100Ω
Interface:	SFP Model – LC Connector	Fiber Type:	Single-mode
Wavelength:	850nm/1310nm/1550nm	Warranty:	1 Year

1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender

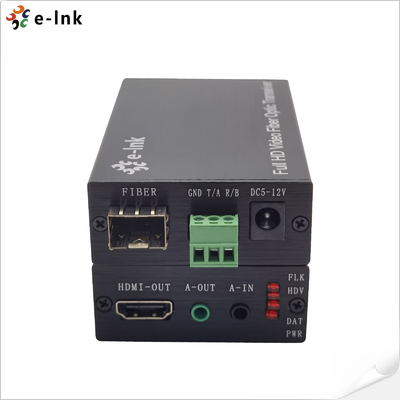

E- Link HDMI bidirectional audio Over Fiber Optic Extender 1 Channel Audio RS232 Data Single Mode 0

Overview

The LNK-HF100DA Series HDMI Fiber Optic Extender delivers seamless extension of HDMI, bidirectional

audio, and RS232 signals over a single fiber optic cable. Supporting HDMI 1.4 and MHL 2.1 dual-mode

operation, it ensures full compatibility with MHL 2.1, HDMI 1.4b, HDMI 1.4b 3D, and HDCP 1.4, while

delivering high-resolution video up to 1920×1200@60Hz.

Ideal for applications requiring long-distance, high-quality AV transmission, this extender combines

exceptional stability and robust security for reliable performance in professional and demanding

environments.

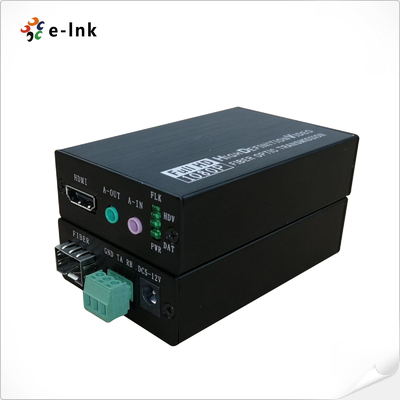

E- Link HDMI bidirectional audio Over Fiber Optic Extender 1 Channel Audio RS232 Data Single Mode 1

Technical Indexes

Parameter		Description
Video	Standards	HDMI1.4B 3D; HDCP1.4
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Compliant	1080P@50/59.95/60Hz,( Max 19201200@60Hz) 1080P@23.98/24/29.97/30Hz, 1080i@50/59.94/60/Hz, 720P@23.98/24/29.97/30Hz, 720P@50/59.94/60Hz Special support 16001200 @60HZ
	Connector	Female HDMI type A
	Impedance	100Ω
	HDMI Cable Range	<5Meter (Resolution up to 1920*1200@60Hz)
Audio	Interface	3.5MM external stereo audio
	Transmitter	1Ch Input + 1Ch Ouptut
	Receiver	1Ch Input + 1Ch Ouptut
RS232	Interface	3-Pin Terminal Block
	Baud Rate	≤115200
	Data Bits	8 bits
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	850nm/1310nm/1550nm
	Interface bandwidth	3Gbps
	Transmission distance	Transmission@1920*1200@60Hz Multi-mode fiber: <500M Single-mode fiber: 20km
IndexOther	Power supply	The power adapter: DC 5~12V
	Power dissipation	MAX 4W
	Temperature	Operating: -20℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	92 x 57 x 23 (mm)

Ordering Information

Model	Description
LNK-HF100DA	1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Multi-mode fiber, 500m, including 1 transmitter & 1 receiver, used by pairs
LNK-HF100DA-20	1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Single-mode fiber, 20km, including 1 transmitter & 1 receiver, used by pairs
