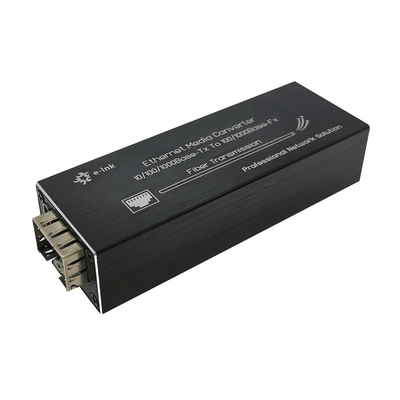

Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro SFP Media Converter Overview
The LNK-M3011-SFP is a high-performance Gigabit Media Converter designed for seamless integration of fiber optic and copper networks. Featuring 10/100/1000Mbps auto-negotiation on both electrical and optical interfaces, it ensures smooth conversion between 1000Base-T copper and 100/1000Base-X fiber optic connections while maintaining full compliance with IEEE 802.3/3u/3z/3ab standards.
This advanced converter effectively bridges electrical and optical domains, extending your network transmission capability beyond the 100-meter limitation of standard copper cabling. It offers versatile fiber connectivity options, supporting multi-mode duplex, single-mode duplex, and single-fiber bidirectional transmission to accommodate diverse infrastructure requirements across enterprise, industrial, and telecom applications.
The device incorporates intelligent power management through its USB interface, automatically entering low-power state when the host computer shuts down. This energy-conscious design, combined with robust switching architecture and hot-swappable SFP compatibility, makes it an ideal solution for expanding network coverage while optimizing power consumption in modern digital infrastructures.
Micro SFP Media Converter Features
- Ultra-Compact Form Factor
Engineered with a space-saving design, this media converter is among the smallest available. It can be discreetly positioned behind a desktop PC or within tight network cabinets, offering maximum deployment flexibility in space-constrained environments.
- Versatile Copper to Fiber Conversion
Provides seamless media conversion from 10/100/1000Base-T copper Ethernet to 100/1000Base-X fiber optic connections. This enables reliable integration of fiber backbone segments into existing copper-based network infrastructures.
- Auto-Detecting Dual-Rate SFP Interface
The SFP slot intelligently supports both 100Base-FX and 1000Base-X transceivers with automatic data rate detection. This ensures broad compatibility with various SFP modules and simplifies inventory management for diverse application needs.
- Flexible Dual Power Supply Options
Designed for high portability and versatility, it can be powered directly from a standard USB port or via an external 5~15VDC wide-range power adapter, making it suitable for both office and mobile field use.
- Lightweight Industrial Construction
Weighing under 2 ounces, the device features a durable yet lightweight aluminum enclosure that promotes efficient heat dissipation while minimizing overall weight to reduce shipping costs.
- Enhanced Large Data Frame Support
Supports jumbo frames up to 9KB in size, optimizing throughput efficiency for data-intensive applications and reducing CPU overhead during large file transfers or video streaming.
- Comprehensive Fiber Mode Compatibility
Offers flexible connectivity options by supporting a wide range of SFP transceivers, including single-mode dual fiber, multi-mode dual fiber, and single-fiber bidirectional types for various transmission distances.
- Premium Thermal Management Enclosure
The robust aluminum casing not only ensures equipment durability but also significantly enhances heat dissipation, maintaining stable performance and extending the product's operational lifespan.
- Complete Ready-to-Use Package
Includes all necessary components for immediate deployment, featuring a universal power adapter that supports international voltage standards for global application suitability.
Micro SFP Media Converter Technical Indexes
| Parameter |
Specifications |
| Access mode |
10/100/1000Mbps Gigabit Ethernet |
| Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Fiber Port |
SFP - 100/1000M adaptive |
| Wavelength |
850nm/1310nm/1550nm (Based on SFP Module used) |
| Transmission distance |
Fiber Cable: Depends on SFP Module
Category-5 twisted pairs: 100m
|
| Port |
One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs
One Optical port: SFP
|
| Conversion means |
Media conversion |
| LFP |
Not Support |
| BER |
<10-9 |
| MTBF |
100,000 hours |

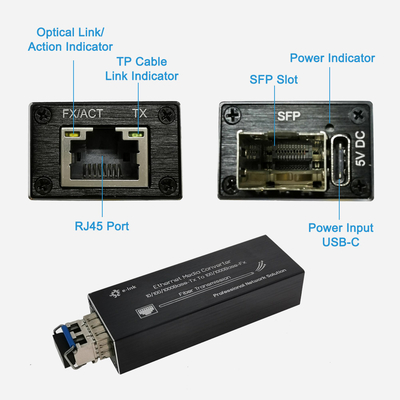

| LED indicator |
PWR (Power supply)
TX (LINK100/1000, TP cable rate 100/1000M)
FX/ACT (Optical link action /TP cable packet forwarding action)
|
| Power supply |
DC 5V (Type-C) |
| Power consumption |
<3W |
| Operating temperature |
0~45ºC |
| Operating humidity |
5%~90% |
| Maintaining temperature |
-40~70ºC |
| Maintaining humidity |
5% ~ 90% non-condensing |
| Weight |
46g |
| Dimensions (W x D x H) |
78 x 27 x 18 mm
|
Micro SFP Media Converter Ordering Information
| Item |
Description |
|
| LNK-M3011-SFP |
Micro Mini Media Converter: 10/100/1000Base-T to 100/1000Base-X, SFP slot, not including SFP module, standalone, external power adaptor |
Micro SFP Media Converter Application
The LNK-M3011-SFP Gigabit Media Converter serves as a critical Network Interface Device for seamlessly integrating Fiber Optic Backbones with Copper-Based Access Networks. Its primary function is to enable Optical-Electrical Signal Conversion, extending Network Segmentation and enhancing Data Transmission Integrity over long distances.
A key application is in Enterprise Network Uplinks, where it provides a cost-effective Fiber Optic Migration Path, connecting 1Gigabit Copper Switches to Single-Mode or Multi-Mode Fiber Cabling. This is essential for Campus Network Backbones and Inter-Building Data Links, overcoming the 100-meter limitation of CAT5e/6 cables and ensuring Low-Latency, High-Bandwidth Transport.
Furthermore, its compact and versatile design makes it ideal for Field Deployment and Remote Office Connectivity. As a compact Fiber Access Terminal, it can be easily deployed to provide Fiber to the Office (FTTO) solutions, connecting remote workstations to the central network core. The flexible powering options and support for various SFP Transceivers make it a perfect Drop-in Solution for Network Edge Expansion, Industrial IoT Gateways, and Telecom Auxiliary Equipment Access, ensuring Protocol-Agnostic Data Transport and reliable Network Edge Termination.
Micro SFP Media Converter Size
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service,
providing product consultation, remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
