Product Details:
Payment & Shipping Terms:
|
| Standards: | HDMI1.4B 3D; HDCP1.4 | Connector: | Female HDMI Type A |
|---|---|---|---|
| Optical Fiber Interface: | SFP Model – LC Connector | Operating Temperature: | -20℃ ~ +70℃ |
| Dimensions (WxDxH): | 92 X 57 X 23 (mm) | Power Dissipation: | MAX 4W |
| Highlight: | Bidirectional Stereo Audio Fiber Optic Extender,1Ch HDMI Fiber Optic Extender,1Ch RS232 Fiber Optic Extender |
||

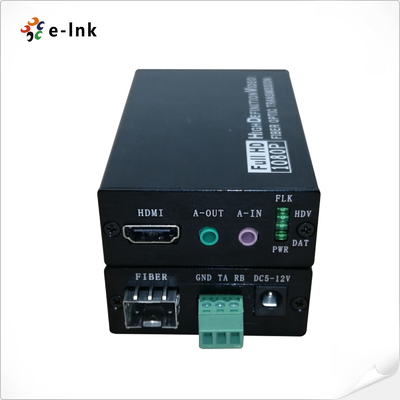

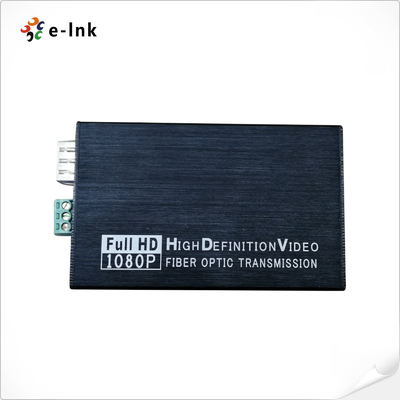

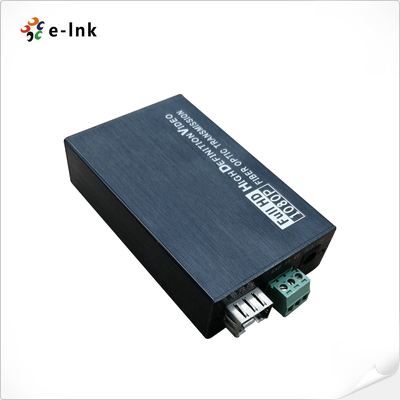

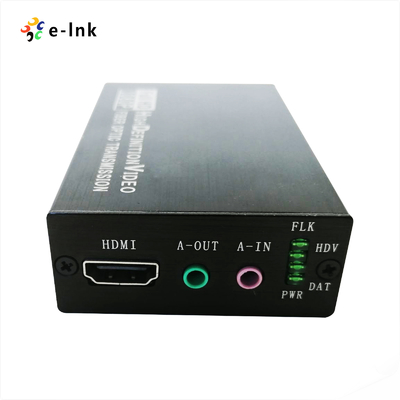

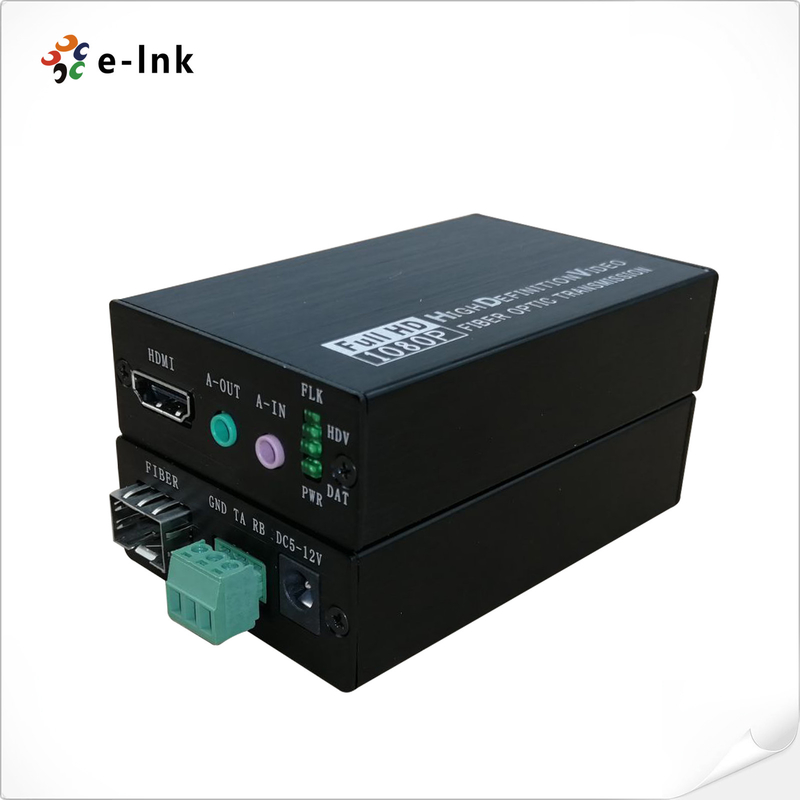

1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender
HDMI Fiber Extender Advantages
► Transmits HDMI video signals, RS232 and audio up to 20km over a single fiber cable;
► Support resolution up to 1920*1200@60Hz ;
► Special support 1600*1200 @60HZ
► Support external bidirectional stereo audio transmission;
► Compliance with HDMI 1.4B 3D and HDCP 1.2 standard;
► Single-port HDMI 1.4b receiver
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
HDMI Fiber Extender Technical Indexes
| Parameter | Description | |
|
Video
|
Standards | HDMI1.4B 3D; HDCP1.4 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Compliant |
1080P@50/59.95/60Hz,( Max 1920*1200@60Hz) 1080P@23.98/24/29.97/30Hz, Special support 1600*1200 @60HZ |
|
| Connector | Female HDMI type A | |
| Impedance | 100Ω | |
| HDMI Cable Range | <5Meter (Resolution up to 1920*1200@60Hz) | |
| Audio | Interface | 3.5MM external stereo audio |
| Transmitter | 1Ch Input + 1Ch Ouptut | |
| Receiver | 1Ch Input + 1Ch Ouptut | |
| RS232 | Interface | 3-Pin Terminal Block |
| Baud Rate | ≤115200bps | |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Single-mode | |
| Wavelength | 850nm/1310nm/1550nm | |
| Interface bandwidth | 3Gbps | |
| Transmission distance |
Transmission@1920*1200@60Hz Multi-mode fiber: <500M Single-mode fiber: 20km |
|
| IndexOther | Power supply | The power adapter: DC 5~12V |
| Power dissipation | MAX 4W | |
Industrial Ethernet Media Converter Overview
The LNK-HF100DA Series HDMI Fiber optic extender provides extension of HDMI, bidirectional audio and RS232 over one fiber optic cable, it supports HDMI1.4 mode, it is fully compatible with HDMI 1.4b, HDMI 1.4b 3D and HDCP 1.4, high resolution up to 1920*1200@60Hz. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Ordering Information
| Model | Description |
| LNK-HF100DA | 1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Multi-mode fiber, 500m, including 1 transmitter & 1 receiver, used by pairs |
| LNK-HF100DA-20 | 1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Single-mode fiber, 20km, including 1 transmitter & 1 receiver, used by pairs |
