1-Ch HDMI Video + 1-Ch 10 100M Ethernet over Fiber Extender

Name: 1-Ch HDMI Video + 1-Ch 10 100M Ethernet over Fiber Extender
Brand: E-link
SKU: LNK-HD-FE
Rating: 4.7 (127 reviews)

Large Image : 1-Ch HDMI Video + 1-Ch 10 100M Ethernet over Fiber Extender

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC
Model Number:	LNK-HD-FE

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiated
Packaging Details:	Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Fiber Module:	1310nm Single Mode Transmitter & Receiver	Fiber Connector:	SC Duplex Connector
Transmission Distance:	1080P 36bit @60Hz 20Km(Maximum)	Operating Temperature:	-5°C To 35°C(23°F To 95°F)
Dimensions (WxDxH):	TX & RX: 154x99.5x27mm	Net Weight:	Transmitter:410g, Receiver:410g
Highlight:	100M HDMI Video Extender , Ethernet over Fiber Extender

1-Ch HDMI Video + 1-Ch 10/100M Ethernet over Fiber Extender

HDMI Fiber Extender Advantages

► Automatically adapt range of input signal sampling frequency (32～100KHz)

► Provides high-resolution image quality.

►Plug-and-play operation - no programming or setup required.

►Extends 1080p HDMI signals up to 20km over a optic cable.

► Optical fiber use rules out any RF interference.

►Ethernet Pass-Through.

► Built in IR remote control.

HDMI Fiber Extender Technical Indexes

Operating Temperature	-5°C to 35°C(23°F to 95°F)
Storage Temperature	-10°C to 70°C(14°F to 158°F)
Operating Humidity	10 to 90%RH (No Condensation)
Storage Humidity	5 to 90%RH (No Condensation)
Fiber Module	1310nm Single Mode Transmitter & Receiver
Fiber Connector	SC Duplex Connector
Transmission Distance	1080P 36bit @60Hz 20Km(Maximum)
Power consumption	TX:8watts; RX:8watts((Maximum)
IR wavelength &frequency	Wavelength:940nm,frequency 38kHz
Dimension (L×W×H)	TX & RX: 154x99.5x27mm
Net Weight	Transmitter:410g, Receiver:410g,
LED Indicators	Power, Link/Act and Speed

Industrial Ethernet Media Converter Overview

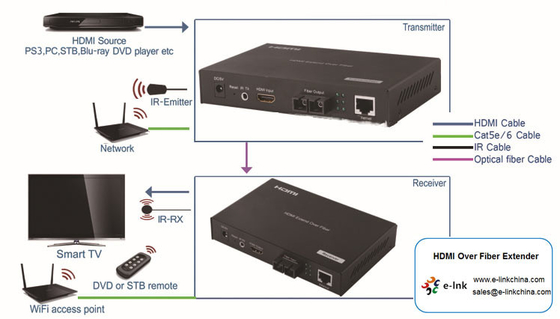

LNK-HD-FE HDMI over Fiber Extender is a high quality HDMI Extender product, extends 1080P HDMI Signal up to 20km over a single optical fiber cable, built in IR remote control, and with Ethernet pass through. It provides high resolution image quality; 1080p high definition video, let people can enjoy clear HD Video effects.

1-Ch HDMI Video + 1-Ch 10 100M Ethernet over Fiber Extender 0
