1080P HDMI KVM Fiber Optic Extender

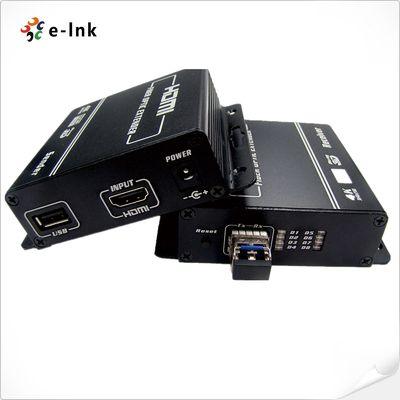

Large Image : 1080P HDMI KVM Fiber Optic Extender

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC
Model Number:	LNK-1240KVM

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiated
Packaging Details:	Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Compliance:	HDMI V1.3	Maximum Video Bit Rate:	2.25 Gbps
Optical:	1x SFP+ Port	Operating Temperature:	-32° To +122° F. (-0° To +50° C)
Dimensions (WxDxH):	89mm X 104 Mm X 28.3 Mm	Weight:	0.2KG
Highlight:	1080P HDMI KVM Extender , HDMI KVM Fiber Optic Extender , 1080P HDMI KVM Fiber Optic Extender

1080P HDMI KVM Fiber Optic Extender

HDMI Fiber Extender Advantages

► Real Time Transmission, HDCP 1.2 compliant

► Supports DVI 1.0 and HDMI v1.3

► Supports resolutions up to1920*1080/60P

► Supports 1920*1080/60P resolution with color depth up to 24 bits/pixel

► Supports HDMI bit-rates up to 2.25Gbps color, 6.75Gbps total, CEC are NOT supported!

► Support 3D TV & EDID pass-through

► Support USB Keyboard and USB Mouse

Micro Mini 4K HDMI Fiber Extender Technical Indexes

Performance
Maximum Pixel Clock Frequency	225 MHz
Maximum Video Bit Rate	2.25 Gbps
Supported Color Depth	24-bit
Supported Resolutions	1920x1080/60P
Digital Audio Support	7.1 channel LPCM, 192 kHz, 24-bit audio capability
Connections	Description
HDMI Input / Output	1x HDMI Type-A Female connector
Optical	1x SFP+ port
Cable
Fiber Cable Type / Max. Length	50/125μ OM3-300 Multi-Mode Fiber: ≤ 1,000 ft. (≤ 300 meters) 9/125μ Single Mode Fiber: ≤ 10KM
Extended function
KM Support	USB Keyboard x 1 / USB Mouse x1
CEC Support	CEC are NOT supported!
DDC Support
EDID Pass-through Support	only 300 meters
HDCP Pass-through Support	only 300 meters
Mechanical
Construction	High-impact Alufer enclosure
Dimensions (L x W x H)	89mm x 104 mm x 28.3 mm
Net Weight	200 g
Power Requirements
External AC Power Adapter	Input: 100-240VAC / 50-60Hz 0.2A Output: 5VDC, 2.0A
Power Consumption	3 watts
Warranty
Limited Warranty	2 year warranty

Industrial Ethernet Media Converter Overview

The LNK-1240KVM series is a high performance 1080P HDMI KVM Fiber Optic Extender that transmits high resolution DVI / HDMI signals over extreme distances using 2 cores fiber. This extender supports HDMI v1.3 signals with resolutions up to 1080P (1920x1080/60p) over cable distances up to 300m (Multimode Fiber) or 10km (Single Mode Fiber).

1080P HDMI KVM Fiber Optic Extender 0

Ordering Information
