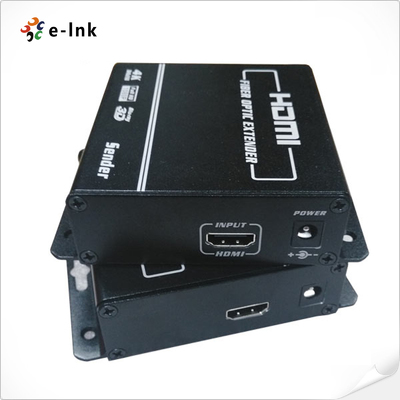

4K HDMI Fiber Optic Extender

Large Image : 4K HDMI Fiber Optic Extender

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-H4K100
Document:	2E-link Video Transmission ...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	$260-$290
Packaging Details:	Fiber Media Converter Standard Export Package
Delivery Time:	5-12 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Video Standard:	HDMI 1.4, HDCP 1.2 Compliant	Max Resolution:	3840×2160@30Hz, Supports 3D Video
Data Rate:	10.2Gbps / 340MHz Pixel Clock	Fiber Connector:	LC With SFP Module Design
Fiber Type:	MMF (300m) Or SMF (2–60km)	Operating Range:	-5°C To +70°C, 5–90% RH
Highlight:	4K HDMI Fiber Optic Extender , HDMI Fiber Optic Extender

4K HDMI Fiber Optic Extender

Industrial Ethernet Switch Advantages

► Transmits HDMI video signals up to 2km-60km over one fiber optic cable;

► Support video resolution up to 3840*2160@30Hz, 3D signal;

► Compliance with HMDI 1.4 and HDCP 1.2 standard;

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play;

Industrial Ethernet Switch Technical Indexes

Parameter		Description
Video	Standards	HDMI 1.4; HDCP 1.2
	Maximum pixel clock	340MHz
	Maximum data rate	10.2Gbps
	Resolution range	Up to 3840*2160@30Hz
	Connector	Female HDMI type A
	Impedance	100Ω
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Multi-mode / single-mode (optional)
	Wavelength	Multi-mode 850nm / Single-mode 1310nm(optional)
	Interface bandwidth	10Gbps
	Transmission distance	OM3 multi-mode fiber: maximum 300m, Single-mode fiber: standard 2km；maximum 60km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	Max 4W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	1048928mm

Industrial Ethernet Switch Overview

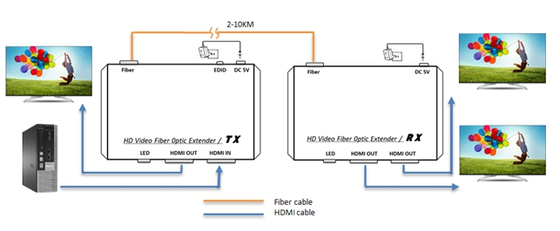

The LNK-H4K100 Fiber optic extender provides long distances extension of HDMI and 3D signals over one fiber optical cable, it supports high resolution up to 3840*2160/30P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Ordering Information

Item	Description
Item	Description
LNK-H4K100	4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Multimode, LC, 300m, including 1 transmitter & 1 receiver, used by pairs
LNK-H4K100S-10	4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Single mode, LC, 10km, including 1 transmitter & 1 receiver, used by pairs
LNK-H4K100S-40	4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Single mode, LC, 40km, including 1 transmitter & 1 receiver, used by pairs
